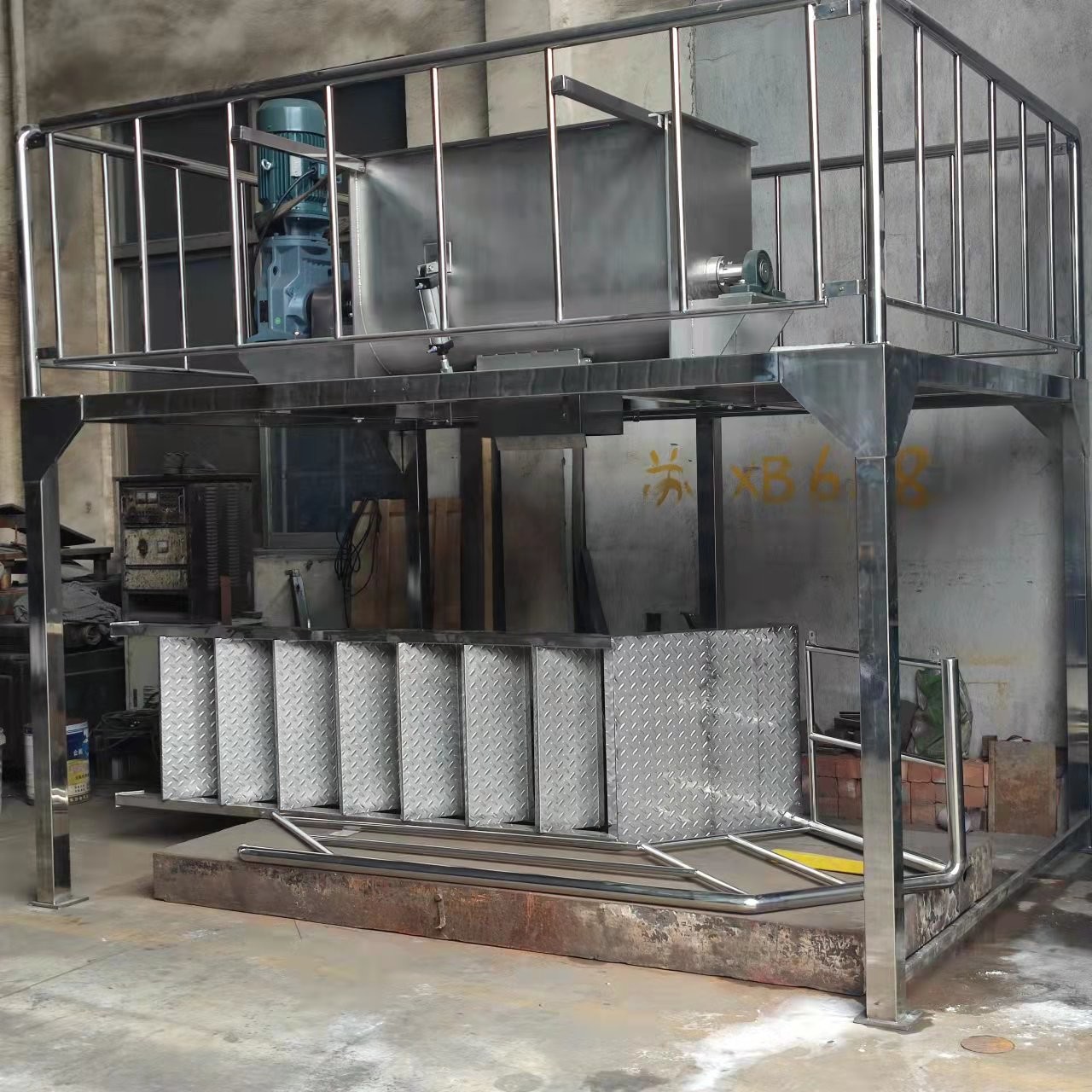

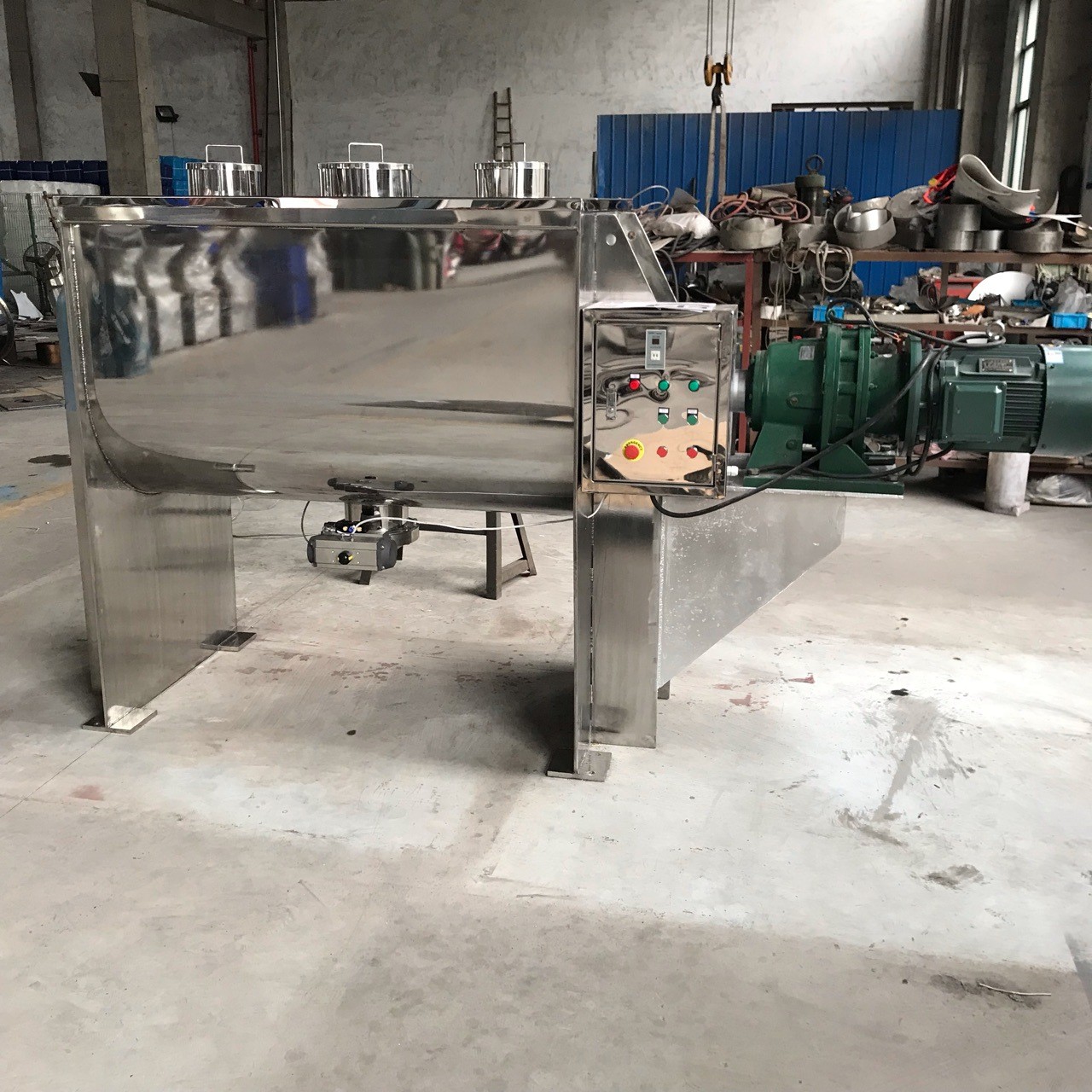

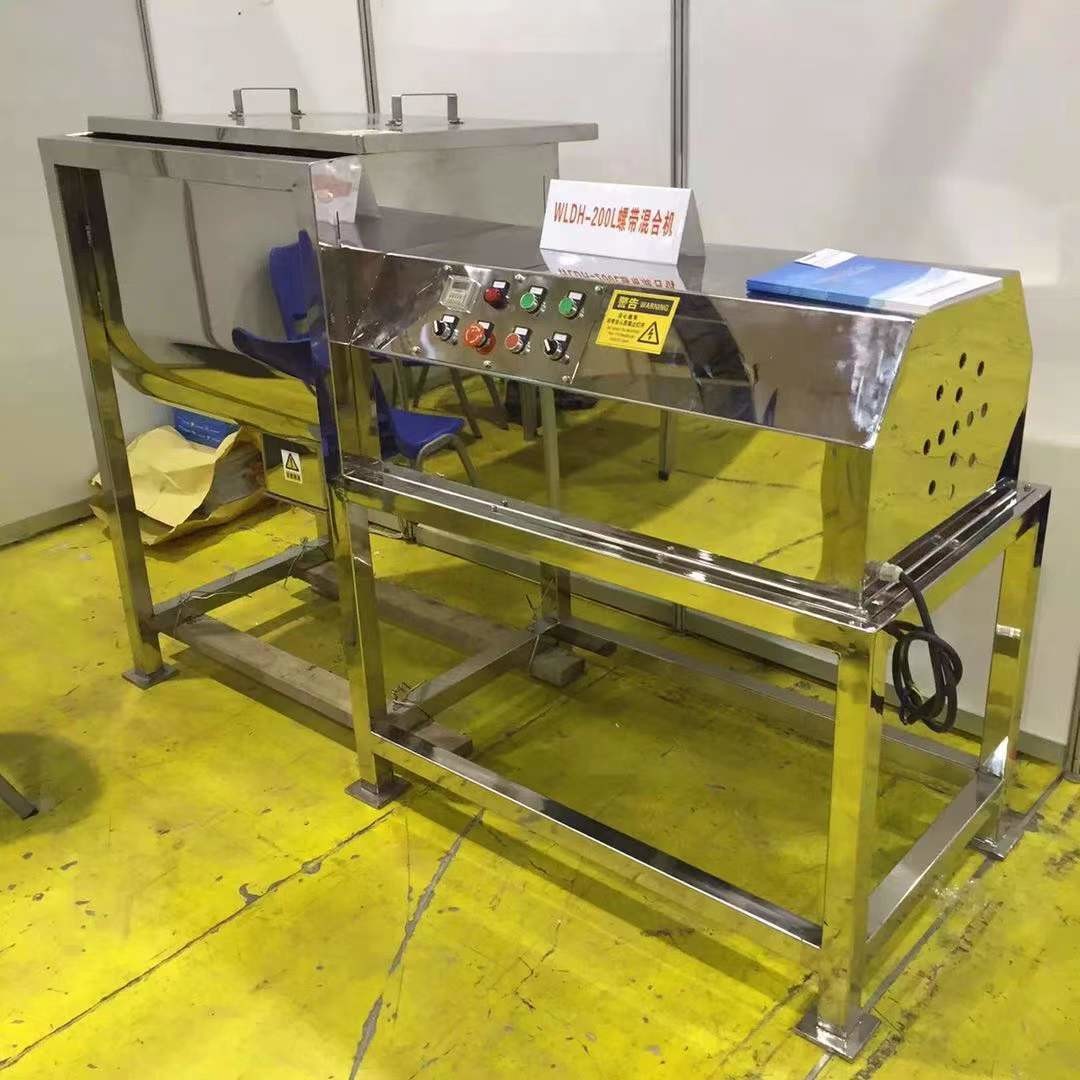

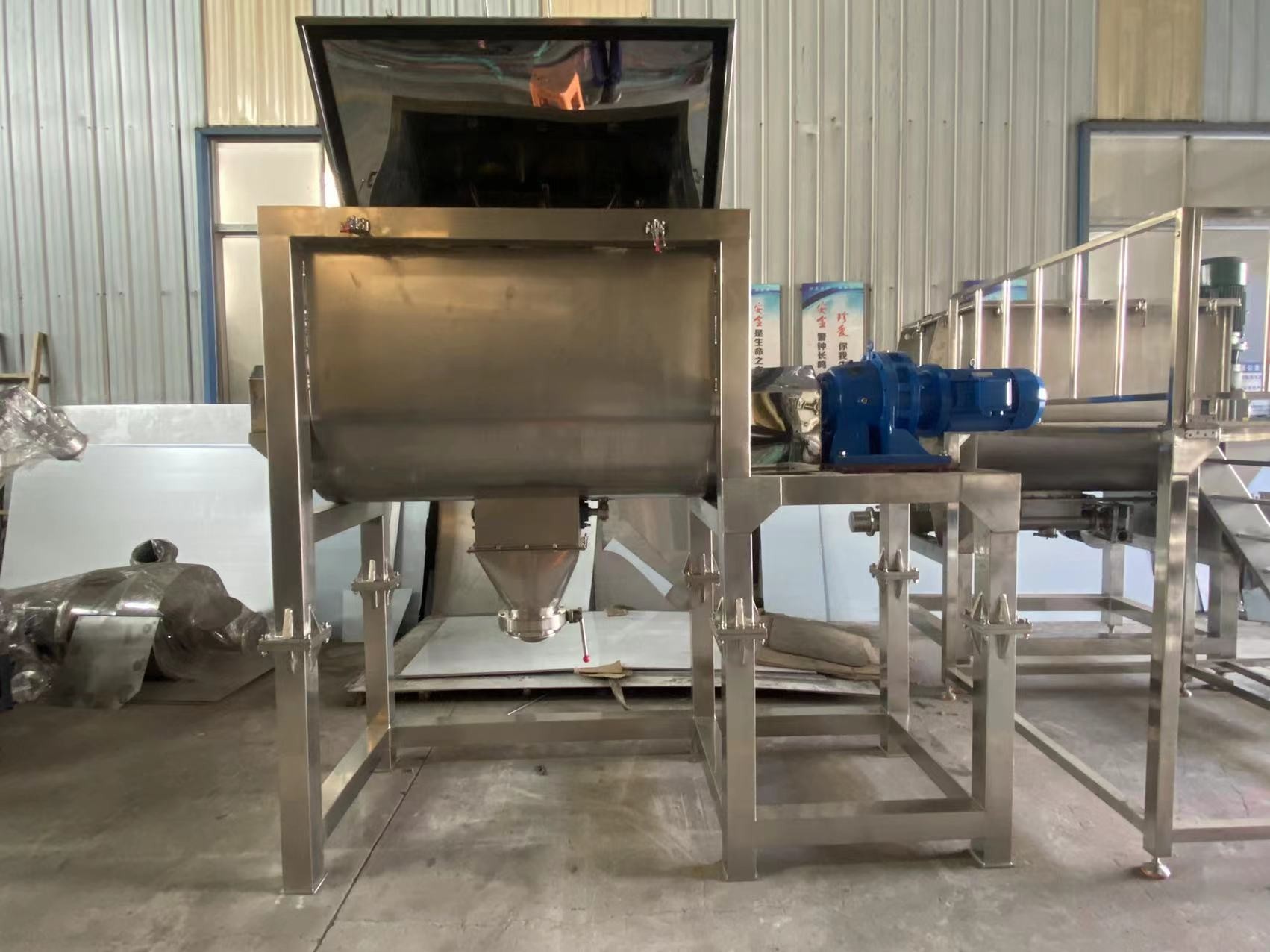

Dry Powder Granules Horizontal Ribbon Mixer 304 Double Helical Ribbon Blender

WLDH-0.5 Dry Powder Granules Horizontal Ribbon Blender Double Helical Mixer Machine

Horizontal Ribbon Mixer

Main Application :
WLDH Horizontal Ribbon Mixer is a pioneer product researched and a new high-efficiency mixer. It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc..
Working principle :
WLDH series mixer is mainly comprised of mixing barrel , spiral ribbon and driven parts. The spiral ribbon is made of two layers.That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.

Features
1. Full welding at all connection parts.
2. All 304 stainless steel, and full mirror polished inside tank.
3. Special ribbon design makes no dead angle when mixing.
4. Patent Technology on double security shaft sealing.
5. Slightly concave flap controlled by pneumatic to achieve no leakage at discharge valve.
6. Round corner with silicone ring lid design.
7. With safety interlock, safety grid and wheels.

Technical Parameters

Configuration


1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, differentmaterial can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.

2. The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3. High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4. Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5. Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.

6. Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacketsampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.

FAQ

Q: Which incoterms 2010 terms can we work?
A: Our company is a professional and sophisticated international supplier, can handle all INCOTERMS 2010 terms, and we normally work on EXW, FOB, CIF.

Q: Delivery time
A: Normally, our delivery time is 45 days after we receive the deposit. If the order is big, we need to extend the delivery time.

Q: What logistics ways we can work for shipment?
A: We can ship construction machinery by various transportation tools. Normally, we will go by sea, to main continents, for light spare parts in urgent demand, we can ship it by international courier service. Such as DHL, TNT, UPS or FedEx.

Q: Warranty time
A: We ensure one year warranty, life-long service and provides technical support free of charge within or after warranty time. Within the warranty period, we provide repair services for free.
