Product Details:
|
| Name: | Horizontal Ribbon Mixer | Voltage: | Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V |
|---|---|---|---|
| Warranty: | 1 Year | Mixer Type: | Ribbon,double Ribbon Blender |
| Application: | Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine | Product Type: | Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic |
| High Light: | Stainless Steel Horizontal Ribbon Mixer,6000L Horizontal Ribbon Mixer,CE horizontal powder mixer |
||

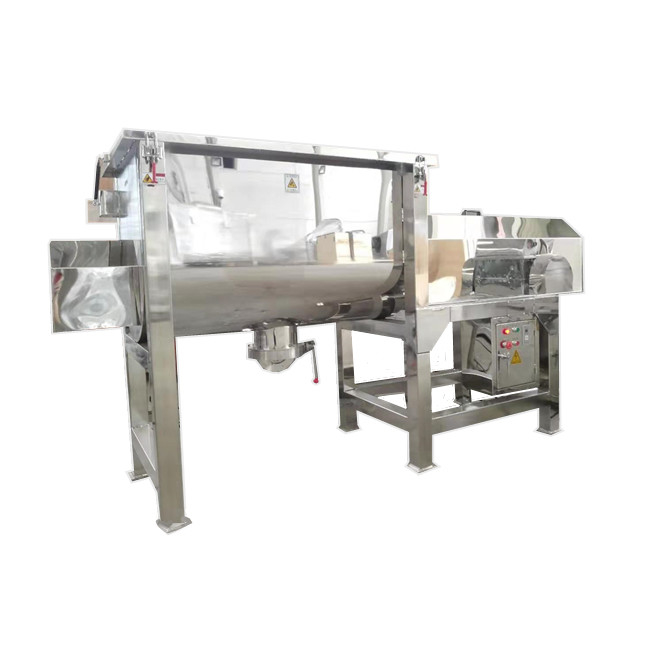

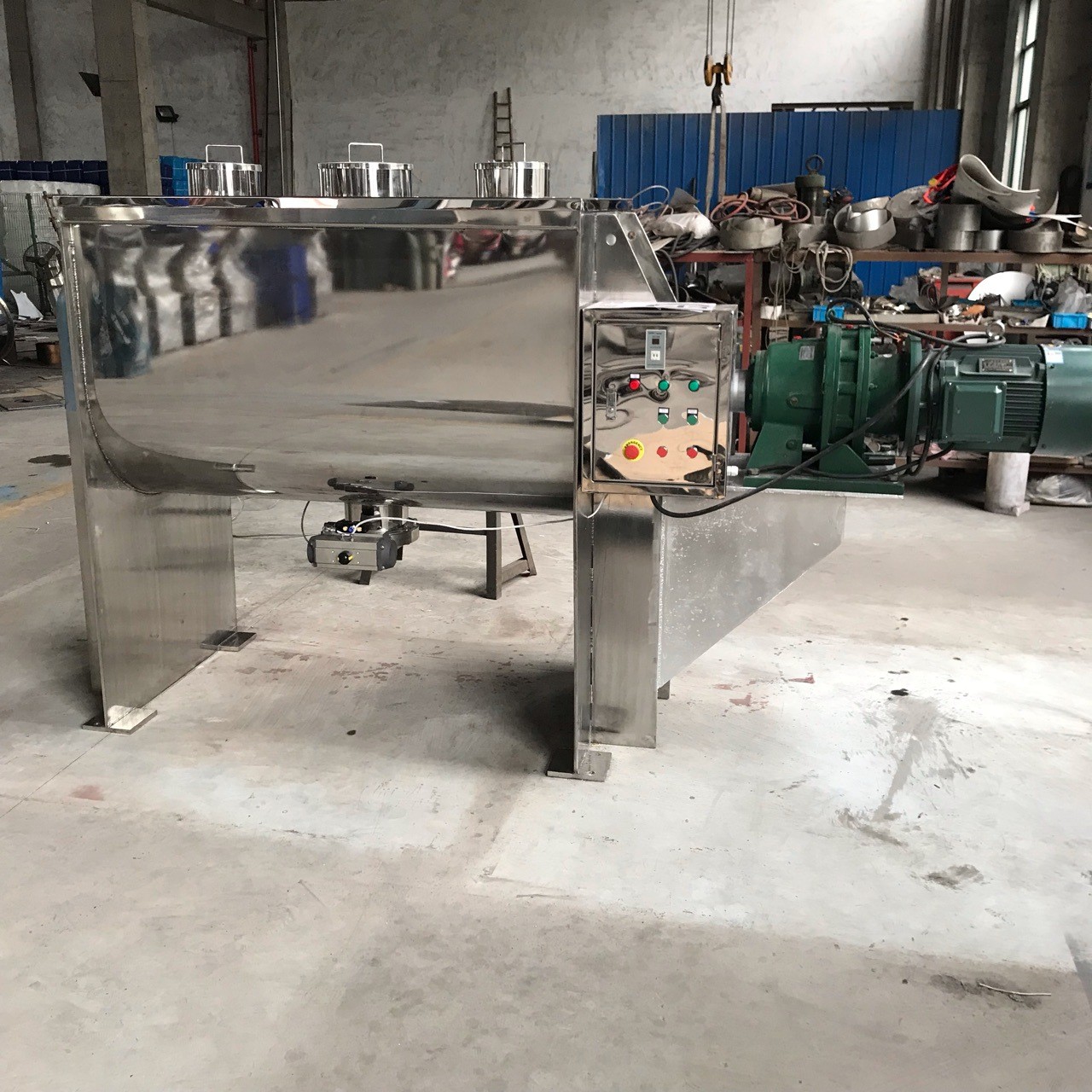

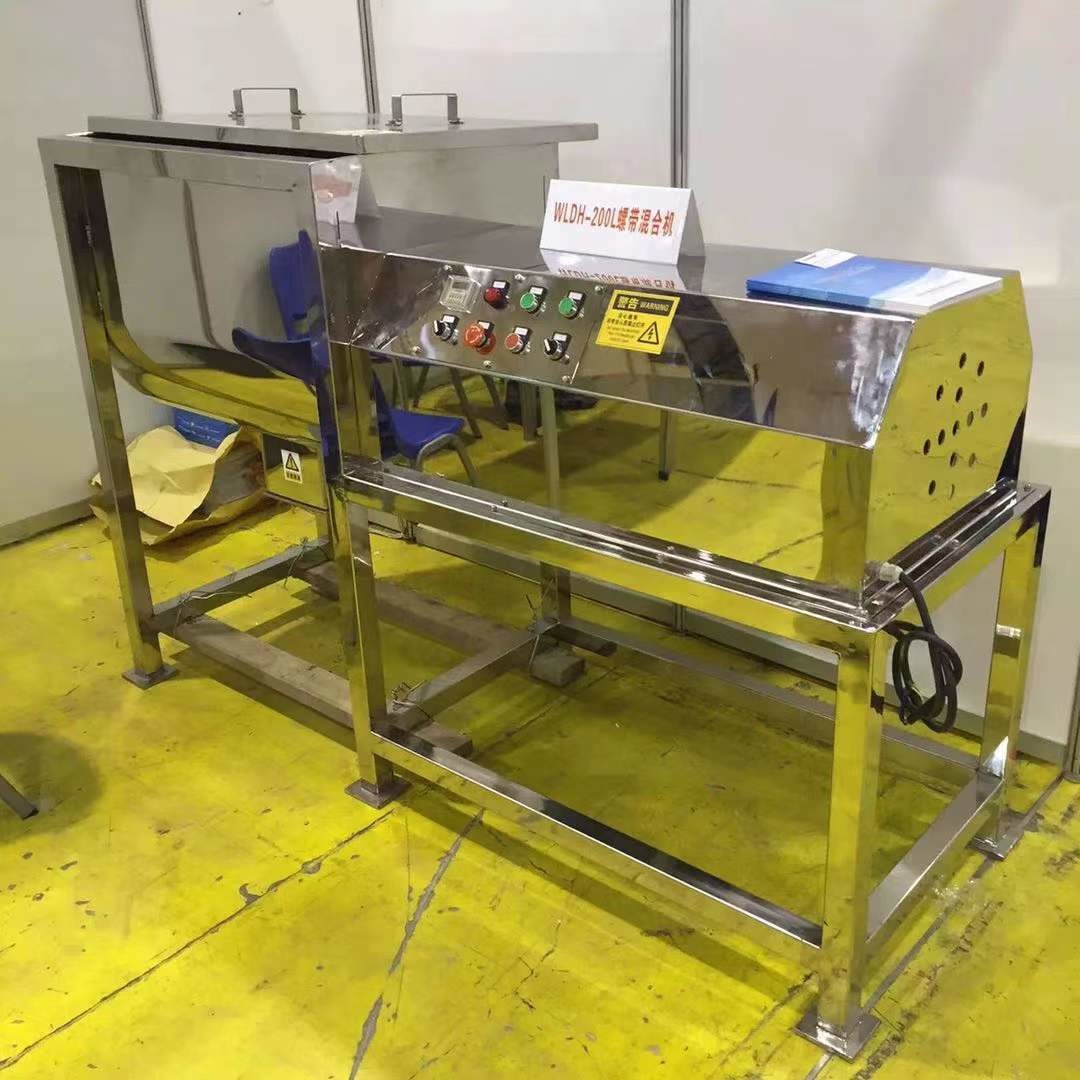

Horizontal Ribbon Blender Powder Mixing Machine Stainless Steel Mixer
Horizontal Ribbon Mixer
General Introduction:
The machine adopts horizental body, covers small area, automatic charging, easy operate, double helix structure, simple maintenance, high efficient, save both time and labor. Complete shut--up, No vibration, no noise and dust. It is very popular at home and abroad.
What's more, it can also be used in powder and paste paint putty powder mixing. it is a multi-functional dry wet amphibious mixing blender first made in China. It is suitable for building chemical, food,medicine, plastic industry and so on.
Working principle:
The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention.The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
Main Features
1. Full welding at all connection parts.
2. All 304 stainless steel, and full mirror polished inside tank.
3. Special ribbon design makes no dead angle when mixing.
4. Patent Technology on double security shaft sealing.
5. Slightly concave flap controlled by pneumatic to achieve no leakage at discharge valve.
6. Round corner with silicone ring lid design.
7. With safety interlock, safety grid and wheels.
Technical Parameters
| Model | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 |
| Capacity (kg/batch) | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
| Volume (L) |
500 | 1000 | 2000 | 3000 | 4000 | 6000 |
| Rotating (rpm) |
≤42 | ≤42 | ≤42 | ≤42 | ≤42 | ≤42 |
| Power (kW) |
5.5 | 11 | 18.5 | 22 | 30 | 37 |
| Dimension (cm) |
230*80*130 | 270*100*150 | 340*120*175 | 350*140*205 | 420*145*210 | 480*165*235 |
| Weight (kg) |
1000 | 1500 | 2300 | 3200 | 4100 | 5200 |
Specifications Configuration
1.Optional Stirrer
a.Ribbon is suitable for powder and material with closing density, and needs more force during mixing.
b.Paddle suits granule like rice, nuts, beans etc. It’s also used to mix powder with big difference in density.
2.Material
Material options SS304 and SS316L. The surface treatment of stainless steel, including coated teflon, wire drawing, polishing and mirror polishing, can be used in different ribbon blender parts.
3.Discharge Type
The ribbon blender discharge valve can be driven manually or pneumatically. Optional valves: cylinder valve, butterfly valve etc.
4.Selectable Function
Ribbon blender sometimes needs to be equipped additional functions because of customer requirements, like jacket system for heating and cooling, weighing system, dust removal system, spray system and so on.
5.Optional
a.Adjustable speed: Powder ribbon blender machine can be customized into speed adjustable by installing a frequency converter.

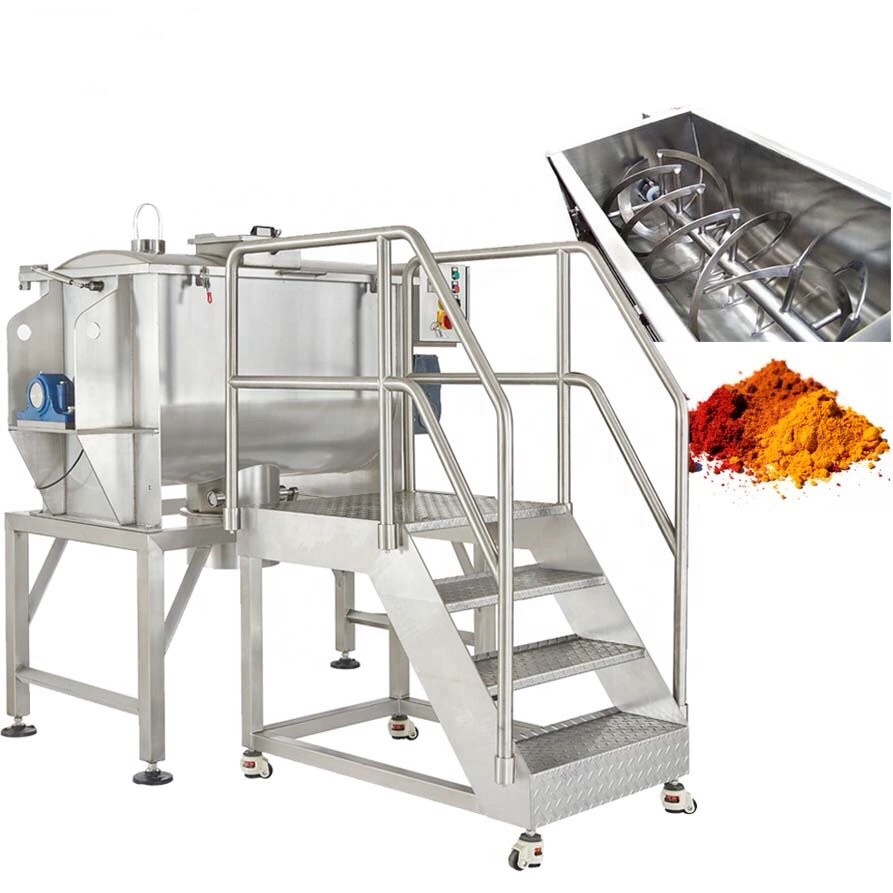

b. Loading system: In order to make the operation of industrial ribbon blender machine more convenient, stairs for small model mixer, working platform with steps for larger model mixer, or screw feeder for automatic loading are all available.
c. Production line: Double ribbon blender can works with screw conveyor, hopper and auger filler to form production lines.
Company introduction
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing and sales of various industrial drying machines, fruits & vegetables and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China.
WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high quality stainless steel with mature product design and sophisticated production technology.
Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria and South Africa, etc.
WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices and wholehearted services.
Welcome to visit us to start the cooperation!
FAR
Q:How to choose a suitable model for myself? Pl supply the following information,we will help you choose a suitable model for you.
A:1.what's the mixing material?
2.how's the material's density(Kg/m3) and moisture(%)?
3.what's the capacity per batch?
4.What's the mixer machine materials?
5.If you need CIF price,pl tell me your destination port?
Q:Are you a manufacturer or trading company?
A:We are a manufacturer.
Q:How is the payment term?
A:Usually,the payment term is 50% T/T advance payment,balalnce 50% by T/T before shipment.But L/C and other payment term can be accepted after negotiation.
Q:How long is the warranty?
A:The warranty is 12 month.
