Product Details:
|
Name: | Universal Crusher | Function: | Grinding Material |
---|---|---|---|
Capacity: | 60-150kg/h | Feature: | High Efficiency |
Color: | Silver | Fineness: | 2-120 Mesh |
MOQ: | 1 Set | Warranty: | 1Year |
High Light: | Pharmaceutical Stainless Steel Pulverizer,150kg/h Stainless Steel Pulverizer Machine,High Efficiency pharmaceutical pulverizer |

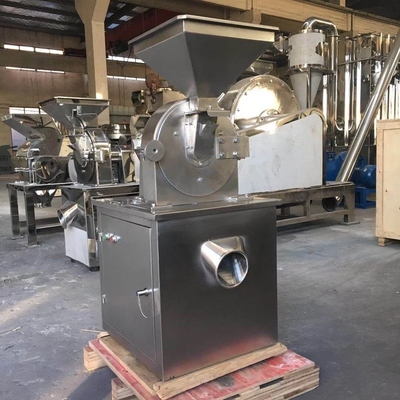

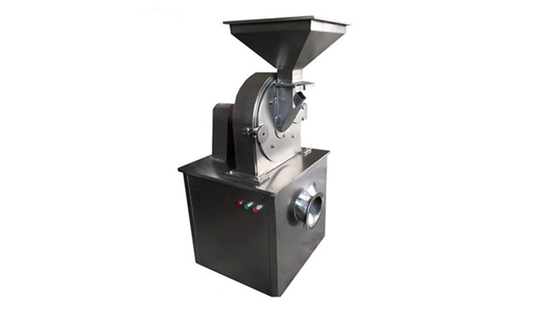

Stainless Steel High Efficiency Pulverizer Machine Can Crush the Pharmaceutical
Universal Crusher

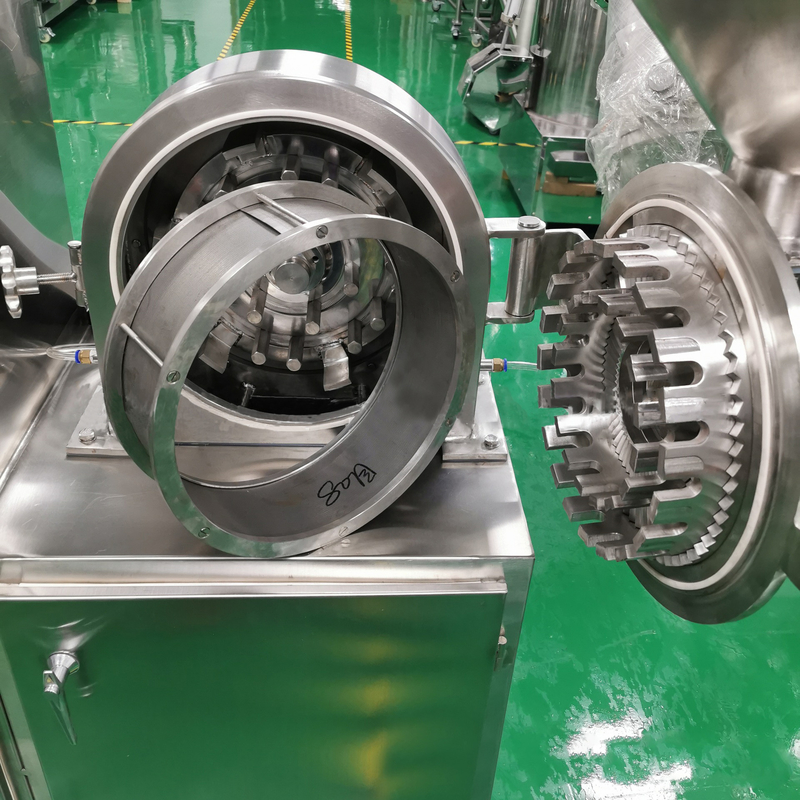

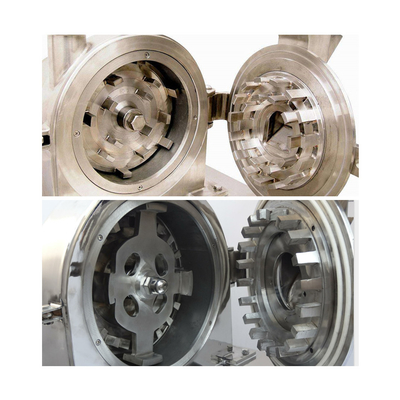

WKS-20B series universal crusher is suitable for pharmaceutical, chemical, food, and other products. Processing hard materials, including Chinese herbal spice etc. This machine utilizes the relative movement between the high-speed movable gear plate and the fixed gear plate, so that the crushed materials can be crushed by the comprehensive effects of tooth impact, shear and friction, and material collision with each other. At meanwhile the grinding chamber put the finished product outflow together from the sieve and discharge. All the parts which contact the material are made of stainless steel with better anti-corrosion performance, the inner wall and outside shell of machine is processed specially to reach the point that the surface is smooth, so the production can meet the requirements indicated in industrial standard. It has the advantages of smooth running, convenient dismounting and cleaning, low noise and good grinding effect.
Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
Weight (kg) | 180 | 260 | 360 | 450 | 550 |
Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
Henan Workers Machinery Co., Ltd. is an innovative enterprise integrated with technology research, manufacture and trade. Our enterprise is professional in making machine which are widely used in crushing , mixing and drying. We are also specialized in the design and manufacture of other related supporting products.
FAQ
Q: What factors I need to get a quotation?
A: Material size, productive capacity and grinding size is recommended. Voltage & Frequency(Hz) is also needed for a precise quotation.
Q: What is the real delivery time of your factory?
A: Finished products will be transported immediately after payment, meanwhile, customized products would need 10 to 30 working days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How do your after-sale service work if the product got damaged?
A: If the parts are damaged during the warranty period, you can contact us in time to learn more about the damaged parts. If a replacement part is available, we will mail the matching part, but the shipping cost of the post will be borne by the yourself. If there is a need, we must go to the local area to check, and the cost of going there is all borne by yourself.
