Product Details:
|
Name: | Universal Crusher | Function: | Grinding Material |
---|---|---|---|
Capacity: | 100-300kg/h | Feature: | High Efficiency |
Color: | Silver | Fineness: | 2-120 Mesh |
MOQ: | 1 Set | Warranty: | 1Year |
High Light: | Easy Operate Spice Grinding Machine,Spice Grinding Machine For Home Business,300kg/h stainless steel spice grinder |

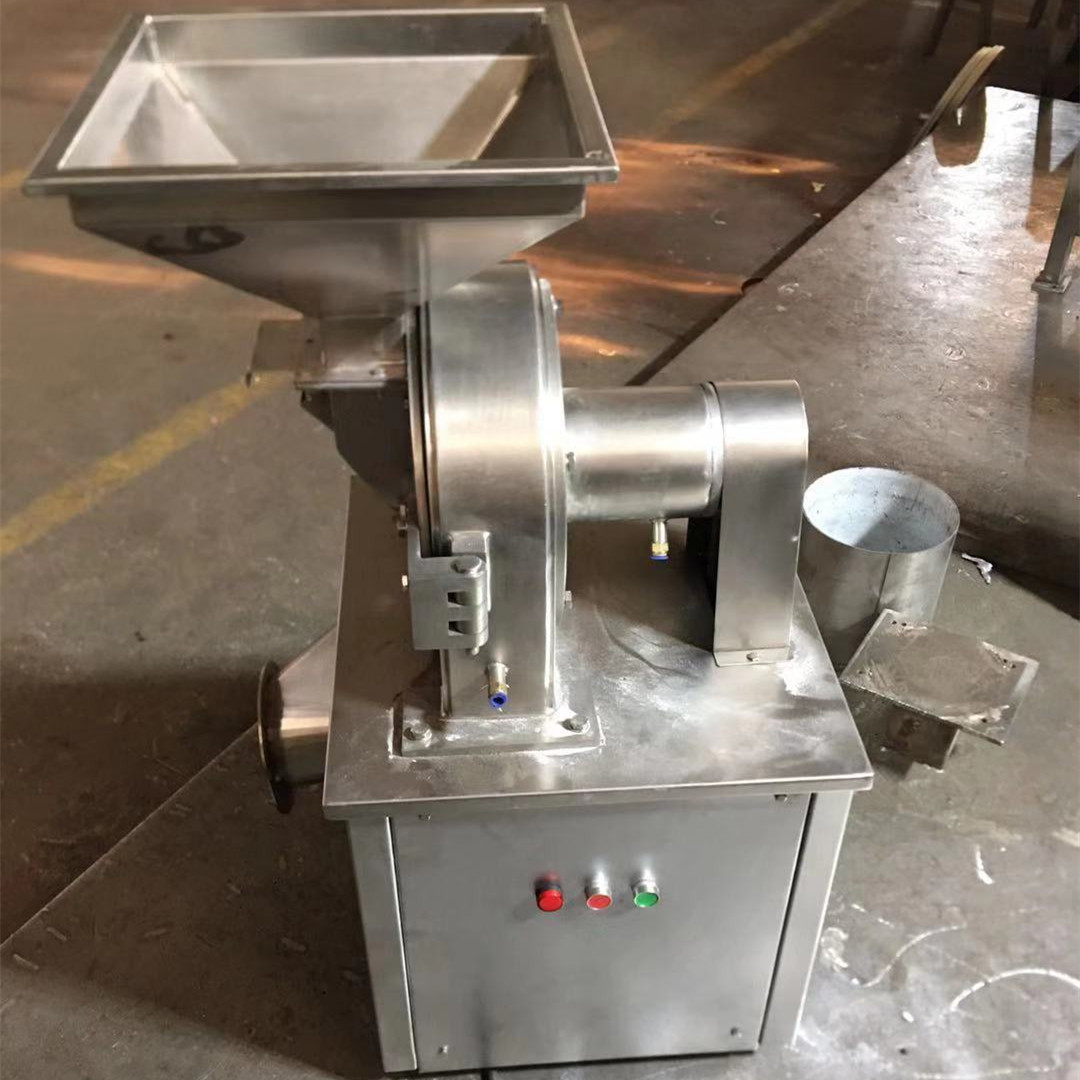

Stainless Steel Simple And Easy-To-Operate Universal Crusher For Spice
Universal Crusher
The crusher mill machine is widely used in pharmaceutical, food, chemical, it can crush various of material. The machine is made up of feeding material part and crush part, and dust collect part. Its construction is very briefness, all the parts which contact the material are made of stainless steel. Our universal crushers use the relative motion between movable and fixed chain disc, the raw materials to be crushed undertakes the comprehensive action, such as impacted by teeth, friction, impacted between raw materials, finally, the raw materials to be crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw materials can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be through exchanging screen with different mesh. It overcomes the shortcomings existed in the old machines such as roughness, accumulated power. The machine made of good quality stainless steel, meet GMP standard.
Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
Weight (kg) | 180 | 260 | 360 | 450 | 550 |
Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
Our service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
4. we also can provide training service which help opeators handle the machine well.
