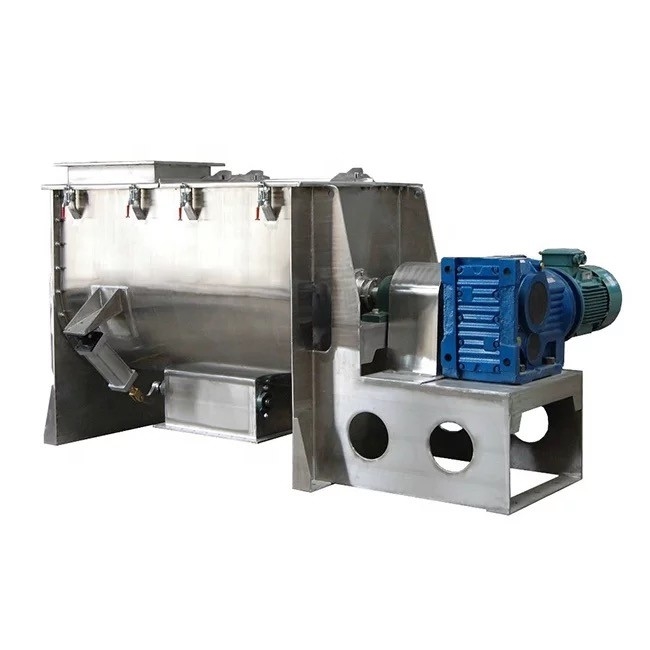

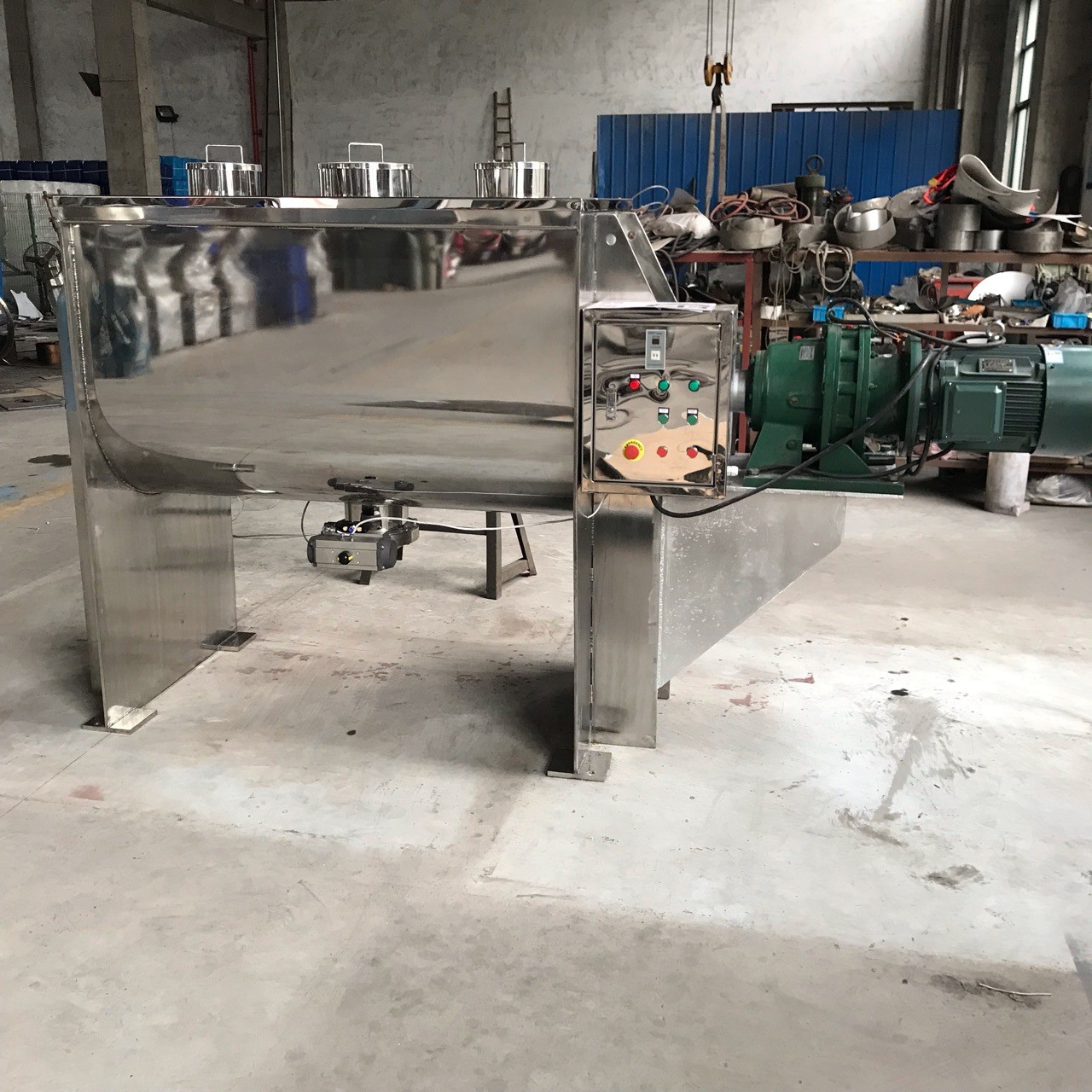

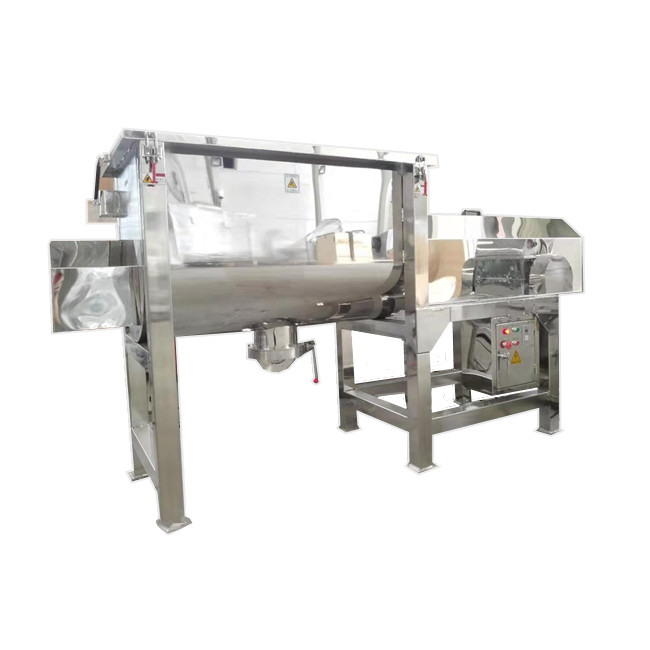

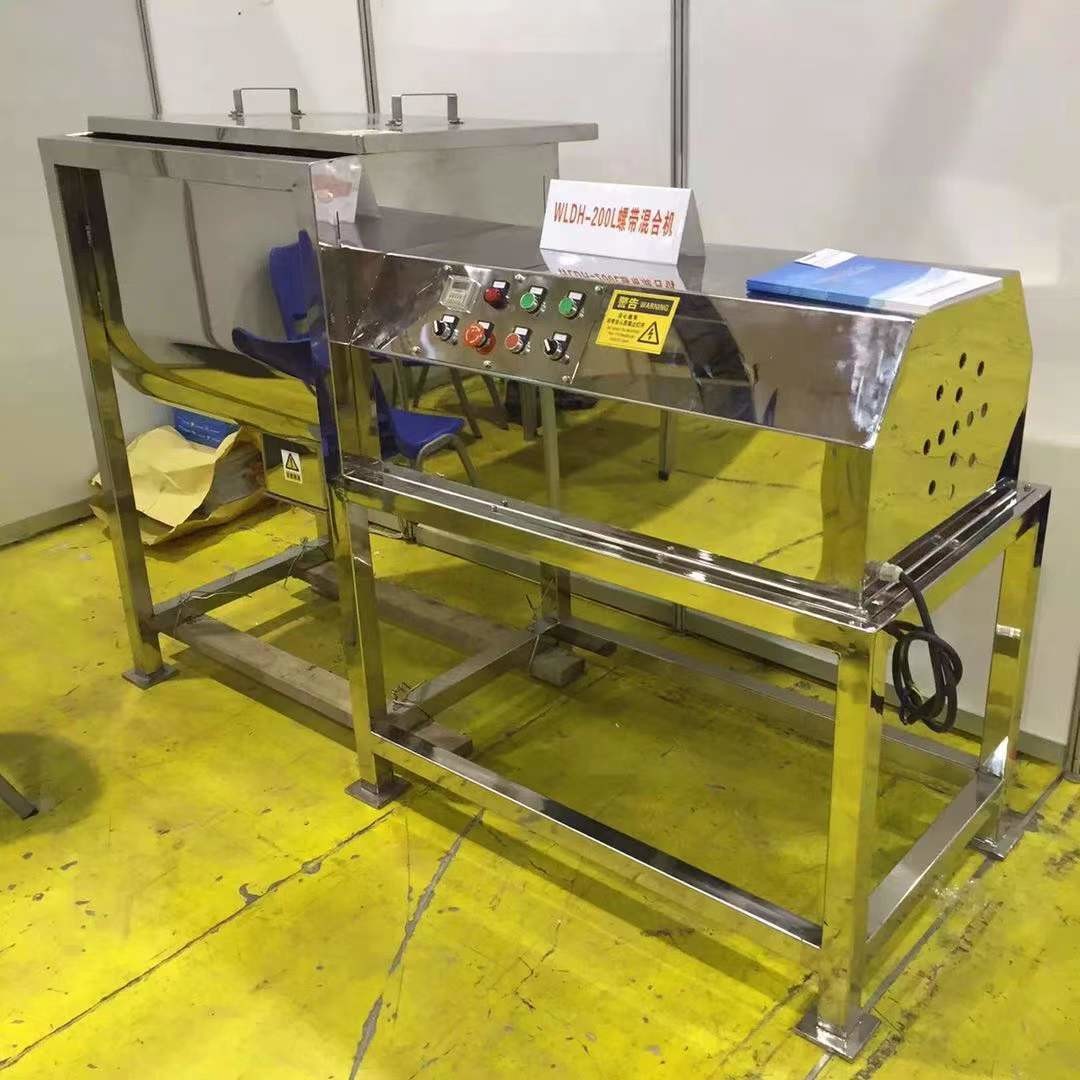

ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine

ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine
ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine
ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine

Large Image :  ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine

Product Details:
Place of Origin: China
Brand Name: WKS
Certification: CE
Model Number: WLDH-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: 10-30 Working Day
Payment Terms: T/T
Supply Ability: 10 Set per Month

ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine

Description
Name: Horizontal Ribbon Mixer Voltage: Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V
Capacity: 500 Kg/batch Mixer Type: Ribbon,double Ribbon Blender
Application: Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine Product Type: Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic
Rotating: 42rpm Weight: 1500kg
High Light:

ODM 1000L Horizontal Ribbon Mixer

,

Horizontal Ribbon Mixer 500kg / Batch

,

500kg / Batch Seasoning Blender Machine

1000L Ribbon Blender Powder Mixer Seasoning Powder Horizontal Ribbon Mixer



Horizontal Ribbon Mixer



General Introduction:

Ribbon Mixer consists of horizontal U shape mixing vessel, drive system and ribbon agitator. The mixing element is combined with inner and outer double helical ribbon agitator. The outer ribbon moves materials into center direction and inner ribbon moves the materials in opposition direction to shape radially and laterally movement. Finally,the material will be discharged at center discharge valve. Ribbon Blender is an efficient and versatile blending machine for mixing of dry granules powders homogeneously .Various materials can be mixed in ribbon mixer through a gentle way, especially in food material mixing. Furthermore, high speed chopper is also available to break some lumps during blending process.The cylinder cover can be made into arch or fully open. The arch can bear pressure. The fully open type is convenient to clean the interior of the equipment. The advantages of this machine are wide application range, high mixing uniformity, short mixing time and large loading coefficient.



Technical Parameters



Model WLDH-0.5 WLDH-1 WLDH-2 WLDH-3 WLDH-4 WLDH-6
Capacity (kg/batch) 250 500 1000 1500 2000 3000
Volume
(L)
500 1000 2000 3000 4000 6000
Rotating
(rpm)
≤42 ≤42 ≤42 ≤42 ≤42 ≤42
Power
(kW)
5.5 11 18.5 22 30 37
Dimension
(cm)
230*80*130 270*100*150 340*120*175 350*140*205 420*145*210 480*165*235
Weight
(kg)
1000 1500 2300 3200 4100 5200



ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine 0

ODM 1000L Horizontal Ribbon Mixer 500kg / Batch Seasoning Blender Machine 1

Using Range
Widely used in chemical industry, medicine, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder,health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials,rare earth, plastic glass, new materials, nuclear materials and other industries.



Main Features

1. Full welding at all connection parts.
2. All 304 stainless steel, and full mirror polished inside tank.
3. Special ribbon design makes no dead angle when mixing.
4. Patent Technology on double security shaft sealing.
5. Slightly concave flap controlled by pneumatic to achieve no leakage at discharge valve.
6. Round corner with silicone ring lid design.
7. With safety interlock, safety grid and wheels.



Specifications Configuration

1. Optional Stirrer

a. Ribbon is suitable for powder and material with closing density, and needs more force during mixing.

b. Paddle suits granule like rice, nuts, beans etc. It’s also used to mix powder with big difference in density.



2. Material

Material options SS304 and SS316L. The surface treatment of stainless steel, including coated teflon, wire drawing, polishing and mirror polishing, can be used in different ribbon blender parts.



3. Discharge Type

The ribbon blender discharge valve can be driven manually or pneumatically. Optional valves: cylinder valve, butterfly valve etc.



4. Selectable Function

Ribbon blender sometimes needs to be equipped additional functions because of customer requirements, like jacket system for heating and cooling, weighing system, dust removal system, spray system and so on.



5. Optional

a. Adjustable speed: Powder ribbon blender machine can be customized into speed adjustable by installing a frequency converter.

b. Loading system: In order to make the operation of industrial ribbon blender machine more convenient, stairs for small model mixer, working platform with steps for larger model mixer, or screw feeder for automatic loading are all available.

c. Production line: Double ribbon blender can works with screw conveyor, hopper and auger filler to form production lines.





FAQ

Q: Are you real factory or trading company?

A: Yes ! We are real and most reliable factory here. Welcome you visit us anytime!



Q: What machine your company have? Can customized machine upon my needs?

A: Yes, we also produce crusher, grinder, mixer, dryer, packaging, vibrating sifter, conveyor, etc. We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.



Q: Can you give me guide on other machine? To full my production line.

A: Yes ! Our company have build more than 10 years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!


Q: What's your before & after service?

1) Professional advice and rich experience help to choose machine.

2) Longtime maintainance and considerate technical support

3) Technicians can be sent to abroad to install.

5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).

4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.

5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.



Q: What's your shipping item process?

A: We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need , we can help you do custom clearance .



Q: Packaging Details:

1) Outside package: Standard export wooden packaging.
2) Inner package: Stretch film.



Q: Delivery Details:

A: Machine will be finished in about 25 workdays after payment.



Q: How about your payment term?

A: Normally we can work on T/T , 50% down payment is required in advanced. And 50% balance shall be settled before shipment.
