Multi Purpose Spice Grinding Machines Professional Grinder Masala Machine

Basic Properties
Place of Origin: CHINA
Brand Name: WKS
Certification: CE
Model Number: WKS-20B
Trading Properties
Minimum Order Quantity: 1Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10Sets Per Month
Product Summary
High Efficiency Easy Operate Adjustable Mesh Profesional Spice Grinding Machines Universal Crusher This WKS-20B series universal pulverizer is mainly suitable for the pulverization of brittle materials such as medicine, chemical industry, food, pesticide etc., and has a wide range of uses. The ...

Product Details

Highlight:

multi purpose spice grinding machine

,

150kg/h commercial grinder for spices

,

Professional Grinder Masala Machine

Name: Universal Crusher
Function: Grinding Material
Capacity: 60-150kg/h
Feature: High Efficiency
Color: Silver
Fineness: 2-120 Mesh
MOQ: 1 Set
Warranty: 1Year
Product Description

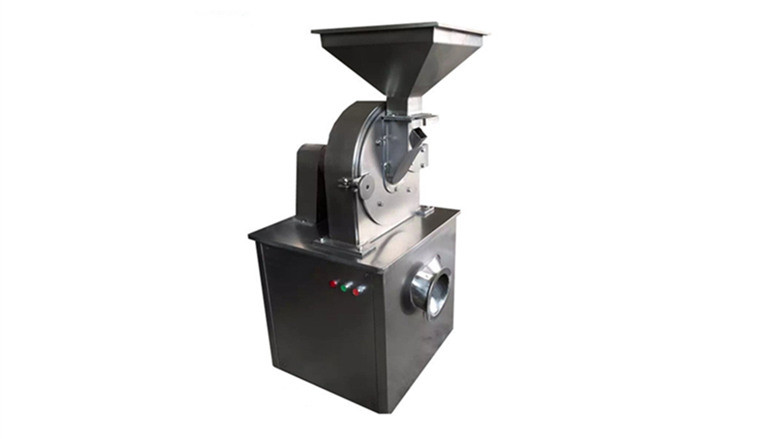

High Efficiency Easy Operate Adjustable Mesh Profesional Spice Grinding Machines



Universal Crusher



This WKS-20B series universal pulverizer is mainly suitable for the pulverization of brittle materials such as medicine, chemical industry, food, pesticide etc., and has a wide range of uses. The crushing fineness of the crushed material can be determined according to the size of the screen, and the appropriate screen can also be customized according to customer needs. In addition, different models of universal pulverizers have different production capacities, and models with different production capacities can be selected according to the needs of customers themselves. This WKS-20B universal pulverizer can pulverize materials 60-150 kg per hour. This machine has simple structure, stable operation, low noise and good crushing effect. The crushed materials are directly discharged from the crushing chamber. The particle size can be achieved by selecting screens with different apertures. In addition, the machine is all stainless steel. The inner wall of the casing is all machined to achieve a smooth surface, which has changed the rough and powder accumulation on the inner wall of the previous models, and made the production of medicines, foods, and chemicals more in line with national standards.





Since it features a simple structure, firm and stable operation and good crushing effect,
the crushed material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures.
Besides, the whole machine is made of stainless steel.


The inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
As a result, the production of sugar can better conform to the state standard and the GMP requirement.



Technical Parameters



Model WKS-20B WKS-30B WKS-40B WKS-50B WKS-60B
Capacity (kg/h) 60-150 100-300 160-800 200-1000 300-1500
Shaft speed (r/min) 4500 3800 3400 3200 2800
Fineness size (mesh) 2-120 2-120 2-120 2-120 2-120
Motor power (kW) 4 5.5 7.5 11 15
Weight (kg) 180 260 360 450 550
Dimension (mm) 550*600*1250 600*700*1450 750*800*1550 800*850*1600 1000*900*1680



Multi Purpose Spice Grinding Machines Professional Grinder Masala Machine 0

Multi Purpose Spice Grinding Machines Professional Grinder Masala Machine 1



FAQ


Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, skilled workers and strict quality control system can ensure every machine with best working performance.



Q: How could I trust your promise?
A: First of all, you can check our website address on Ali International Station, and then we also have some product videos that your local customers have successfully purchased. If it is convenient for you, welcome to visit our factory in China.
