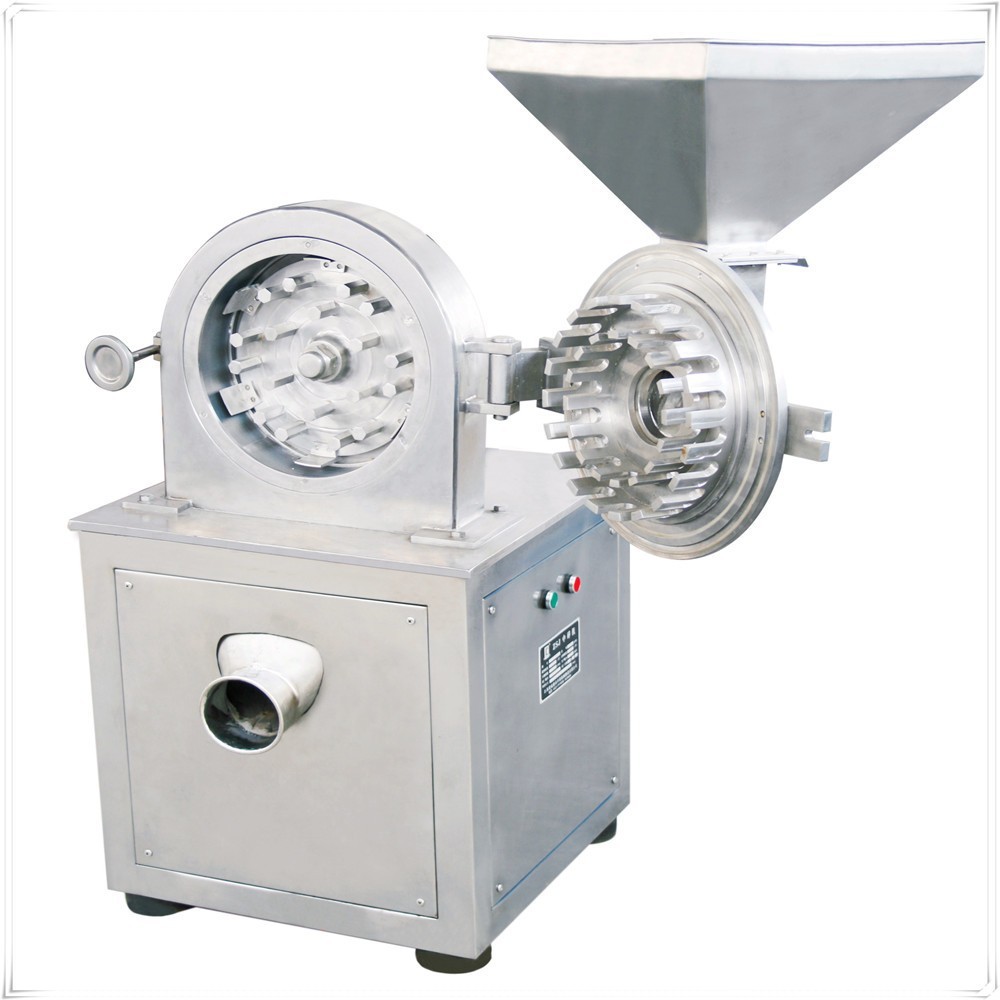

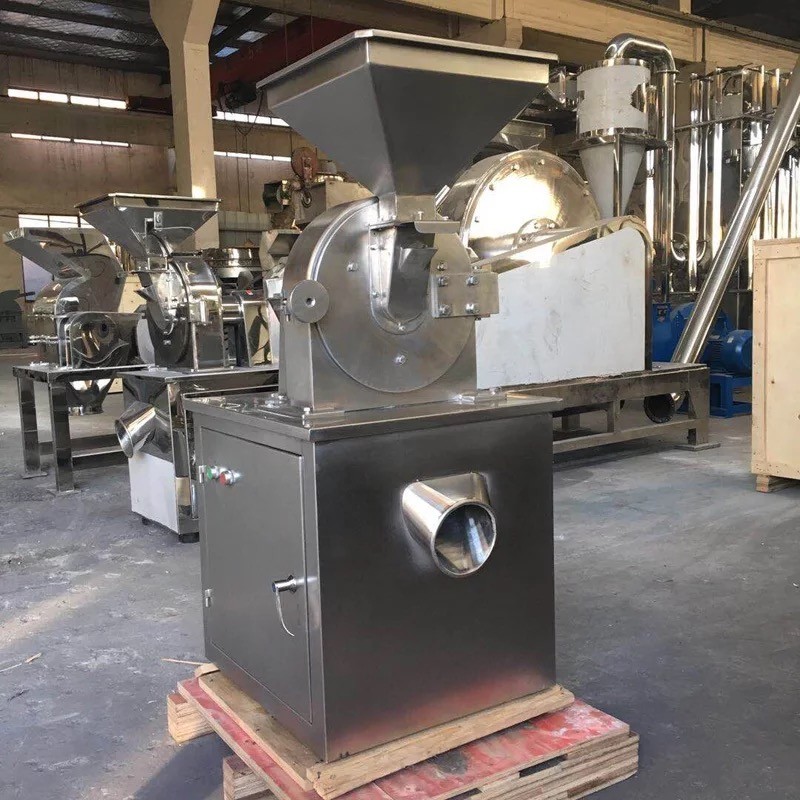

GMP 100-300kg/H Universal Crusher Energy Saving Adjustable Mesh Food Pulverizer

Basic Properties
Place of Origin: CHINA
Brand Name: xiaoli
Certification: CE
Model Number: WKS-30B
Trading Properties
Minimum Order Quantity: 1Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10Sets Per Month
Product Summary
Easy To Control Pulverizer with Adjustable Mesh Energy Saving High Efficiency Universal Crusher This food universal crusher uses the relative movement between the active of fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the ...

Product Details

Highlight:

GMP 300kg/H Universal Crusher

,

GMP 100kg/H Universal Crusher

,

Adjustable Mesh Food Pulverizer

Name: Universal Crusher
Function: Grinding Material
Capacity: 100-300kg/h
Feature: High Efficiency
Color: Silver
Fineness: 2-120 Mesh
MOQ: 1 Set
Warranty: 1Year
Product Description

Easy To Control Pulverizer with Adjustable Mesh Energy Saving High Efficiency



Universal Crusher

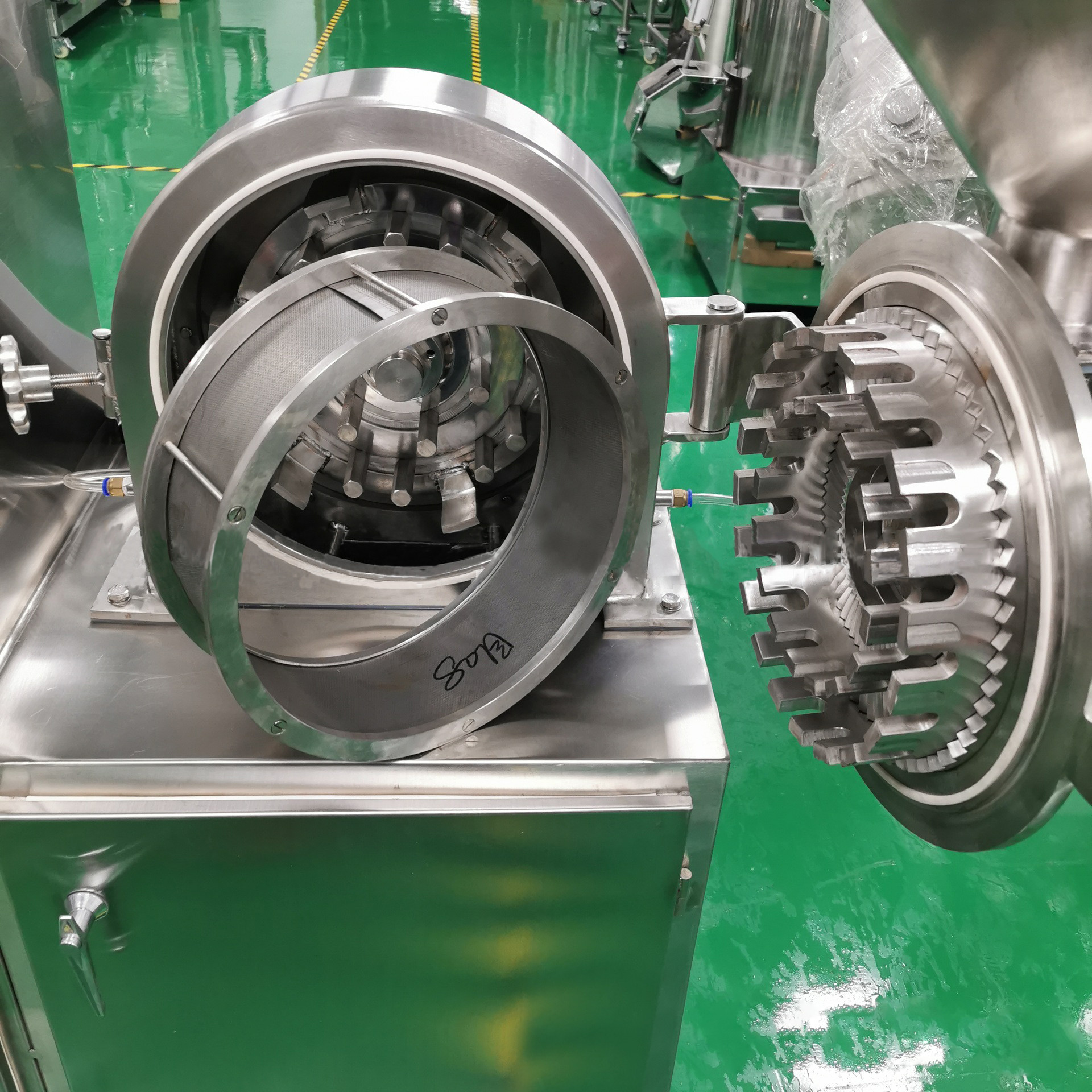

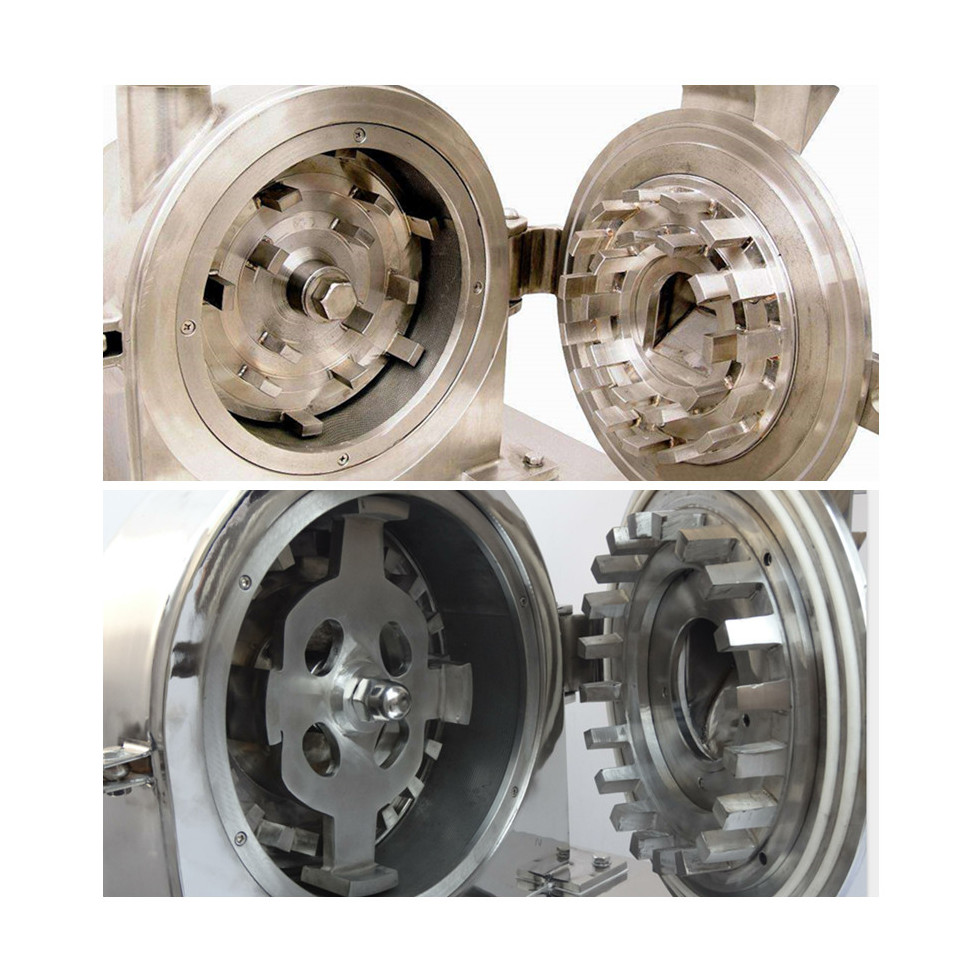

This food universal crusher uses the relative movement between the active of fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the collection box by the centrifugal force. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to "GMP" standard, is made of stainless steel, thus to avoid dust flying, improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level. Food universal grinding machine has a simple structure design for long lasting, stable, low noise, high performance and easy maintenance. The fixed and movable knives revolve in a high speed in the chamber. Materials will then flow out from the bottom exit. The fineness is adjustable by adopting various sift.



Technical Parameters



Model WKS-20B WKS-30B WKS-40B WKS-50B WKS-60B
Capacity (kg/h) 60-150 100-300 160-800 200-1000 300-1500
Shaft speed (r/min) 4500 3800 3400 3200 2800
Fineness size (mesh) 2-120 2-120 2-120 2-120 2-120
Motor power (kW) 4 5.5 7.5 11 15
Weight (kg) 180 260 360 450 550
Dimension (mm) 550*600*1250 600*700*1450 750*800*1550 800*850*1600 1000*900*1680



GMP 100-300kg/H Universal Crusher Energy Saving Adjustable Mesh Food Pulverizer 0

Henan Workers Machinery Co., Ltd, is a company mainly engaged in drying equipment, granulating equipment and crushing equipment as well as packaging equipment. The company's products are mainly exported to foreign countries. The factory is located in Jiangsu province which is close to Shanghai city, and Shanghai has a comfortable environment and convenient transportation access. Our goods are shipped from Shanghai port. In addition to exporting the existing fixed model products, we can also accept the production of customized products according to customer requirements. We have over ten years extensive experience in design and production, we have more than 10 years’ research and manufacturing experiences, and more than 30 engineers from different technical background with many years of rich research and manufacturing experiences. We strictly execute the National Quality Standard and our products meet GMP standard.



We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE. Our company also has a lot of top talent which have more than 15 years of work experience, including research, design, manufacture and after sale service. Our products sell to all of the world (such as South America, North America, Europe etc.) and also have the good cooperation with the foreign client and vendor. We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
