350*140*205cm Spice Blending Machine Dry Food Powder Mixing Machine

Food Powder Pellet Mixing Spice Powder Mixer Ribbon Blender Dry Powder Mixing Machine​

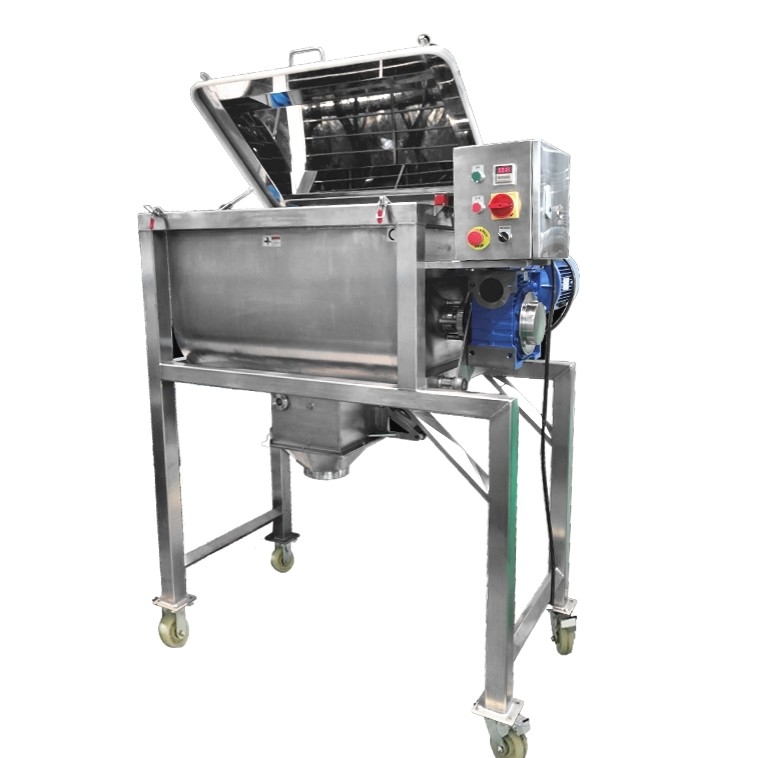

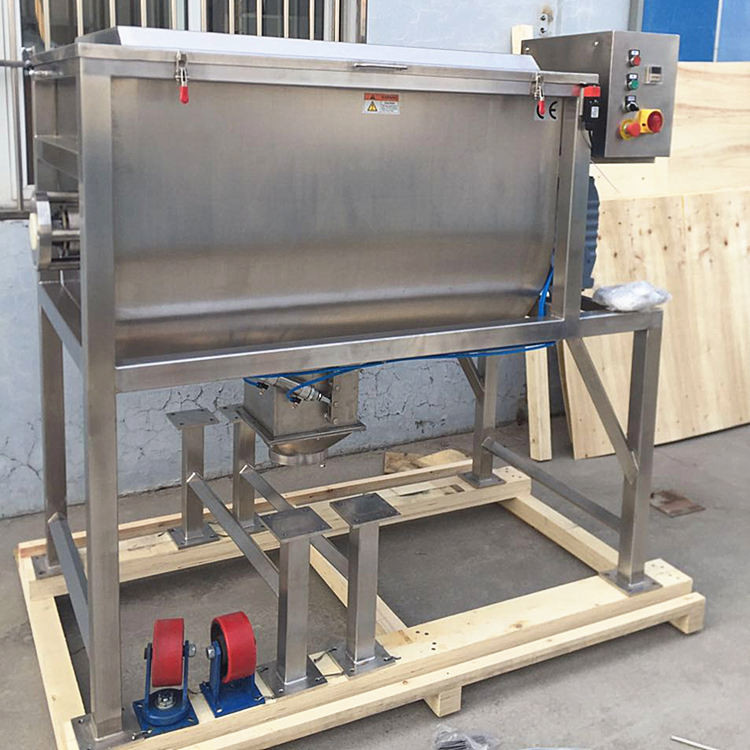

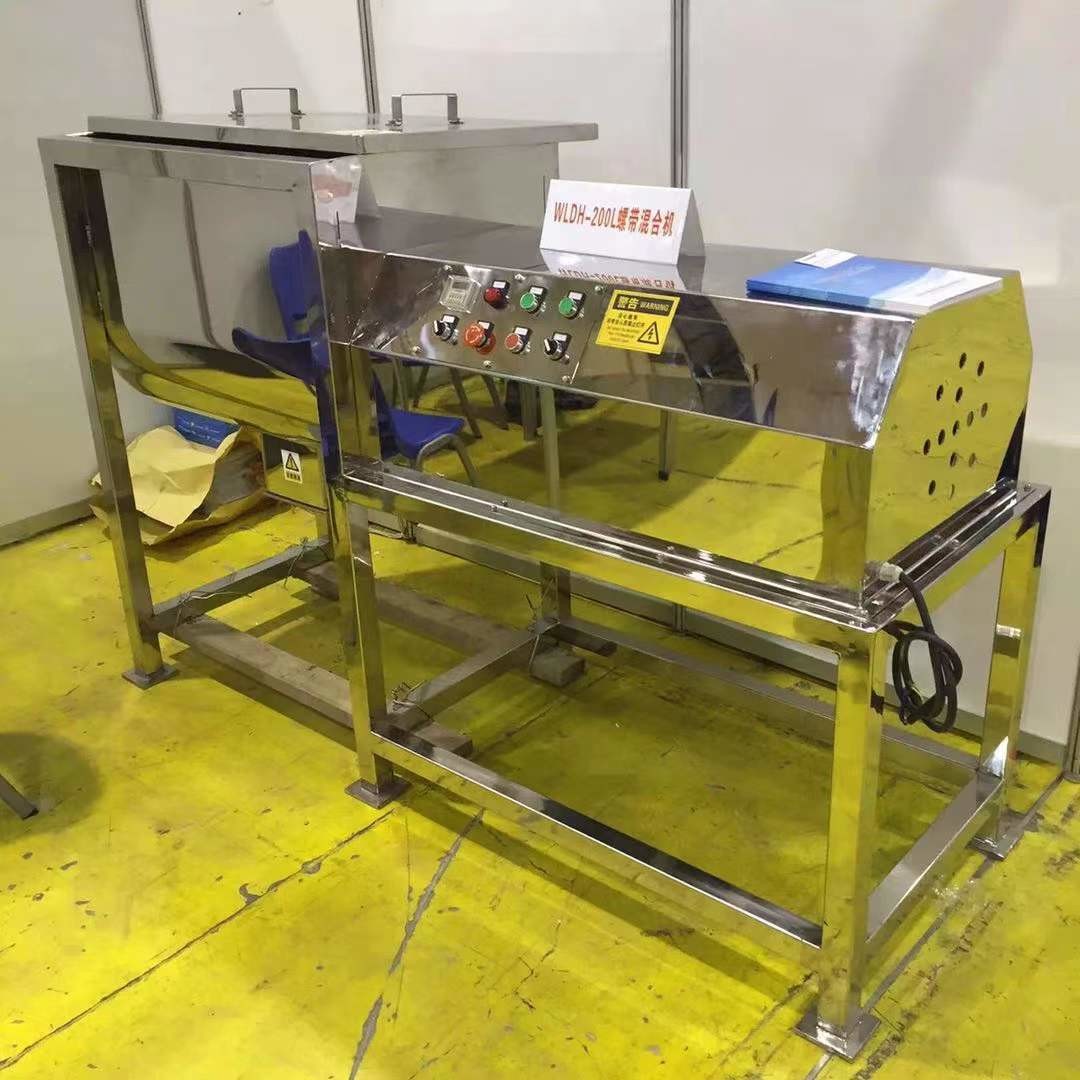

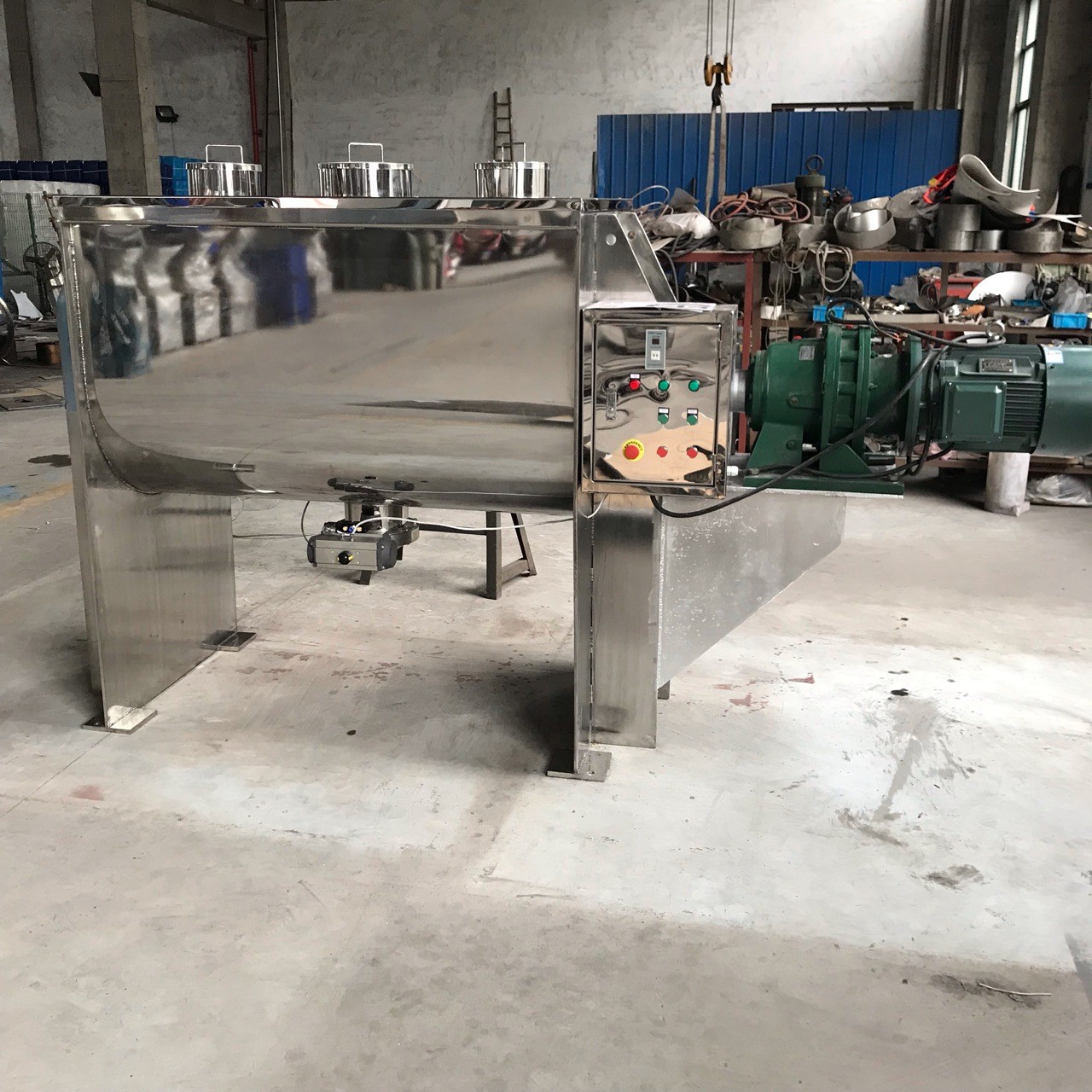

Horizontal Ribbon Mixer

Introduction

Ribbon Mixer consists of horizontal U shape mixing vessel, drive system and ribbon agitator. The mixing element is combined with inner and outer double helical ribbon agitator. The outer ribbon moves materials into center direction and inner ribbon moves the materials in opposition direction to shape radially and laterally movement. Finally,the material will be discharged at center discharge valve. Ribbon Blender is an efficient and versatile blending machine for mixing of dry granules powders homogeneously .Various materials can be mixed in ribbon mixer through a gentle way, especially in food material mixing. Furthermore, high speed chopper is also available to break some lumps during blending process.The cylinder cover can be made into arch or fully open. The arch can bear pressure. The fully open type is convenient to clean the interior of the equipment. The advantages of this machine are wide application range, high mixing uniformity, short mixing time and large loading coefficient.

Technical Parameters

Using Range
Widely used in chemical industry, medicine, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder,health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials,rare earth, plastic glass, new materials, nuclear materials and other industries.

Main Features

1) Horizontal tank body, need small space but more capacity.
2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3) Gear box drive the auger shaft , low noise and low malfunction, long using life.
4) U-Shape tank bottom, better for material discharge and cleaning.
5) Pneumatic cylinder to control the discharge exit.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
6) Heating,cooling function can be realized.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
7) Customized ribbon blender available. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating.

Specifications Configuration

1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, differentmaterial can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.

2. The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3. High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4. Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5. Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.

6. Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacketsampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.

FAQ

Special Notice:

In order to quota you the right horizontal ribbon mixer / ribbon mixer / horizontal ribbon blender with best price, we would like to get the following information include in your inquiry:

1. What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.

2. What is the capacity per hour you need (kg/h)?

3. Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?

4. Provide us your country’s electricity information, such as phases, voltage, HZ?

5. Other special requirements?
