Product Details:
|
Name: | Horizontal Ribbon Mixer | Voltage: | Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V |
---|---|---|---|
Power: | 22KW | Mixer Type: | Ribbon,double Ribbon Blender |
Application: | Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine | Product Type: | Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic |
Weight: | 3200kg | OEM ODM: | YES |
High Light: | Horizontal Industrial Spiral Mixer,3200kg Industrial Spiral Mixer,Screw Blade Ribbon Mixing Machine |
Horizontal Spiral Powder Mixer Screw Blade Ribbon Mixing Machine

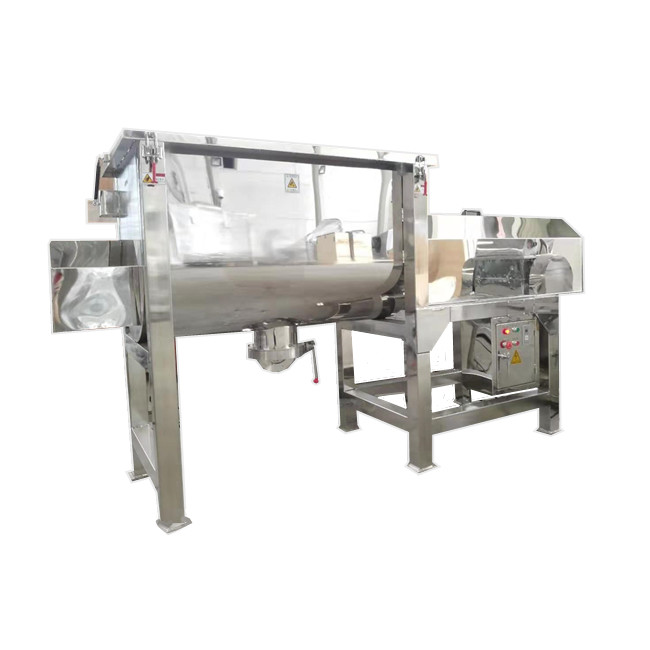

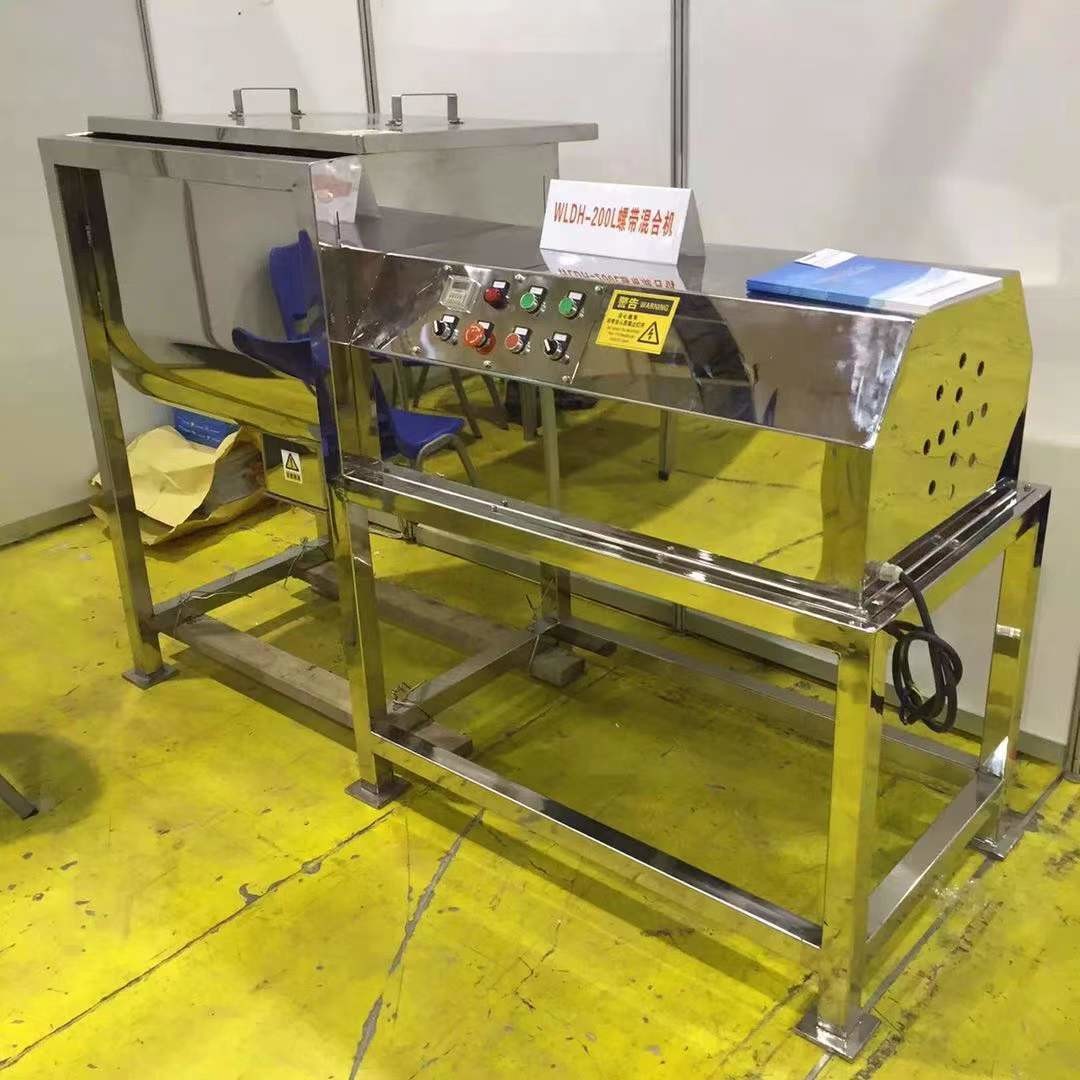

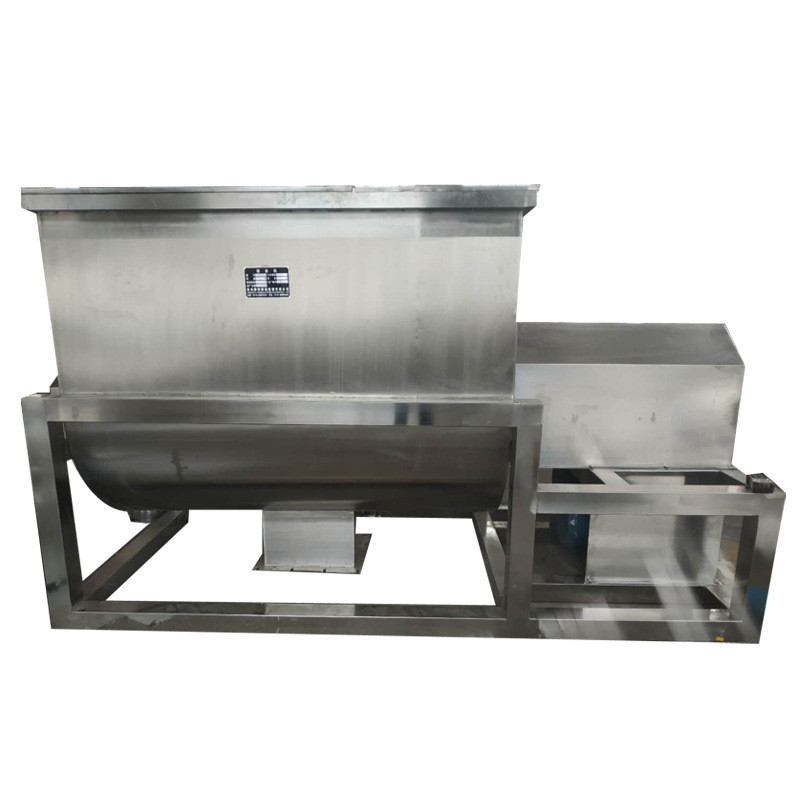

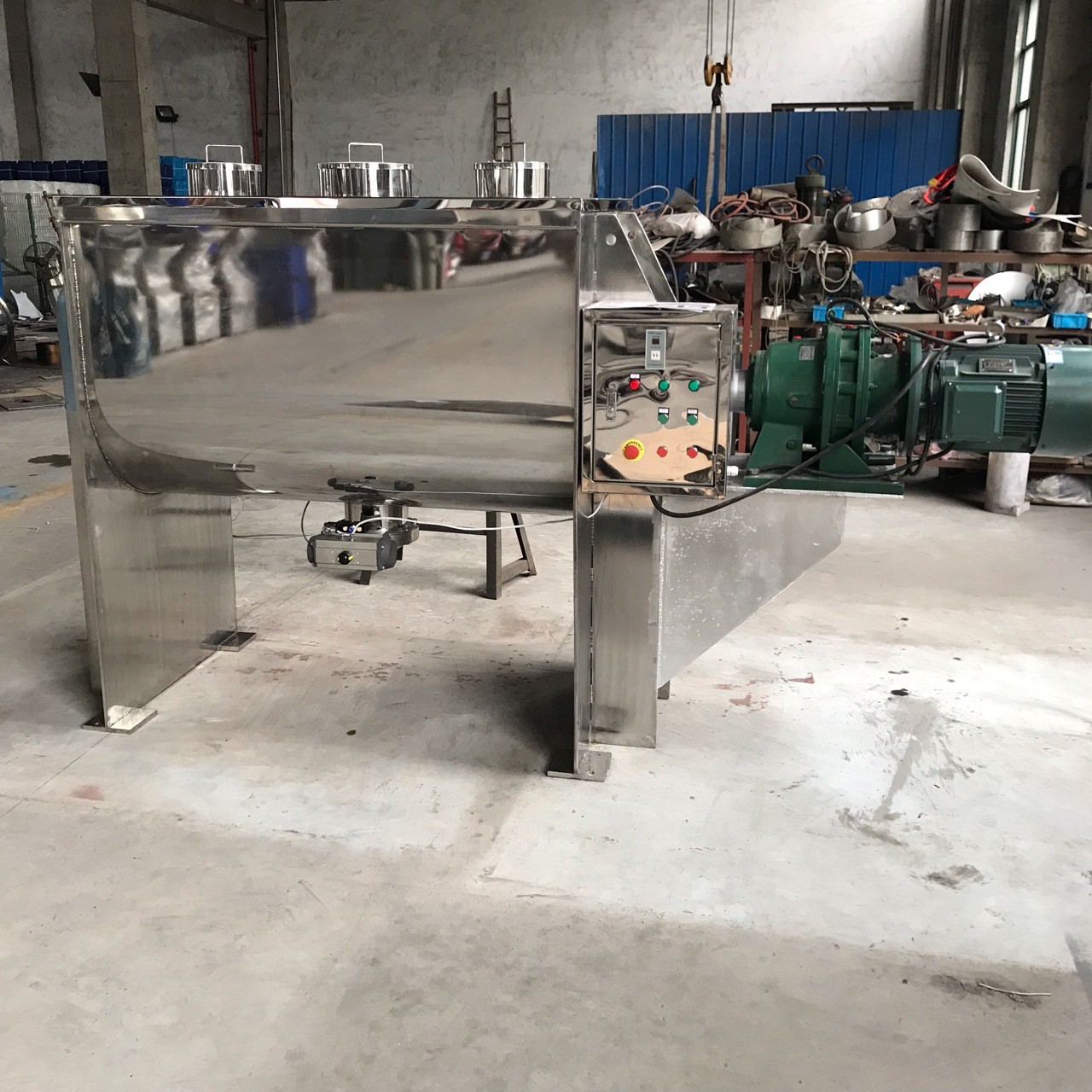

Horizontal Ribbon Mixer
Working Principle & Structure
WLDH Series Horizontal Ribbon Mixer belongs to low speed rotary machine. The wide ribbon makes the convection of the material to achieve the mixing effect. It consists of container, main shaft, and the drive transmission part. The container is U shape. It can be also equipped with the jacket for the container. It can heat, cool or vacuum in the jacket. The inside pressure of the jacket is less than 0.1 Mpa (The pressure can be customized). Two layers screw ribbons makes the convection of the material to achieve the mixing effect rapidly. There is a discharging valve in the middle of the container bottom.
Application
For the big load factor, small work area, this machine is applied to mix the sticky powders or granule with large capacity and stable variety. Therefore, it is widely used in pharmaceutical, foodstuff, chemical, pesticide, plastic, dyestuff industries, etc.
Technical Parameters
Model | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 |
Capacity (kg/batch) | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
Volume (L) |
500 | 1000 | 2000 | 3000 | 4000 | 6000 |
Rotating (rpm) |
≤42 | ≤42 | ≤42 | ≤42 | ≤42 | ≤42 |
Power (kW) |
5.5 | 11 | 18.5 | 22 | 30 | 37 |
Dimension (cm) |
230*80*130 | 270*100*150 | 340*120*175 | 350*140*205 | 420*145*210 | 480*165*235 |
Weight (kg) |
1000 | 1500 | 2300 | 3200 | 4100 | 5200 |
Packing & Shipping
1. Normally it is packed in the plywood case, or loaded directly in the container after film wrapping.
2. If you want to know the transportation cost:
By air-please tell me your airport name;
By express-please tell me your detailed address(including zip code,house number,street,city,country);
By ship-pls tell me your delivery port.
Why choose us?
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report
Specifications Configuration
1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, differentmaterial can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2. The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.
3. High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.
4. Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.
5. Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.
6. Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacketsampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
FAQ
1. Are you a factory?
A: Yes we are a factory with more than 10 years manufacturing experience.
2. I'm new in our industry,but I'm planing to set up a factory,what can I do?
A: We will design the most suitable proposal based on your actual situation, such as the daily production, raw material formula, factory layout, etc.
3. How long is your warranty?After warranty,what if we encounter problem about the machine?
A: Our warranty is one year. After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot asolution video for you. If video doesn't work out, we will send engineer to your factory.
4 How can you control the quality before delivery?
A: First, our component/spare parts providers test their products before they offer com-ponents to us. Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we will take a video to record the testing procedure and send the video to you.
5 Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are fool-style operation design, very easy to operate. Besides, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them. If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
6 Can I come to your factory to observe machine running?
A: Yes, customers are warmly welcome to visit our factory.
7 Can you make the machine according to buyer's request?
A: Yes, OEM is acceptable. Most of our machines are customized design based on cus-tomer's requirements or situation.
