2800rpm Adjustable Mesh Universal Crusher Wheat Pulverizer 300-1500kg/H
Product Details
2800rpm Adjustable Mesh Universal Crusher
,Universal Crusher 1500kg/H
,Wheat Pulverizer 300kg/H
Saving Energy Easy To Operate Universal Pulverizer Machine with Adjustable Mesh
Universal Crusher

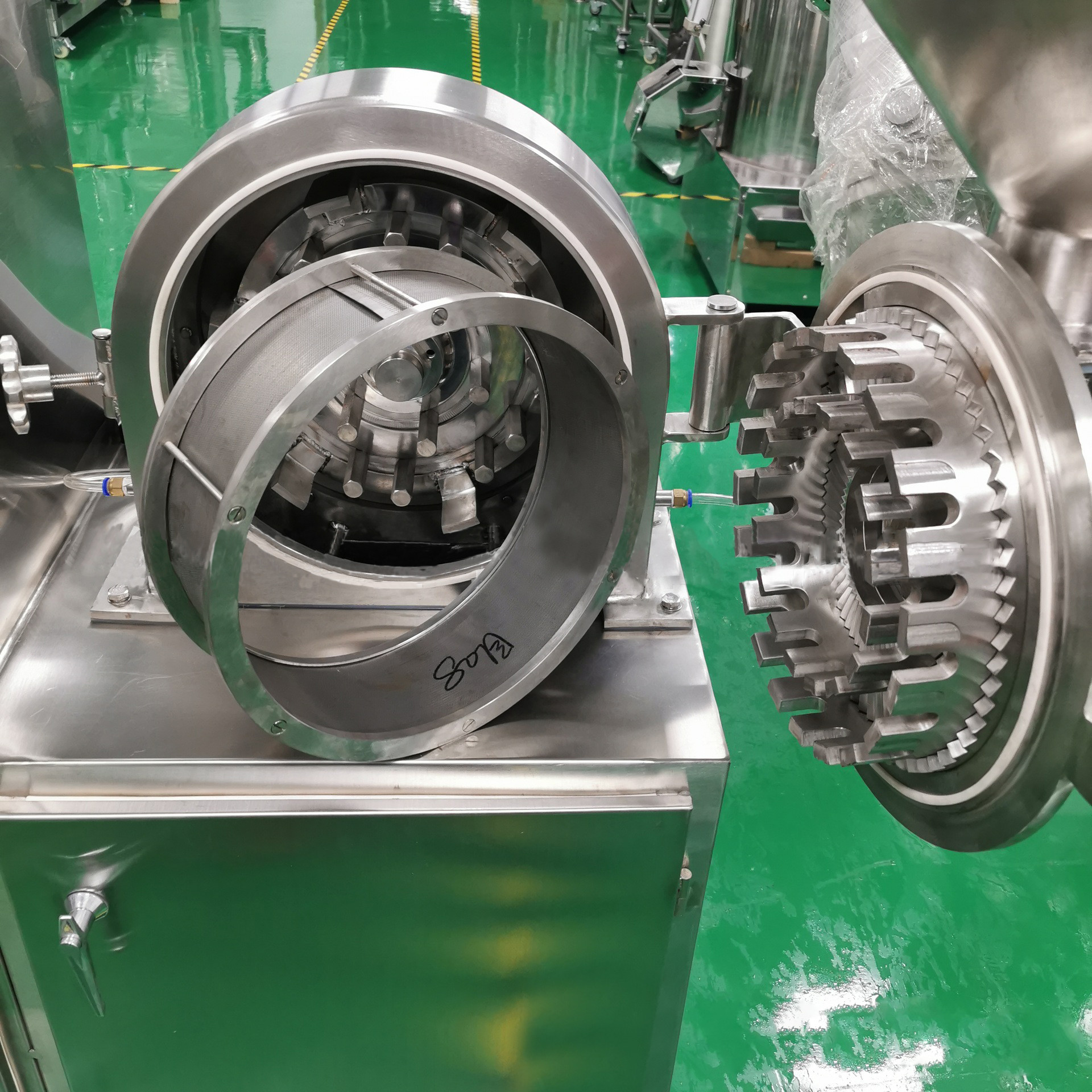

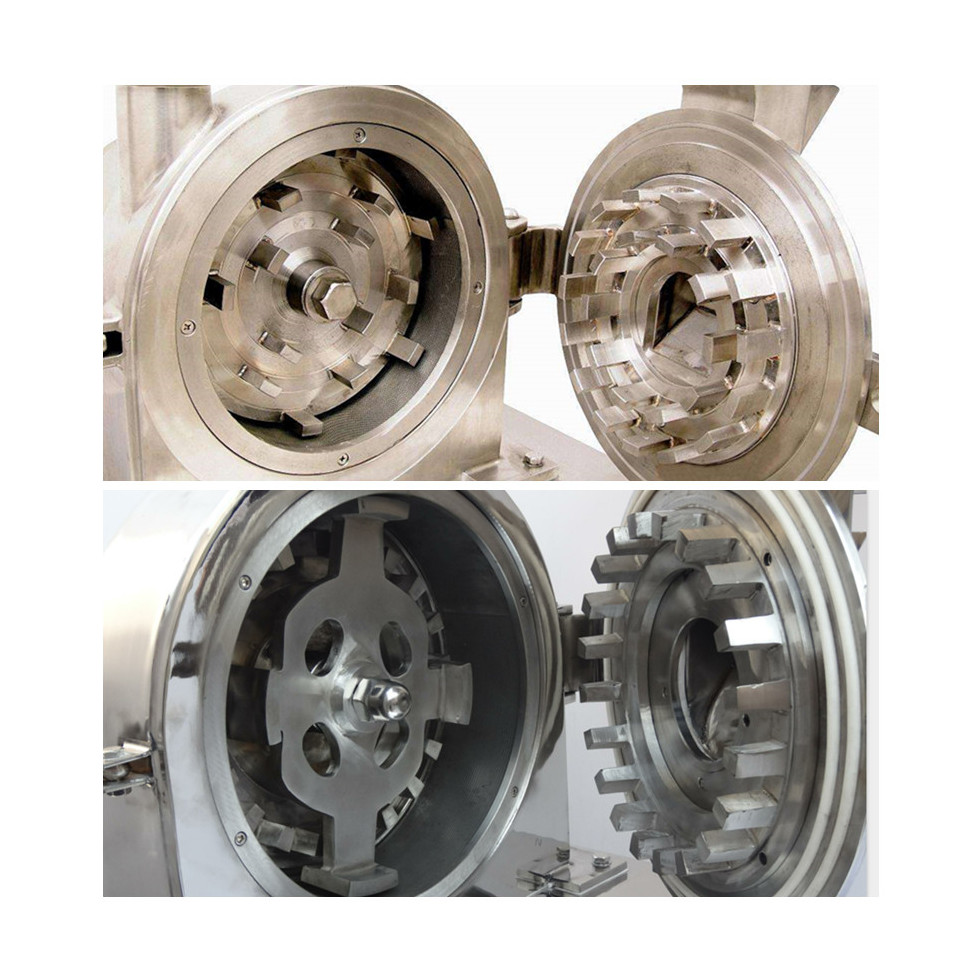

It makes use of the high-speed relative motion between the movable gear disc and the fixed gear disc, the material can be crushed through tooth impact, friction and impact between the materials. The crushed material is automatically entered into the trapping bag by the action of rotating centrifugal force, and the dust is filtered and recovered by the vacuum box through the cloth bag. The dust from the cloth bag in the concentrating case is collected in the dust absorption case. The machine is designed according to GMP standard .
| Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
| Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
| Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
| Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
| Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
| Weight (kg) | 180 | 260 | 360 | 450 | 550 |
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
FAQ
How about the after sale service?
1. If the parts are damaged during the warranty period, you can contact us in time for more information about the damaged parts. If replacement parts are available, we will mail matching parts, but shipping costs will be borne by the customer.
2. We mainly export packing by sea and take charge of packing, we will make sure the goods are safe on delivery.
3. We will track the goods from production to sales, and we will solve problems during and after sales for our customers.
If you want to send inquriy to me about Stainless steel universal crushers from China, could you please tell me about the following questions?
1. What material you want to grind, is it dry? what is the size of feed material ?
2. What capacity you expect by spice grinding machine? (kg/h)
3. What mesh or mm or micron(size) of the powder you want?
4. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We can provide 220v 380v or customized)
5. Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
-
