Product Details:
|
Name: | Universal Crusher | Function: | Grinding Material |
---|---|---|---|
Capacity: | 200-1000kg/h | Feature: | High Efficiency |
Power: | 11KW | Fineness: | 2-120 Mesh |
MOQ: | 1 Set | Warranty: | 1Year |
High Light: | Food Grain Pulverizer Grinder Machine,11KW Grain Pulverizer,OEM machine for grinding flour |
High Efficiency Pulverizer Grinder Machines for Grinding Spice Food Grain

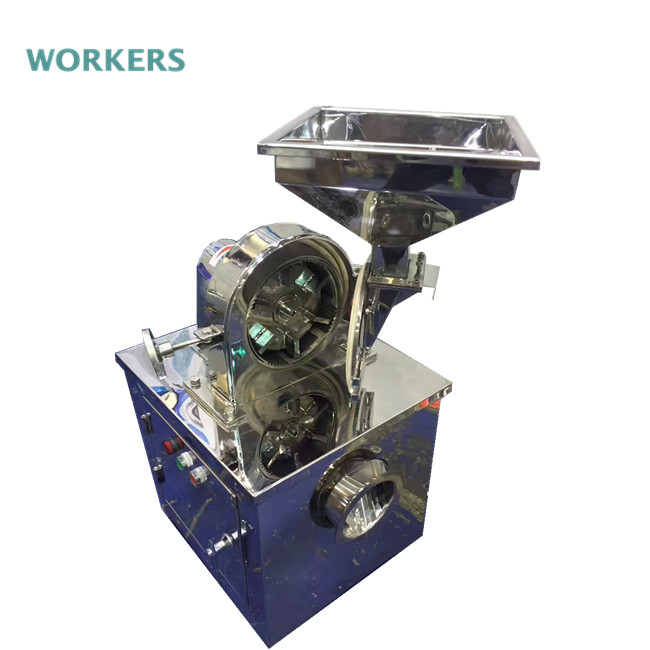

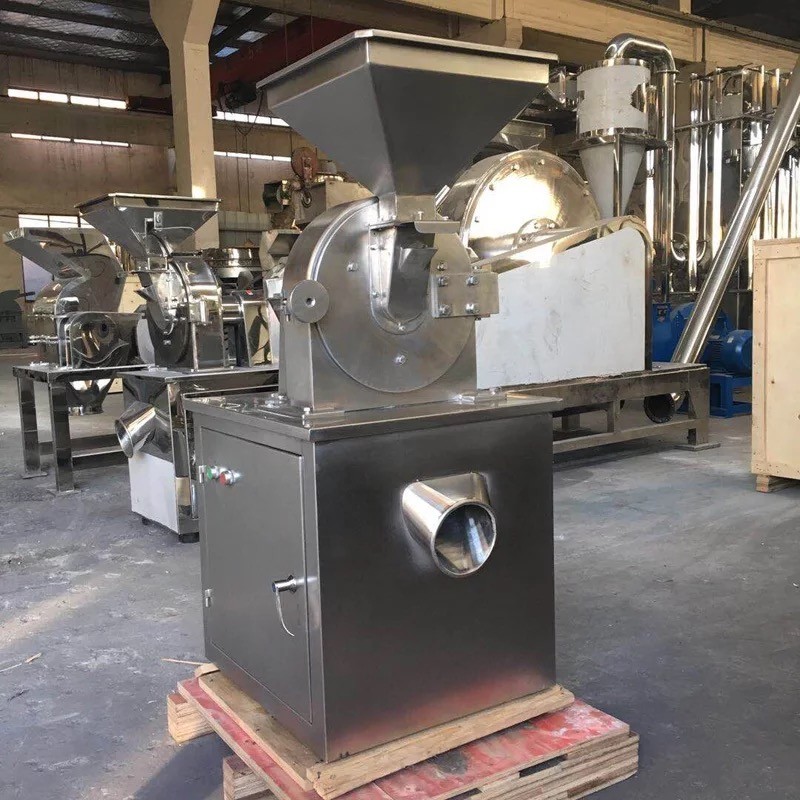

Universal Crusher

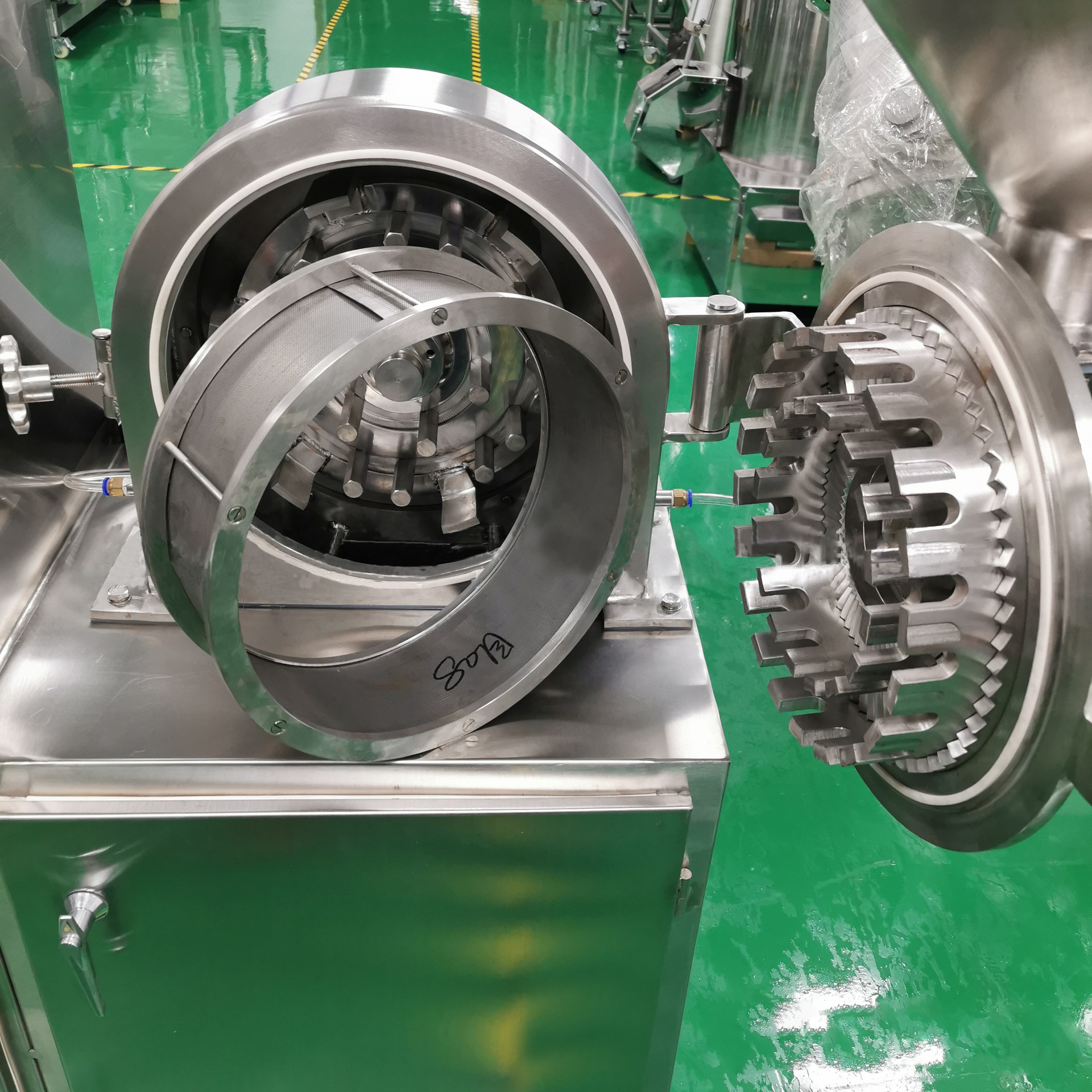

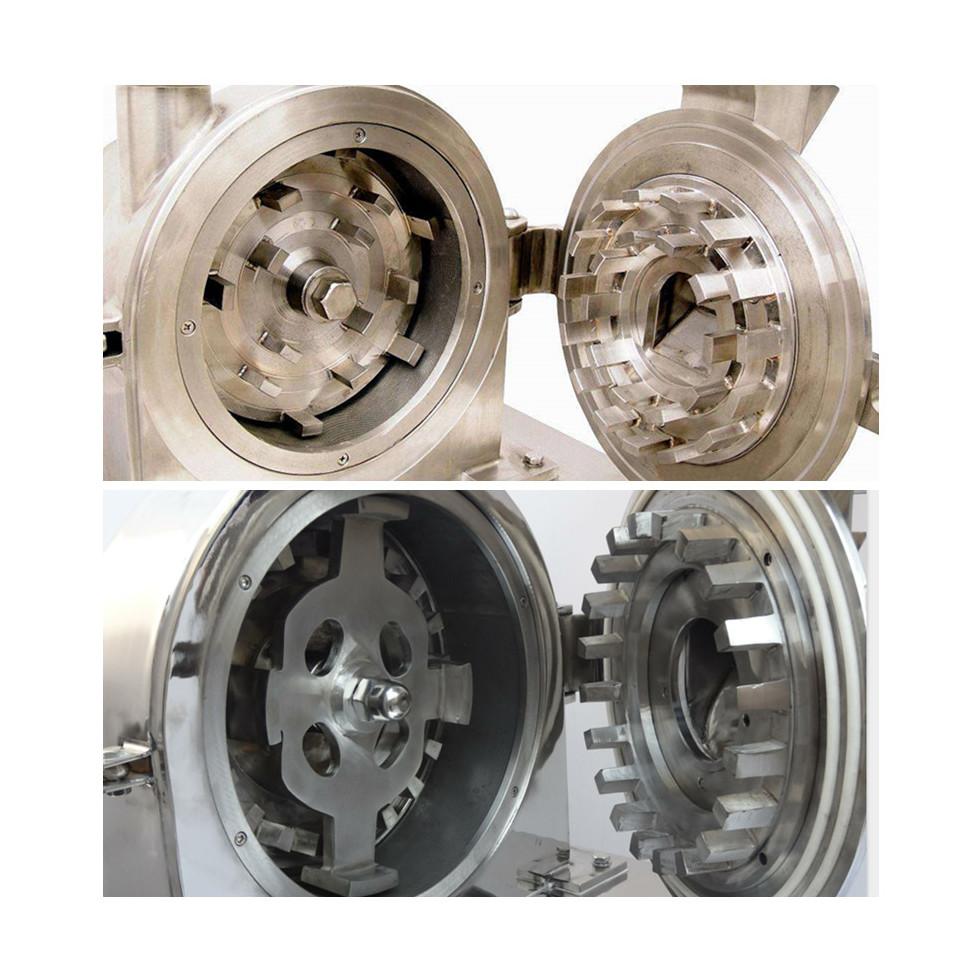

This machine utilizes the relatively high-speed operation between the movable disc and the fixed disc, so that the materials are crushed under the impact of the gear disk, the friction and collision of the materials with each other. The pulverized material can be directly discharged from the grinding chamber through the discharge port, and is usually collected by a long cotton bag. The size of crushing depends on the variation of different mesh sieves. The machine is simple and sturdy in structure, stable in operation, quick and uniform in grinding materials, and good in effect. This machine is made of food grade stainless steel. All notches of the casing (crushing tank) are precision machined with smooth surface and easy to clean. It has changed the phenomenon that the inner wall of ordinary crusher is rough, easy to accumulate and difficult to clean.
Our company has different machinery and equipment for customers to choose from, mainly exporting drying equipment, granulating equipment, mixing equipment, crushing equipment and packaging equipment. The main products are exported to hundreds of countries and regions in Southeast Asia, South America, North America, Europe etc, and are well received by users all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchange of talents and technologies with well-known enterprises at home and abroad. We aim to liberate people from heavy packaging production, let machines replace labor, reduce production costs and improve production efficiency.
Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
Weight (kg) | 180 | 260 | 360 | 450 | 550 |
Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
FAQ
Q: What factors I need to get a quotation?
A: Material size, productive capacity and grinding size is recommended. Voltage & Frequency(Hz) is also needed for a precise quotation.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, skilled workers and strict quality control system can ensure every machine with best working performance.
Q: What is the real delivery time of your factory?
A: Finished product will be transported immediately after payment, meanwhile, customized products would need 10 to 30 working days based on different situations.
