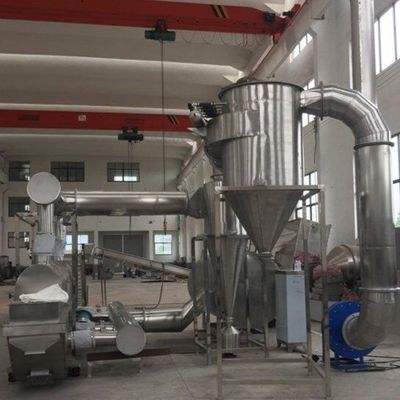

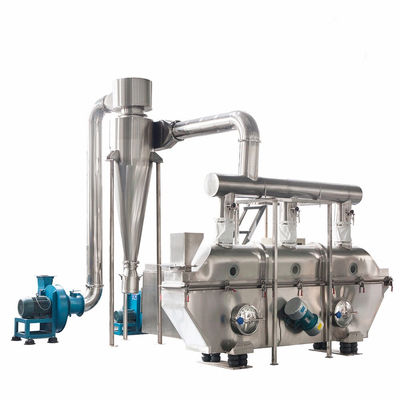

Herbal Medicine Vibratory Fluidized Bed Dryer Lotus Root Powder Yeast Dryer Machine
Product Details
Medicine Vibratory Fluidized Bed Dryer
,6*0.6m vibratory fluidized bed dryer
,Lotus Root Powder Yeast Dryer Machine
Lotus root powder yeast herbal medicine vibration fluidized bed dryer
Vibrating Fluidized Bed Dryer
Product Description:
ZLG Series Vibrating Fluidized Bed Dryer is widely applied in the industry of pharmaceutical,food,plastics,oil,slag,salt,chemical,sugar and etc.It dries and cools granules and powder.
Operating Principle:
Material goes into the hopper and moves forwards continuously along the conveyer line under the vibration.Heat flows up through fluidized bed,brings away the moisture in the material in the material.Then dried material discharges.
Application
Industrial vibration fluidized bed dryer applicable to chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, dry, cooling and other operations.
Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, radish l, silk, soybean meal, lees, seeds, slag, sugar.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
Feature:
The machine is powered by vibrating motor.This machine has the characteristics of stability and reliability in operation,low noise,long life and easy maintenance.
It works highly efficiently and save more than 30% energy than other dryers.The fluidized bed makes the material heated evenly,no overheating at any area.The vibration force is strong end even,and accepts stepless adjustment according to the design.The process is harmless to the material no matter what size or shape it is.
The machine is completely enclosed in order to prevent the pollution from the environment.It keeps environment clean and runs constantly.
Several machines can be connected to process big amount material with high moisture.
Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.
Equipment working principle
WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.
-
