Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 100-130kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Warranty: | 1 Year | Condition: | New |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | 3*0.3M vibratory fluid bed dryer,35kg/h vibratory fluid bed dryer,Magnesium sulfate Borax continuous dryer |
||
Magnesium sulfate Borax continuous dryer fluidized bed drying equipment

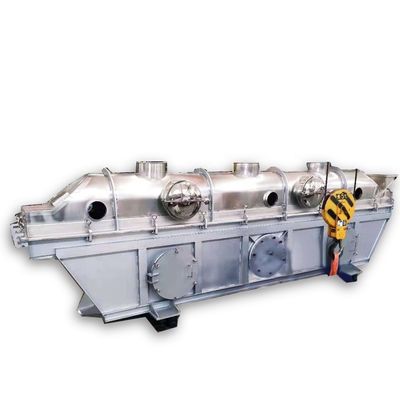

Vibrating Fluidized Bed Dryer
APPLICATION
This dryer is widely used for drying, cooling, wetting of the products in light industry, chemical industry, pharmaceutical
industry, foodstuff, and etc.
Applicable Materials:
Boric Acid, Borax, Dihydroxybenzene, Malic Acid, Maleic Acid, Monosodium Glutamate, Oxalate, Potassium, Permanganate, Sesame,
Pentaerythritol, HPAM, Hypha Protein, Sodium Sulfate, Sodium Borate, Plastic Archon, Catalyst, Baking Soda, Detergent, Quartz
Sand, Bean Pulp, Edible Sugar, Refine Salt, Bean, Seeds, Mining Slag, Activated Clay, Compound Fertilizer, and etc.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
WORKING PRINCIPLE
The raw material is fed into the dryer from the feeding inlet and the material will continuously moving along with the fluidized
bed level under action of vibration. The hot air passes through fluidized bed and carries out heat exchange with damp raw
materials. The wet air is exhausted out by the cyclone separator and the dried material will be discharged from the discharge
outlet.
FEATURES
1. The vibration is created by vibrating motor which is stable in operation, easy for maintenance, low noise, and long service
life.
2. The material is being heated evenly and the heat exchange is fully used which ensured high drying capacity. The energy
consumption is 30% lower compare to the common dryers.
3. The adjustability of the dryer is good and it is widely used in different industries. The material thickness, moving speed
inside the dryer, and amplitude can be adjusted.
4. The damage to the material surface is small so the dryer can be used for fragile materials. The irregular particles will not
affect performance of the dryer.
5. A fully enclosed structure will effectively prevent cross contamination between the material and the air environment.
6. Multiple series connection is optional if the material contents high moisture and required high capacity; such as Polyacrylamide.
