Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 70-90kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Warranty: | 1 Year | Power: | 1.1*2KW |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | Breadcrumb Vibrating Fluidized Bed Dryer,4.5*0.6m Vibrating Fluidized Bed Dryer,fluidized bed dryer in food industry |
||

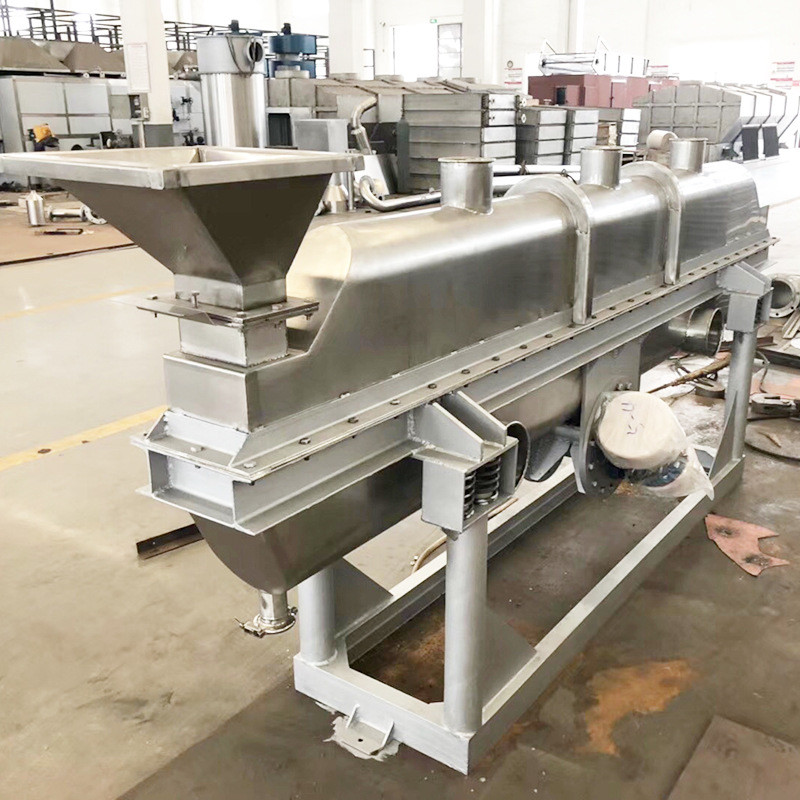

Stainless steel breadcrumb drying machine vibration fluidized bed dryer
Vibrating Fluidized Bed Dryer
1.Technical document All labels on machines and lay-out drawings, Electrical diagram, User Manual, will be in English. We will send all necessary files to the buyer since the third week since project execution. All documents in hard copies should be also shipped with machines together.
2. Arrangement for inspection, installation and testing work
2.1. After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
2.2. We will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
2.3. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer’s factory.
3. Quantity and quality guarantee
3.1. Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. We will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
3.2. Guarantee period and after-sales services: 12 months since date of bill of lading If the malfunctions are caused by your incorrect operations, We will provide the buyer spare parts at cost price.
3.3. Long-term service: We will will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Application
Industrial vibration fluidized bed dryer applicable to chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, dry, cooling and other operations.
Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, radish l, silk, soybean meal, lees, seeds, slag, sugar.
Brief drawing
Working principle
Vibrating fluidized bed means applying mechanical vibration to the fluidized bed. Adjust the vibration parameters so that the normal fluidized bed with severe backmixing can obtain ideal plug flow in continuous operation. At the same time, due to the introduction of vibration.

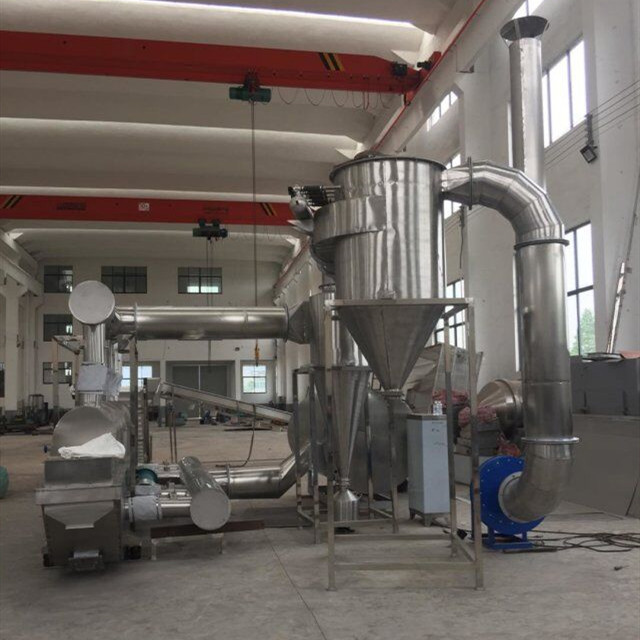

The material enters the machine from the vibrating and fluidized feed port. Under the action of the vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. The hot air passes through the screen plate upward from the lower box and exchanges heat with the wet material. , the wet air is discharged from the exhaust port after being dedusted by the cyclone separator, and the dry material is discharged from the discharge port.
2. Scope of application
This series of dryers are drying equipment designed by the principle of vibration flow Taihua. They are suitable for drying various loose powder and granular materials, and are widely used in food, chemical, pharmaceutical, building materials and other industries.
