Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 100-130kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Warranty: | 1 Year | Condition: | New |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | 50kg/H Vibrating Fluidized Bed Dryer,35kg/H Vibrating Fluidized Bed Dryer,Ammonium Persulfate Fumarate Fbd Dryer |
||
Ammonium persulfate fumarate dryer vibrating fluidized bed drying machine

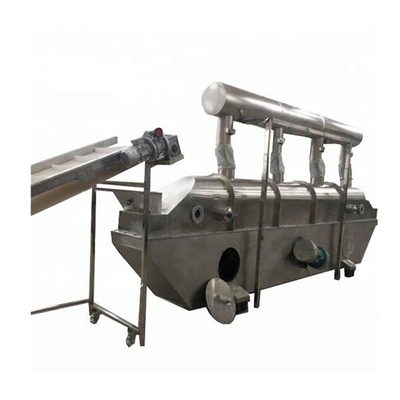

Vibrating Fluidized Bed Dryer
Overview:
The material enters the machine from the feeding port. Under the action of the vibration force, the material is thrown in the horizontal direction and moves forward continuously. The hot air passes through the fluidized bed and exchanges heat with the wet material. Discharge, the dry material is discharged from the discharge port.
The method of segmented heating is adopted. The pre-drying section adopts high pressure and low air volume fan, so that the wet material can be completely fluidized; the drying section adopts low pressure and high air volume fan, which can take away more water per unit time and dry evenly; the cooling section adopts The high air volume fan can quickly take away heat and reduce the temperature of the product, which not only meets the requirements of moisture control, but also facilitates the subsequent packaging process.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
The scope of application:
1. Food: chicken essence, seafood essence, monosodium glutamate, citric acid, xylitol, maltitol, sorbitol, dehydrated vegetables, calcium lactate, wine tank, monosodium glutamate, sugar, salt, slag, watercress, seeds, etc.
2. Pharmaceutical and chemical industry: various tableting granules, ammonium sulfate, thiourea dioxide, NOBS, boric acid, borax, diphenol, malic acid, maleic acid, etc.
3. It can also be used for cooling and humidification of materials.
Features:
1. The material is heated evenly, the heat exchange is sufficient, the drying intensity is high, and the energy saving is about 30% compared with the ordinary dryer.
2. The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long service life.
3. The fluidization is stable, and there is no dead angle and blow-through phenomenon.
4. Good adjustability, adaptable to face width.
5. It has little damage to the surface of the material, and can be used for drying of fragile materials. It does not affect the working effect when the material particles are irregular.
6. The fully enclosed structure effectively prevents cross-contamination between materials and air, and the working environment is clean.
