WKS Vibro Fluid Bed Dryer Zinc Sulfate Heptahydrate Polypropylene Pellet Dryer Machine
Product Details
WKS Vibro Fluid Bed Dryer
,Zinc Sulfate vibro fluid bed dryer
,Heptahydrate Polypropylene Pellet Dryer Machine
Vibrating fluid bed dryer for zinc sulfate heptahydrate polypropylene pellet

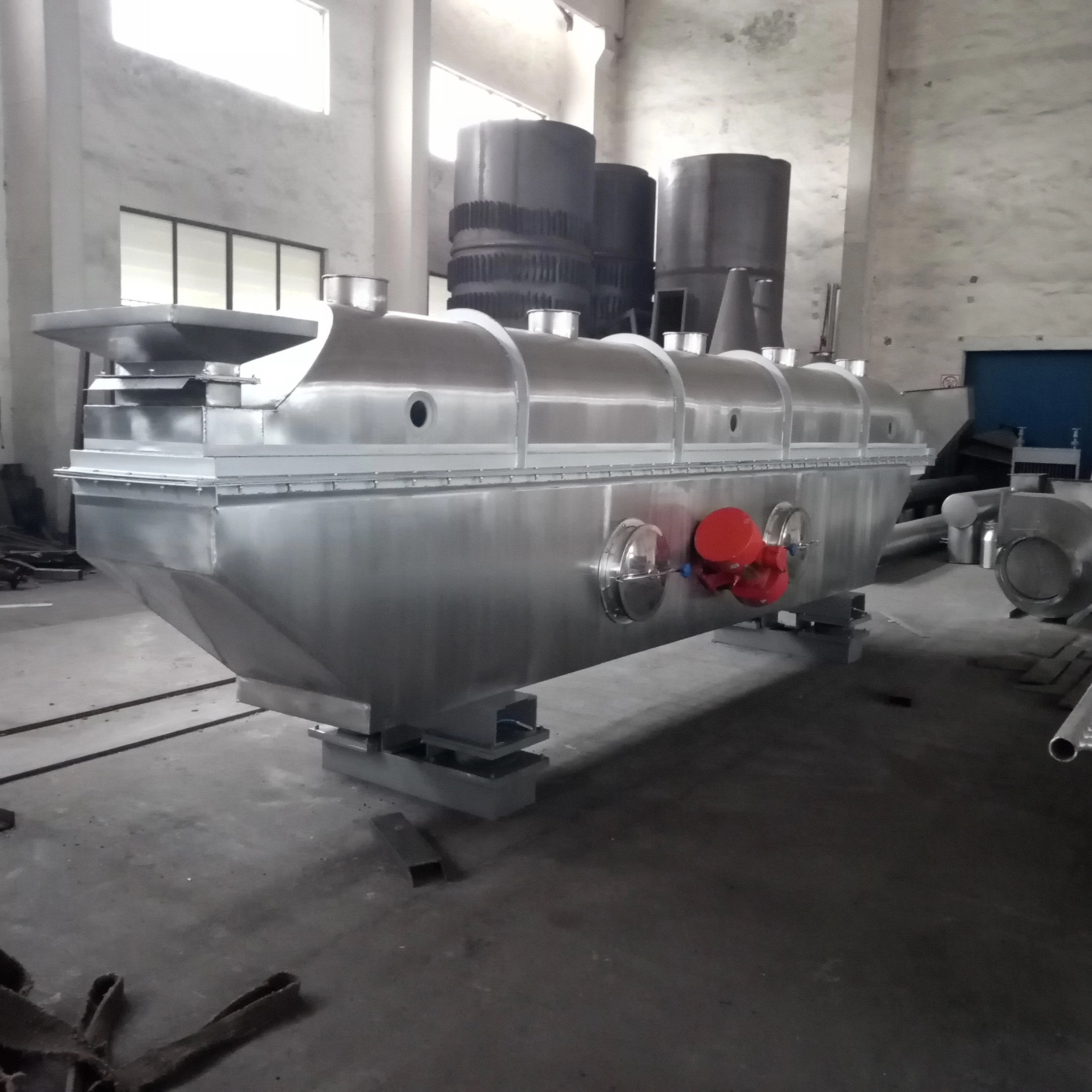

Vibrating Fluidized Bed Dryer
Overview
1. For drying powder and small granule materials with good flowability in various kind of industries ;
2. Inlet temperature: 70-140 degree C
3. Outlet temperature: 40-70 degree C
4. Evaporation capacity: 20-300 kg water/h
5. Heat supply can be steam, electricity, hot water, hot thermal oil and oil/gas/coal fired hot air generator.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Working principle
ZLG series vibrating fluid bed dryer is a type of fluidized bed where the mechanical vibration enhances the performance of fluidization.
After wet material is evenly fed onto the fluid bed (normally a perforated plate) via the feeding hopper, the strong vibration of dryer body fluidizes the wet material which moves towards the discharging vent. At the same time, hot air is evenly distributed into the drying chamber and flows though the perforated plate. Moisture is rapidly evaporated with complete contact and heat transfer between hot air and well fluidized wet material. Exhaust fan sucks out the evaporated moisture.The drying process is continuous and cooling air can be introduced to cool the product to required temperature.
Brief drawing

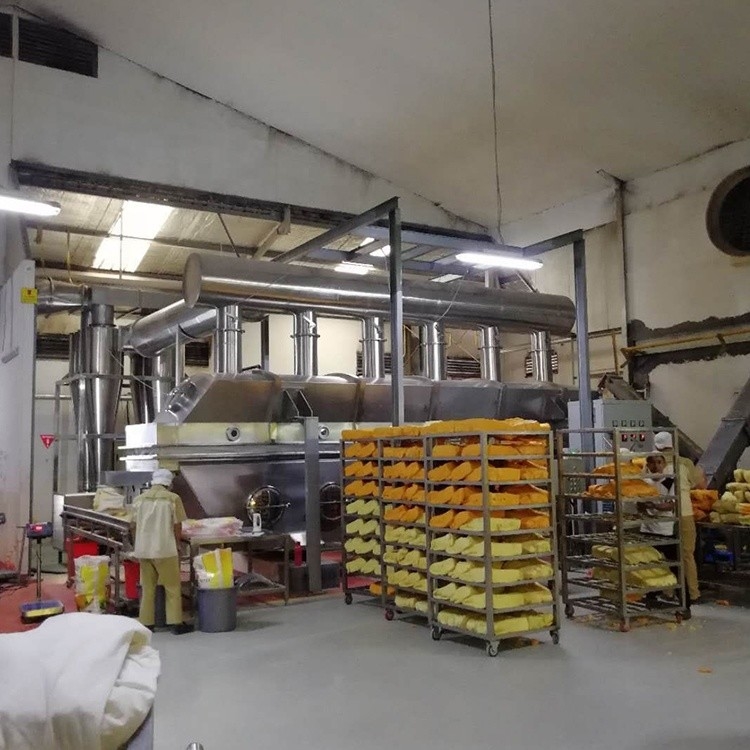

ZLG series vibration fluid bed dryer has been widely used in food, chemical and pharmaceutical industry for drying/cooling powder and granule (0.05-5mm) products with surface water.
Main Features
1. Wide applications: It is successfully used on all types of powders, agglomerates, granulates, especially those which fluidize poorly due to a broad particle size distribution. The fluid bed can be operated as a single drying or cooling unit - often associated with a spray drying system.
2. Energy-saving: Due to strong mechanical vibration, wet material can be perfectly fluidized and move forward with slow air flow velocity. Energy consumption is much lower than normal fluid bed dryer.
3. Adjustable residence time: Different residence time of wet material in drying chamber can be achieved by regulating the angle of vibration motors to meet different drying requirements in moisture.
4. Easy operation and maintenance: The whole drying system is highly automatic. The simple but practical design can not only reduce production cost but also the maintenance and repair cost.
-
