Multipurpose Spice Cinnamon Grinding Machines 20 Mesh High Efficiency

Basic Properties
Place of Origin: CHINA
Brand Name: xiaoli
Certification: CE
Model Number: WKS-20B
Trading Properties
Minimum Order Quantity: 1Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10Sets Per Month
Product Summary
High Efficiency Stainless Steel Multipurpose Spice Cinnamon Grinding Machines Universal Crusher Henan Workers Machinery Co., Ltd. produces dryers, granulators, pulverizers and packaging machines.The company's products are mainly exported to foreign countries. The main products are exported to ...

Product Details

Highlight:

Spice Cinnamon Grinding Machines

,

20 Mesh Spice Grinding Machines

,

Multipurpose Spice Grinding Machines

Name: Universal Crusher
Function: Grinding Material
Capacity: 60-150kg/h
Feature: High Efficiency
Color: Silver
Fineness: 2-120 Mesh
MOQ: 1 Set
Warranty: 1Year
Product Description

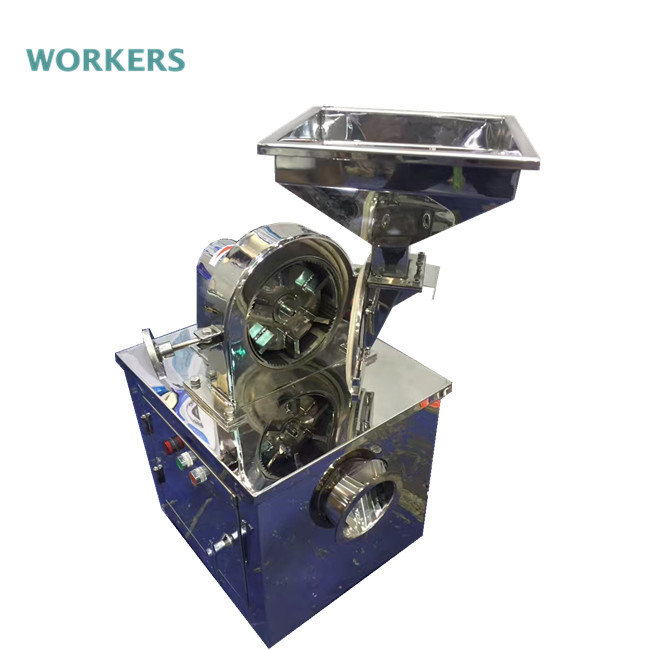

High Efficiency Stainless Steel Multipurpose Spice Cinnamon Grinding Machines



Universal Crusher



Henan Workers Machinery Co., Ltd. produces dryers, granulators, pulverizers and packaging machines.The company's products are mainly exported to foreign countries. The main products are exported to hundreds of countries and regions in Southeast Asia, South America, North America, Europe, etc., and are well received by users all over the world! The factory is located in Jiangsu, China, the products are mainly exported through Shanghai port. Shanghai port is a relatively large export port in China, so the transportation is convenient.



This machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush between the materials. The structure of machine is simple, firm and operating steadily and the result of crushing is well, no dust nuisance. The crushed material is discharged directly from mainframe. The different sizes of the granule are gained through replacing different pore sizes of sieve. In addition, this machine is made of the whole stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It meets national standard even more to make medicines, food, chemical industry, etc, and meet the requirement.



Technical Parameters



Model WKS-20B WKS-30B WKS-40B WKS-50B WKS-60B
Capacity (kg/h) 60-150 100-300 160-800 200-1000 300-1500
Shaft speed (r/min) 4500 3800 3400 3200 2800
Fineness size (mesh) 2-120 2-120 2-120 2-120 2-120
Motor power (kW) 4 5.5 7.5 11 15
Weight (kg) 180 260 360 450 550
Dimension (mm) 550*600*1250 600*700*1450 750*800*1550 800*850*1600 1000*900*1680

Multipurpose Spice Cinnamon Grinding Machines 20 Mesh High Efficiency 0

FAQ



Q1: Where is your factory? How can I visit your factory?

A1: Our factory is located in Jiangsu. We are warmly welcome you to

visit the production base if you have a travel plan.



Q2: How can I know your machine is designed for my product?

A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear ,pictures for your reference. If possible, we even can hold video conversation online with you.



Q3: How can I trust you for the first transaction?

A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use Trade Assurance service. it will protect your money during the whole transaction.



Q4: How about the after service and guarantee period?

A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.



Q5: How can we contact you?

A5: Please leave a message and click "send" to send us an inquiry.
