Stainless Steel Powder Grinding Machine High Efficiency Dry Spice Chilli Pepper

Basic Properties
Place of Origin: CHINA
Brand Name: xiaoli
Certification: CE
Model Number: WKS-20B
Trading Properties
Minimum Order Quantity: 1Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10Sets Per Month
Product Summary
Stainless Steel High Efficiency Dry Spice Chilli Pepper Powder Grinding Machine Universal Crusher Our company has different machinery and equipment for customers to choose from, mainly exporting drying equipment, granulating equipment, mixing equipment, crushing equipment and packaging equipment. ...

Product Details

Highlight:

Dry Spice Powder Grinding Machine

,

Stainless Steel Powder Grinding Machine

,

Chilli Pepper Powder Grinding Machine

Name: Universal Crusher
Function: Grinding Material
Capacity: 60-150kg/h
Feature: High Efficiency
Color: Silver
Fineness: 2-120 Mesh
MOQ: 1 Set
Warranty: 1Year
Product Description

Stainless Steel High Efficiency Dry Spice Chilli Pepper Powder Grinding Machine



Universal Crusher



Our company has different machinery and equipment for customers to choose from, mainly exporting drying equipment, granulating equipment, mixing equipment, crushing equipment and packaging equipment. The main products are exported to hundreds of countries and regions in Southeast Asia, South America, North America, Europe, etc., and are well received by users all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchange of talents and technologies with well-known enterprises at home and abroad. We aim to liberate people from heavy packaging production, let machines replace labor, reduce production costs and improve production efficiency.

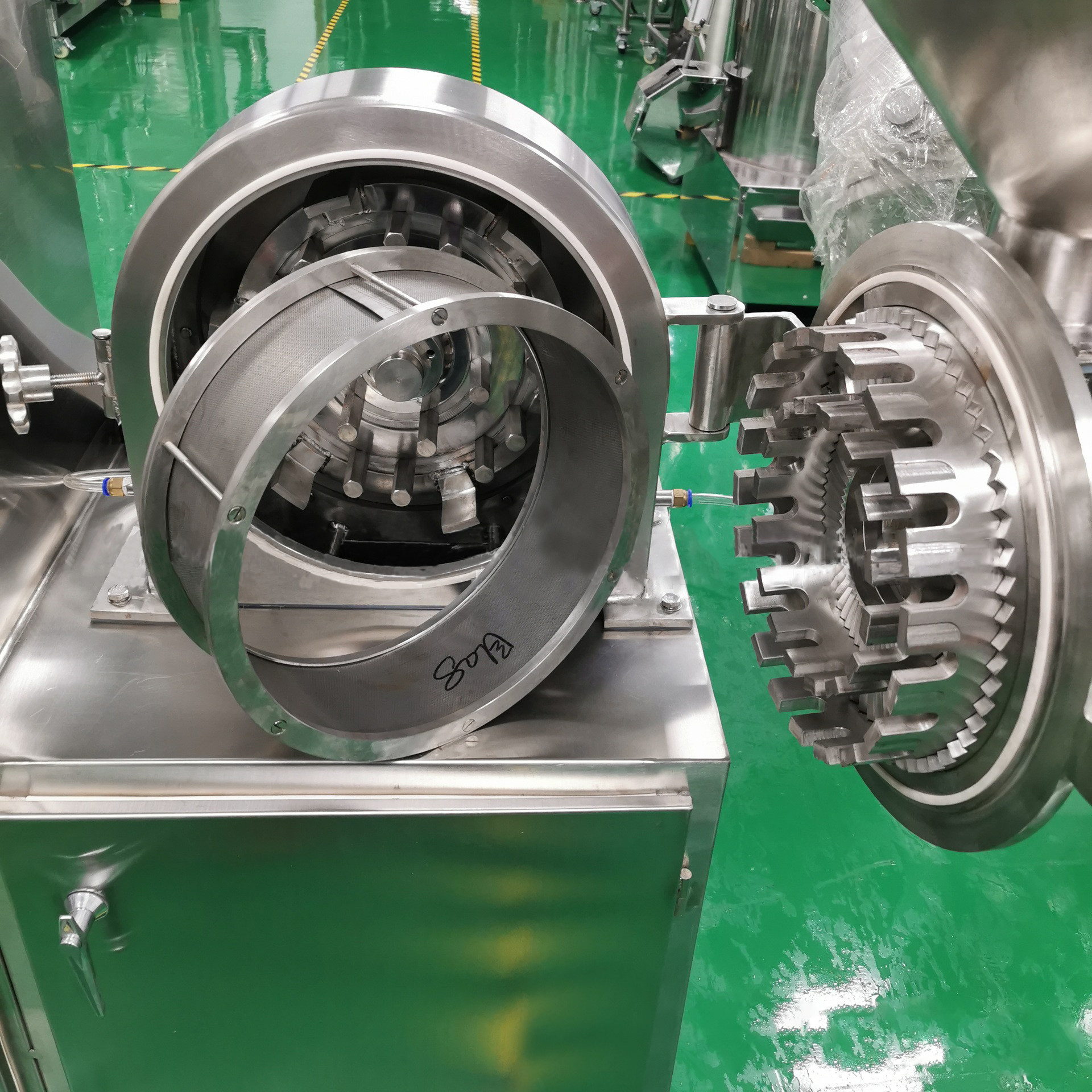

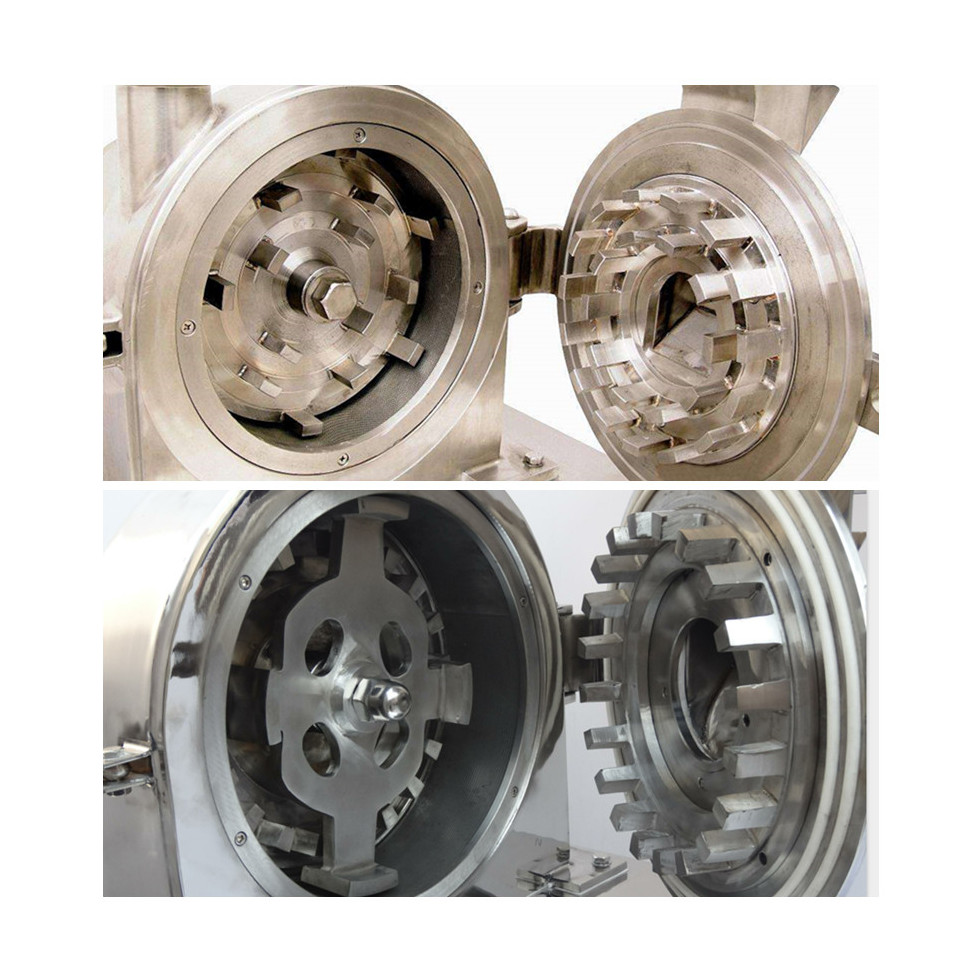

As for the grinding machine,the electrical motor of the grinder drives the main shaft to rotate at a high speed and spin off the material into the grinder, The material is ground between the moving plate and the fixed plate by striking, shearing and grinding, the ground material is carried by the air flow through the screen to the collecting bag. The size of the particle can be adjusted by changing the screen with different screen holes. Its features are simple and solid structure, stable running, high grinding efficiency. The crushed raw material can be powder can be got through exchanging screen with different mesh. All is processed finely, so it is smooth and level, which can overcome the shortcoming existed in the old model such as roughness, accumulated powder. It makes the production of medicines, foodstuff and chemicals and so on in conformity with the requirements of state standard and GMP.Water cooling device, and conveyor screw can be equipped according to customer’s needs.



Technical Parameters



Model WKS-20B WKS-30B WKS-40B WKS-50B WKS-60B
Capacity (kg/h) 60-150 100-300 160-800 200-1000 300-1500
Shaft speed (r/min) 4500 3800 3400 3200 2800
Fineness size (mesh) 2-120 2-120 2-120 2-120 2-120
Motor power (kW) 4 5.5 7.5 11 15
Weight (kg) 180 260 360 450 550
Dimension (mm) 550*600*1250 600*700*1450 750*800*1550 800*850*1600 1000*900*1680

Stainless Steel Powder Grinding Machine High Efficiency Dry Spice Chilli Pepper 0

FAQ



1.What are your main products?

Dryer,grinder,granulator,packaging machine,etc.



2. How to make an order?

Communicate with our salesman.All workmates try best to produce the machine.



3.How do you ensure the quality of your products?

Generally, our equipment are the most durable type in the industry, skilled workers and strict quality control system can ensure every machine with best working performance.
