2000L Pharmaceutical Chemical Powder Double Helix Ribbon Mixer Feed Detergent Spice Mix

2000L Pharmaceutical Chemical Powder Double Helix Ribbon Mixer Feed Detergent Spice Mix:

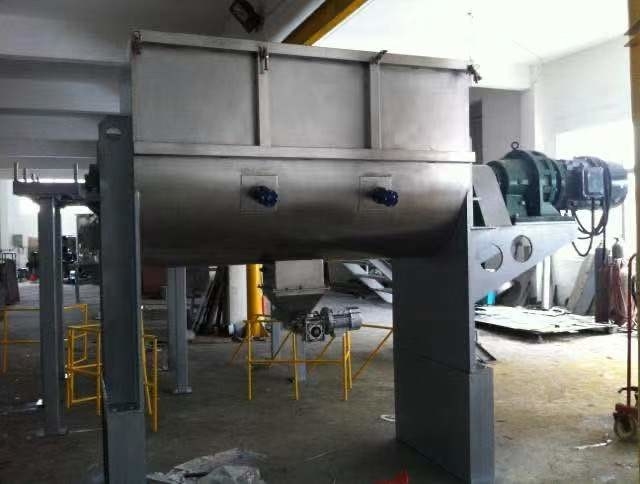

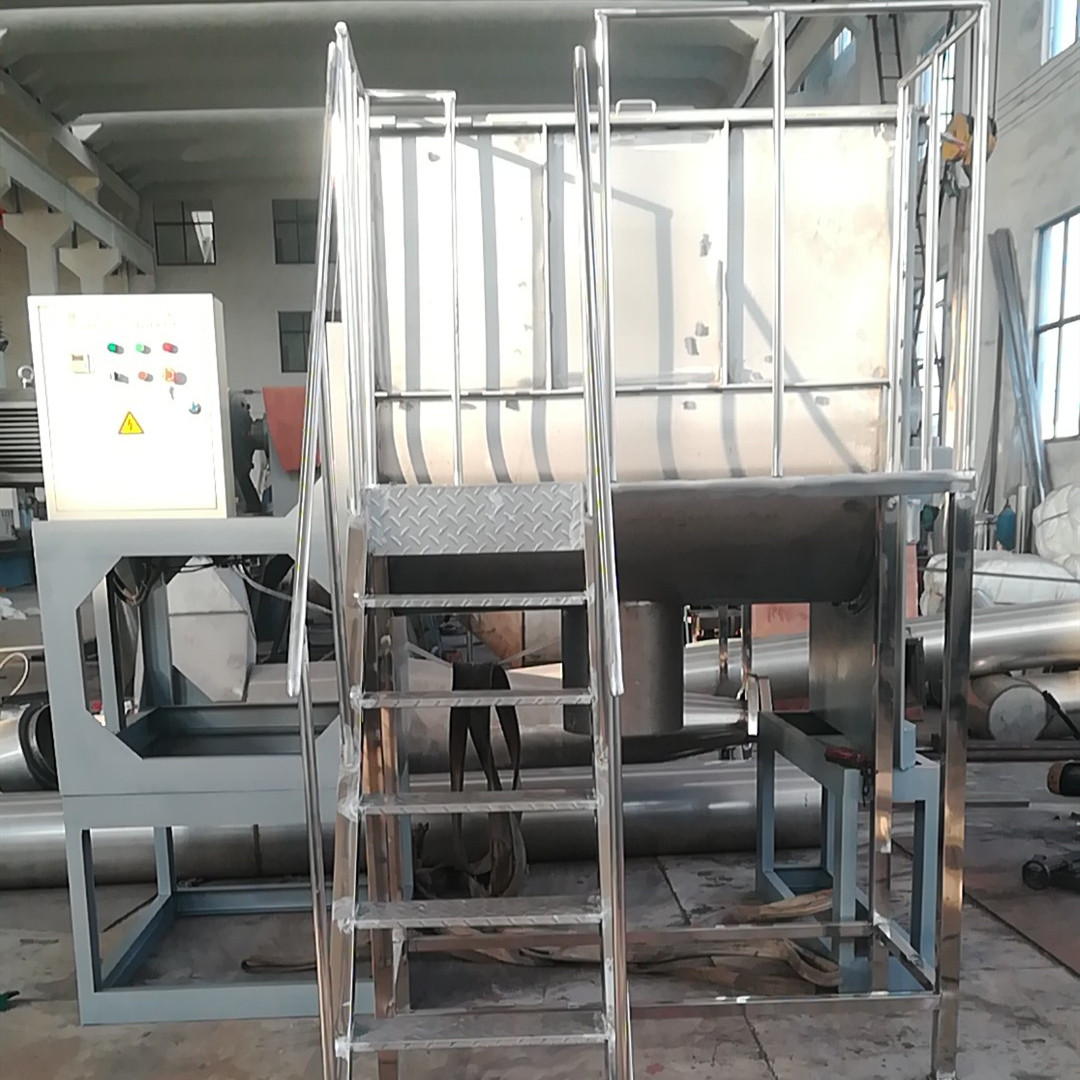

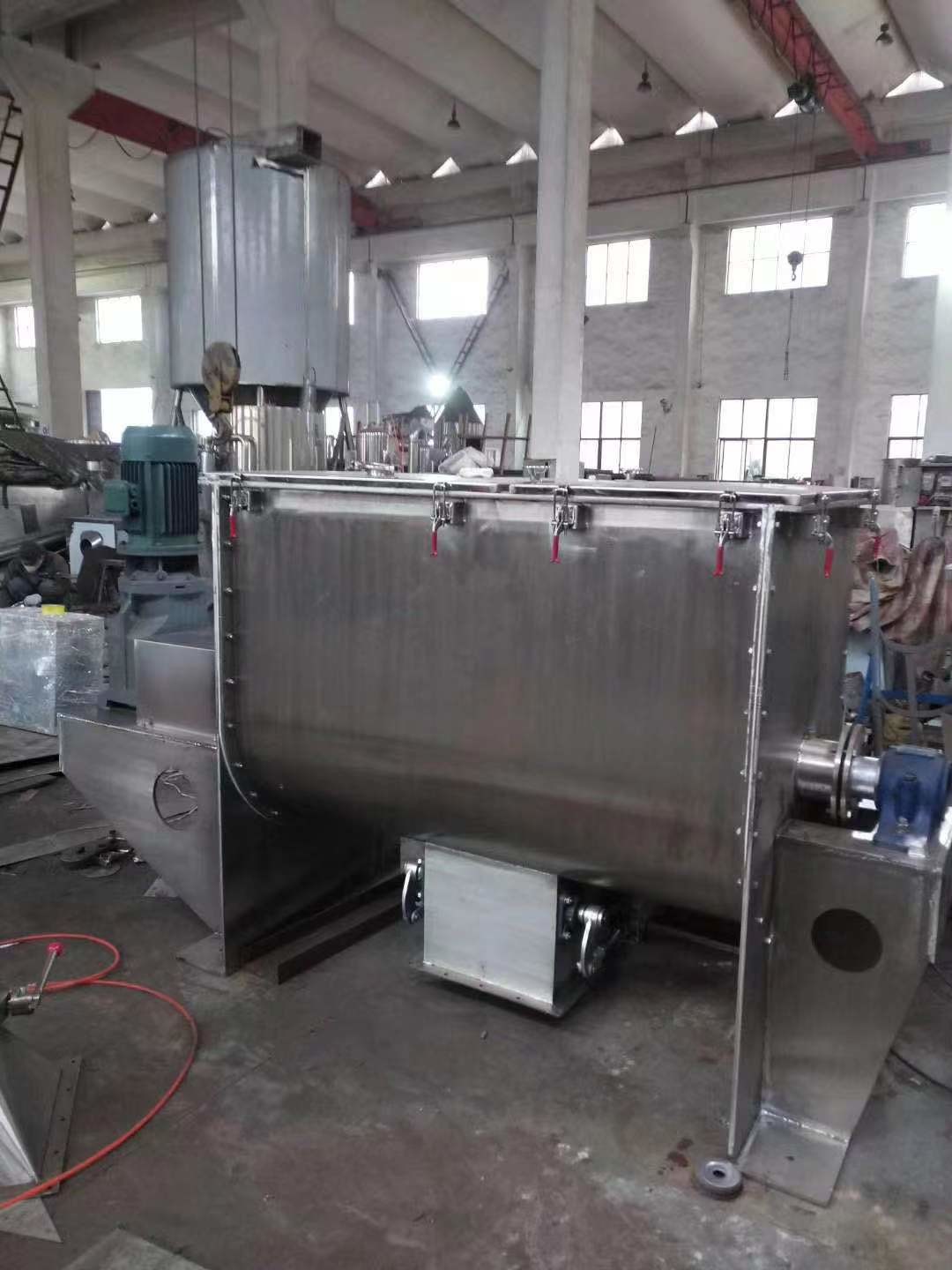

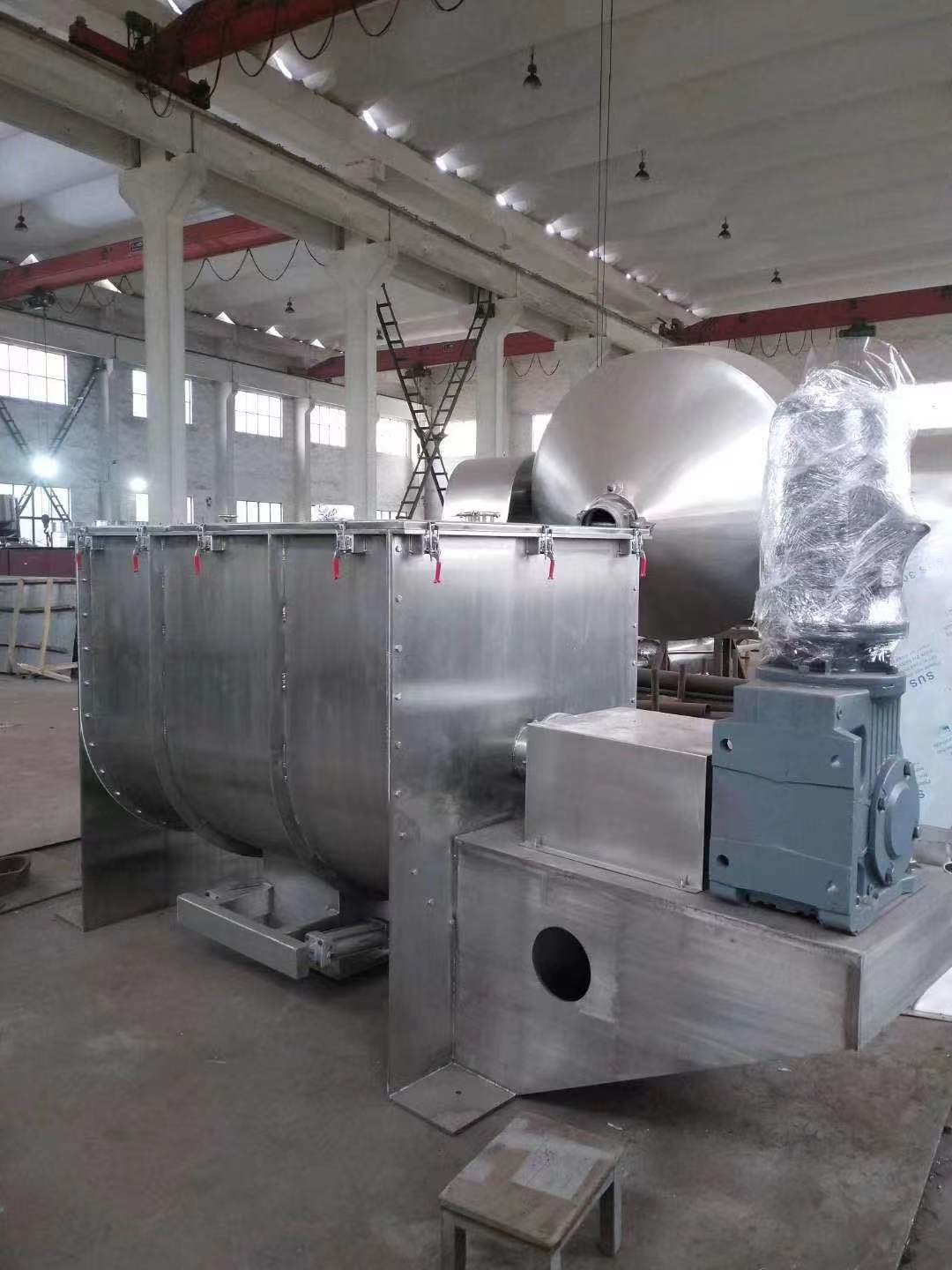

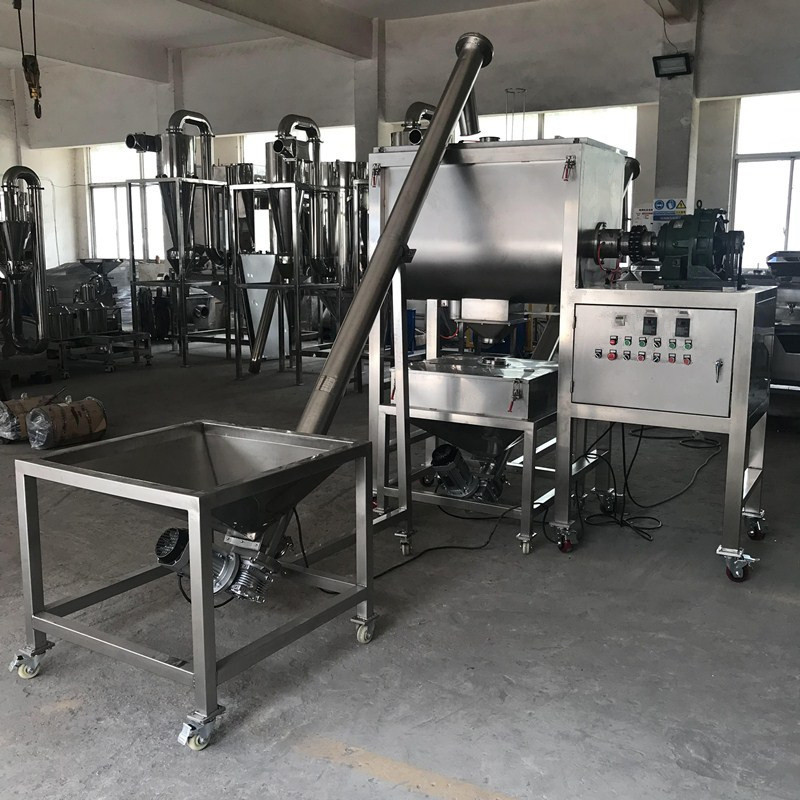

Horizontal ribbon mixer:

Working principles:

Horizontal ribbon mixer is one kind of single shaft mixer of high efficiency, wide application.

Horizontal, single shaft with double proportioned ribbon is housed in the tubular mixing drum. The vortex ribbon rotates with main shaft and thus bring raw material move towards direction of vortex ribbon. Outer ribbon push material from two ends to center and inner ribbon push material from center to two ends, and thus convection mixing is achieved.

Horizontal paddle mixer is equipped with systematic paddles, with one circle of main shaft rotation; two systematic paddles will push materials to different directions.

There is outlet at bottom of mixer, vortex structure of outer ribbon and main shaft rotation push material from two ends to center, so no leftover will be stayed in mixer tank after discharge.

Features:

1.Flexible material selection:Material can be carbon steel, manganese steel, ss304, 316; besides, different material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.

2.The driven unit:Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3.High efficiency mixing unit:different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4.Excellent discharging unit:The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5.Various inlets :Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.

6.Powerful auxiliary components :Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.

Technical Parameters

Company introduction

Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing and sales of various industrial drying machines, fruits & vegetables and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China.
WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high quality stainless steel with mature product design and sophisticated production technology.

Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria and South Africa, etc.

FAQ

1.Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.

2. What is your delivery time if I place order?
Usually one month. It depends on the machine itself, our actual order status.

3. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.

4. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.

5. What should I do if we can not solve the problems some times?
-You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
-If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.

6. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
