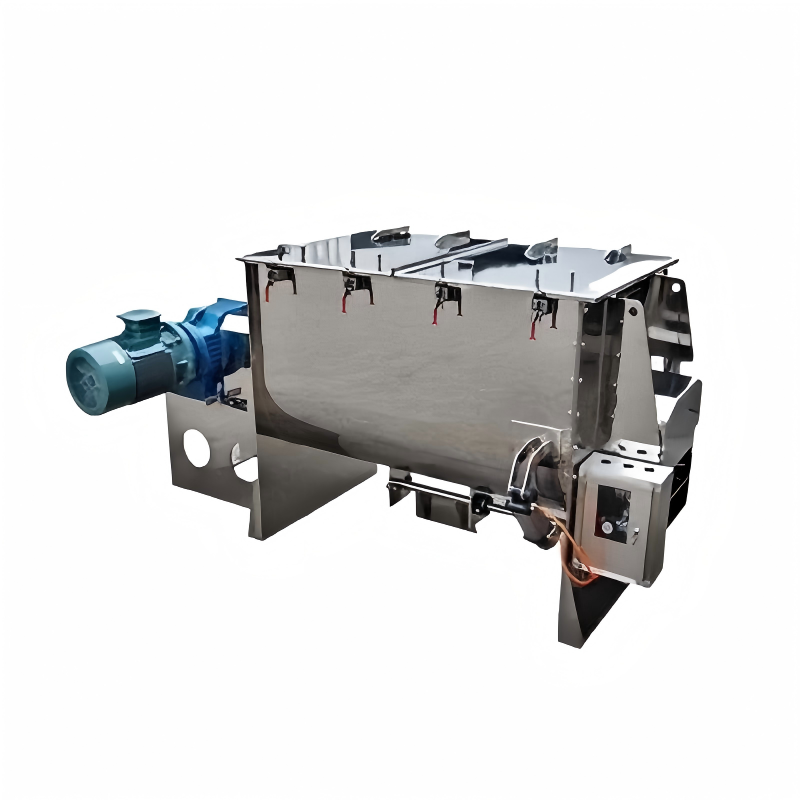

Detergent Powder Horizontal Ribbon Mixer 500L 200-300kg Batch Blender

Designed around the demands of the daily chemical industry, this horizontal ribbon mixer is built for detergent and cleaning powders where consistency and throughput matter most. The 500L trough and 200-300 kg batch capacity let producers blend washing powder, dishwashing powder, laundry detergent and cleaning powders efficiently while keeping fines under control. The two-layer ribbon geometry creates a rapid convective flow that disperses perfume, colour and active ingredients evenly, so every bag delivers the same cleaning performance. The unit can be supplied with a jacket for optional heating or drying when a single machine is required to handle several process steps.

The WLDH series ribbon mixer consists of a horizontal trough, a spiral agitating blade and a transmission unit. The spiral blade is generally made in two or three layers: the outer ribbon gathers material from both sides toward the centre, while the inner ribbon conveys it from the centre back to the two sides, so the two streams form a continuous convection mixing action. Because the trough can be manufactured with a circular section and fitted with a jacket, the same machine can also be used for reaction and drying when required. This unit is tuned to a 500L trough and a 200-300 kg working batch, giving a compact, energy-efficient solution with a large loading coefficient.

• Double Ribbon Convection Principle: Counter-flowing inner and outer spiral ribbons lift material from the centre and fold it back along the trough walls, producing a fast, uniform blend without dead zones.
• Rapid, Gentle Mixing: Typical mixing time is only 3 to 8 minutes for a 200-300 kg batch, with a coefficient of variation (CV) that meets industrial uniformity requirements while protecting particle shape.
• Stainless Steel Construction: All material-contact parts are made of stainless steel with a smooth, crevice-free finish that resists corrosion, prevents cross-contamination and simplifies cleaning between recipes.
• Large Loading Coefficient: The horizontal trough design accepts a large fill ratio, so the machine reaches its rated capacity with a small footprint and low specific energy consumption per tonne.
• Easy Discharge and Maintenance: A durable discharge valve, generous inspection openings and a simple drive train make emptying, cleaning and routine servicing quick and straightforward.
• Flexible Process Integration: Optional jackets for heating, cooling or drying and a customized voltage (220V, 380V or 415V) let the machine fit a wide range of production lines.

The 500L model is widely used for washing powder, dishwashing powder, laundry detergent and general cleaning powders in the daily chemical industry.

Thanks to its stainless steel contact parts and gentle convection action, this model is also suitable for mixing viscous or cohesive powders, for blending liquid and paste materials into dry powders, and for large-volume production where variety changes are infrequent. It is a reliable choice for food, pharmaceutical, nutraceutical, chemical, feed and new-material industries.

Changzhou Xiaoli Drying Equipment Co., Ltd. is a manufacturer of industrial drying, grinding, mixing, granulating and packaging machines applied in the food, pharmaceutical, nutraceutical and chemical industries. Established in 2014 and exporting more than 80% of its output to overseas markets, the company designs every machine around the principle of building touching products with the spirit of craftsmen. With in-house engineering, strict quality control and responsive after-sales service, our team helps customers select, install and maintain the right ribbon mixer for their process.

We offer full customization of capacity, voltage, jacket and discharge type, together with documentation and spare parts support. Our engineers are glad to advise on the correct configuration, recommend the optimal fill level and mixing time, and provide layout drawings for your production line before shipment.

• What is the batch capacity of this model? This model has a total volume of 500L and a working capacity of 200-300 kg per batch, with an equipped power of 4-11 kW and a dead weight of about 1060 kg.
• What material are the contact parts made of? All material-contact parts are stainless steel, with SUS304 as standard and SUS316 available on request. The smooth interior meets GMP-oriented hygiene requirements and resists corrosion.
• How long does one mixing cycle take? A typical batch mixes in 3 to 8 minutes, reaching a coefficient of variation (CV) that satisfies common uniformity standards for powders and granules while keeping particle attrition low.
• Can the machine be customized for heating, cooling or drying? Yes. An optional jacket can be added for reaction, heating, cooling or drying, and the voltage can be customized to 220V, 380V or 415V to match your site.
• What are the MOQ, lead time and warranty? The minimum order quantity is 1 set. Delivery is normally about 30 working days after order confirmation, and each machine carries a 12-month warranty with technical support.
