Product Details:
|
| Name: | Horizontal Ribbon Mixer | Voltage: | Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V |
|---|---|---|---|
| Warranty: | 1 Year | Mixer Type: | Ribbon,double Ribbon Blender |
| Application: | Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine | Product Type: | Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic |
| High Light: | WKS Foodstuff Horizontal Ribbon Mixer,Horizontal Ribbon Mixer 100*150cm,Seeds Sugar Mixer Machine 270cm |
||
Seeds Sugar Dry Powder Mixer Granules Mixing Heating Jacket Ribbon Blender

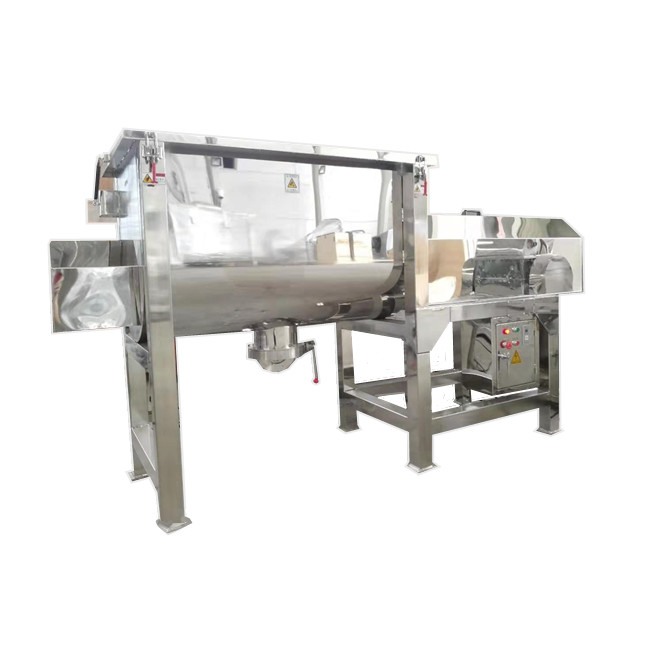

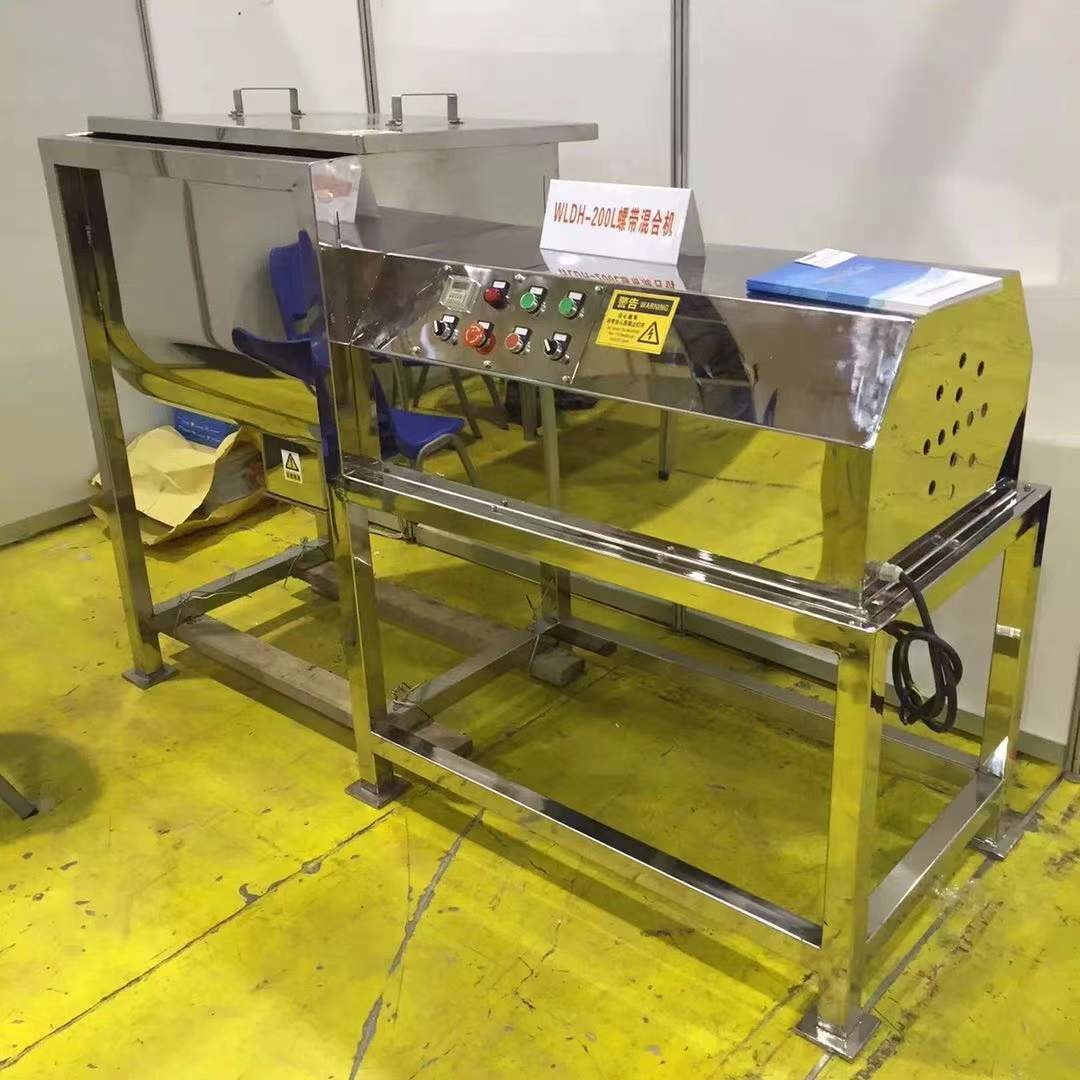

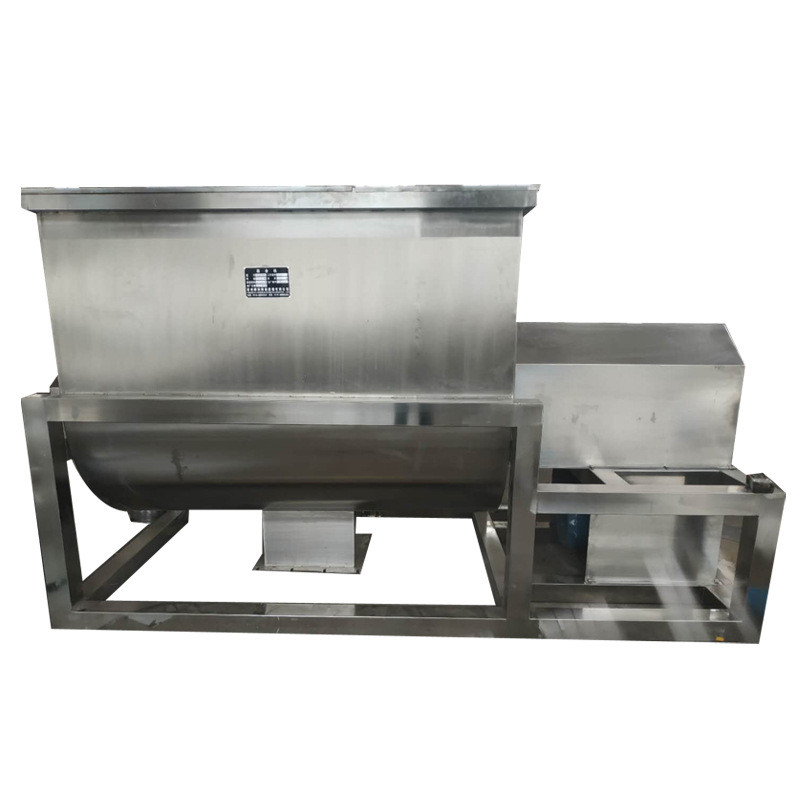

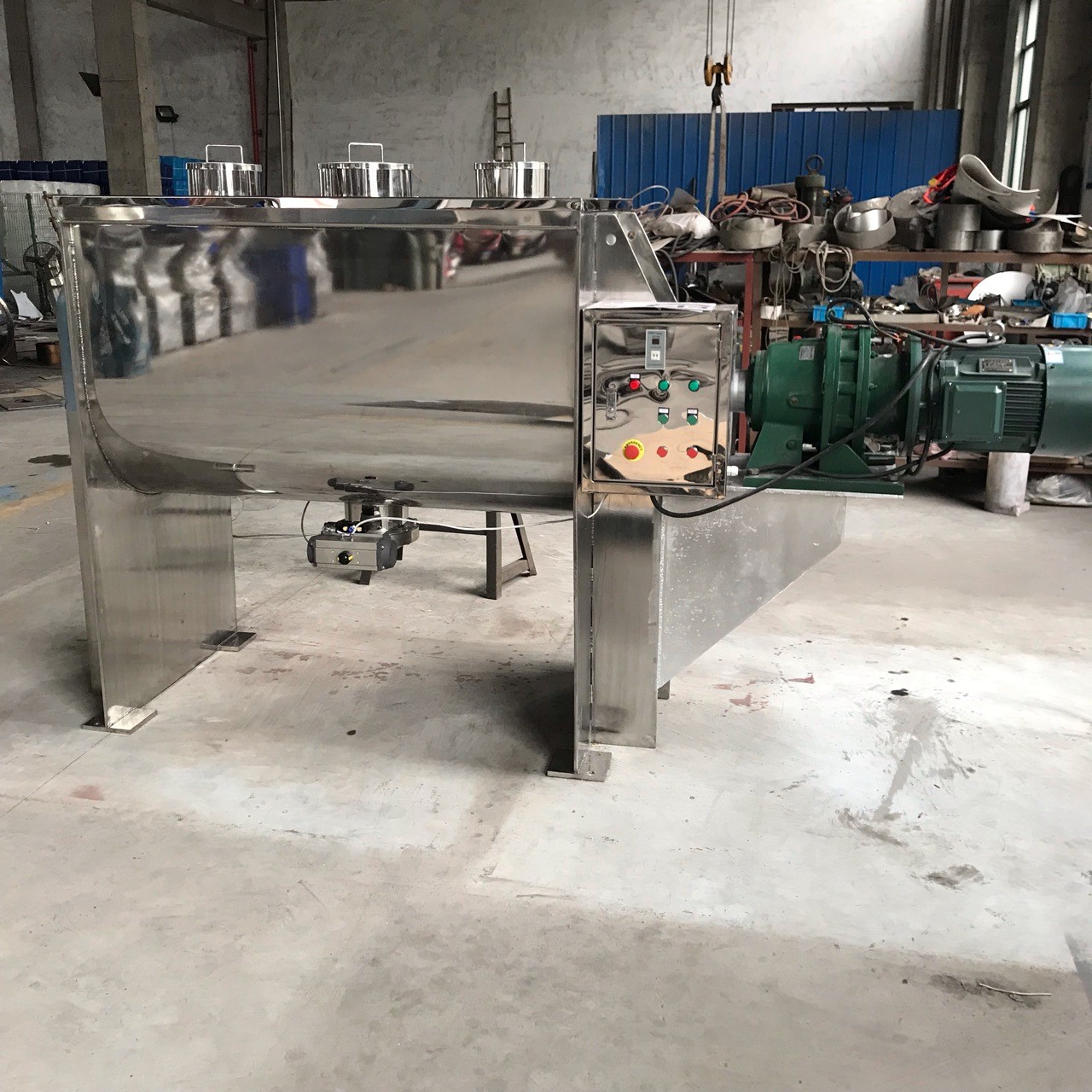

Horizontal Ribbon Mixer
Working Principle & Structure
WLDH Series Horizontal Ribbon Mixer belongs to low speed rotary machine. The wide ribbon makes the convection of the material to achieve the mixing effect. It consists of container, main shaft, and the drive transmission part. The container is U shape. It can be also equipped with the jacket for the container. It can heat, cool or vacuum in the jacket. The inside pressure of the jacket is less than 0.1 Mpa (The pressure can be customized). Two layers screw ribbons makes the convection of the material to achieve the mixing effect rapidly. There is a discharging valve in the middle of the container bottom. The drive parts adopt separated devices, that is, the motor is connected with reducer by the strap. Thus, It can save the space and has the overload protection.
Application
For the big load factor, small work area, this machine is applied to mix the sticky powders or granule with large capacity and stable variety. Therefore, it is widely used in pharmaceutical, foodstuff, chemical, pesticide, plastic, dyestuff industries, etc.
Features
1. Full welding at all connection parts.
2. All 304 stainless steel, and full mirror polished inside tank.
3. Special ribbon design makes no dead angle when mixing.
4. Patent Technology on double security shaft sealing.
5. Slightly concave flap controlled by pneumatic to achieve no leakage at discharge valve.
6. Round corner with silicone ring lid design.
7. With safety interlock, safety grid and wheels.
Technical Parameters
| Model | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 |
| Capacity (kg/batch) | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
| Volume (L) |
500 | 1000 | 2000 | 3000 | 4000 | 6000 |
| Rotating (rpm) |
≤42 | ≤42 | ≤42 | ≤42 | ≤42 | ≤42 |
| Power (kW) |
5.5 | 11 | 18.5 | 22 | 30 | 37 |
| Dimension (cm) |
230*80*130 | 270*100*150 | 340*120*175 | 350*140*205 | 420*145*210 | 480*165*235 |
| Weight (kg) |
1000 | 1500 | 2300 | 3200 | 4100 | 5200 |
FAQ
Q: How to choose a suitable model for myself? Pl supply the following information,we will help you choose a suitable model for you.
A: 1.what's the mixing material?
2. how's the material's density(Kg/m3) and moisture(%)?
3. what's the capacity per batch?
4. What's the mixer machine materials?
5. If you need CIF price,pl tell me your destination port?
Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
Q: How is the payment term?
A: Usually,the payment term is 50% T/T advance payment,balalnce 50% by T/T before shipment.But L/C and other payment term can be accepted after negotiation.
Q: How long is the warranty?
A: The warranty is 12 month.
