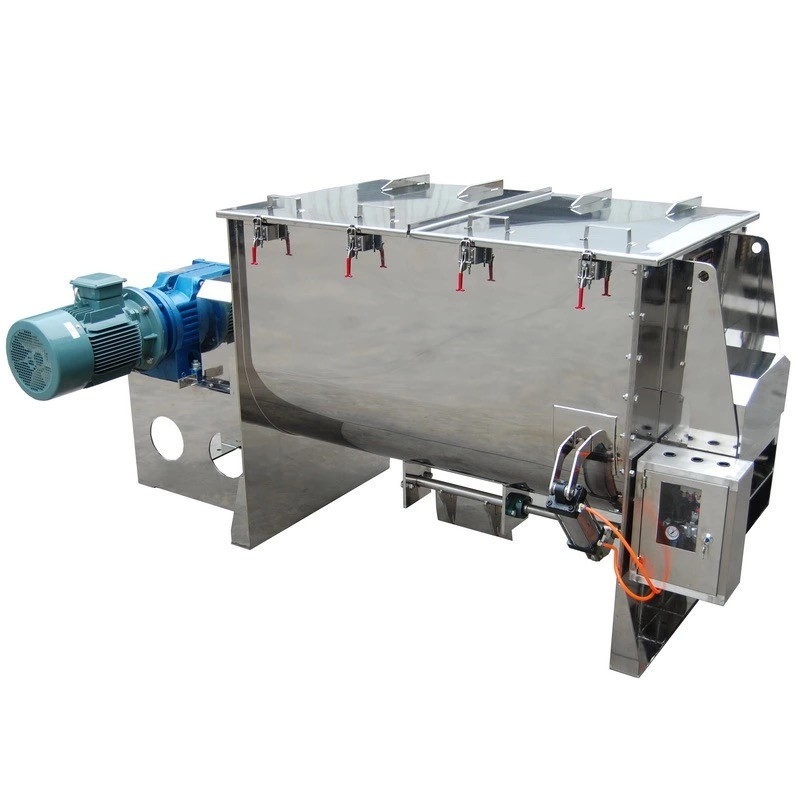

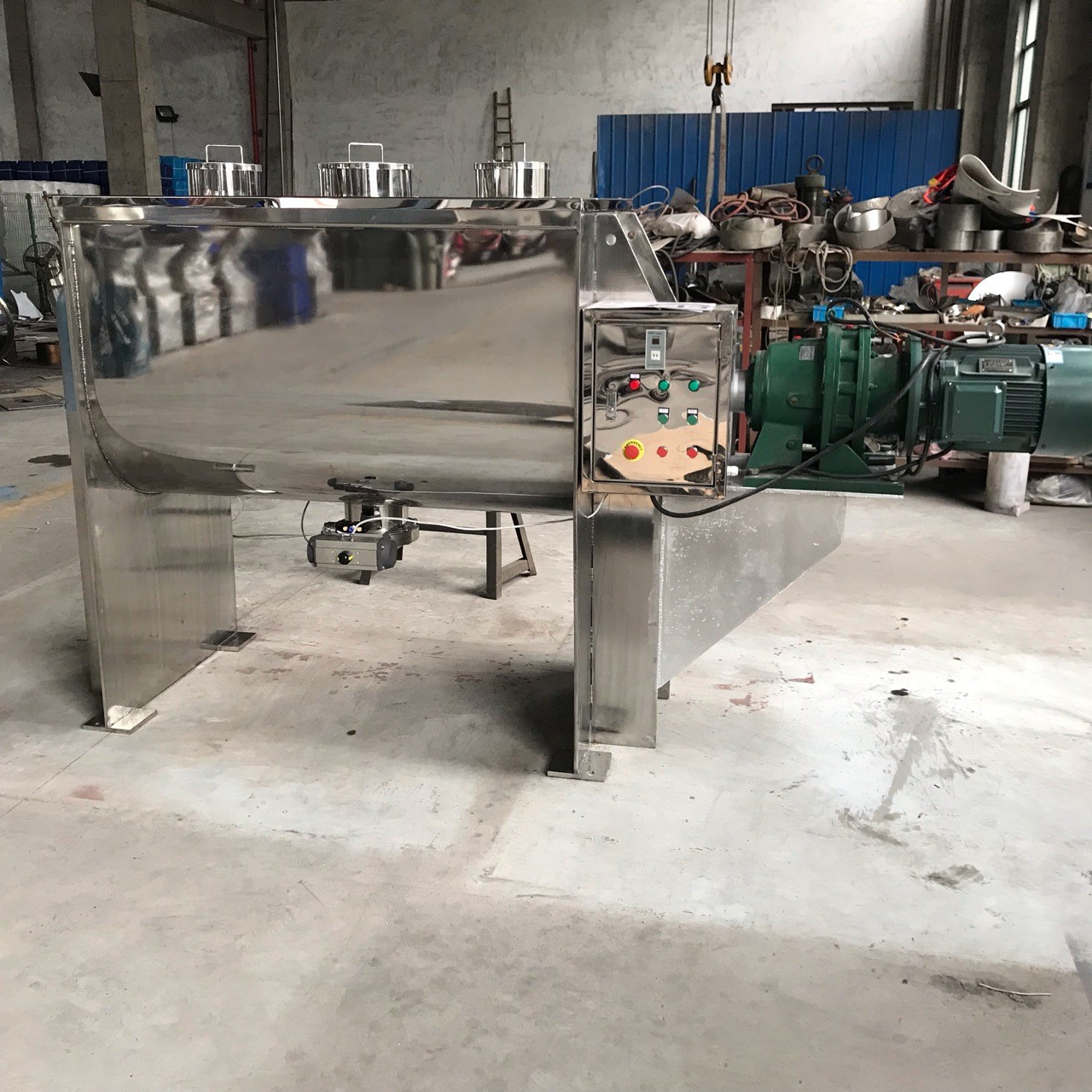

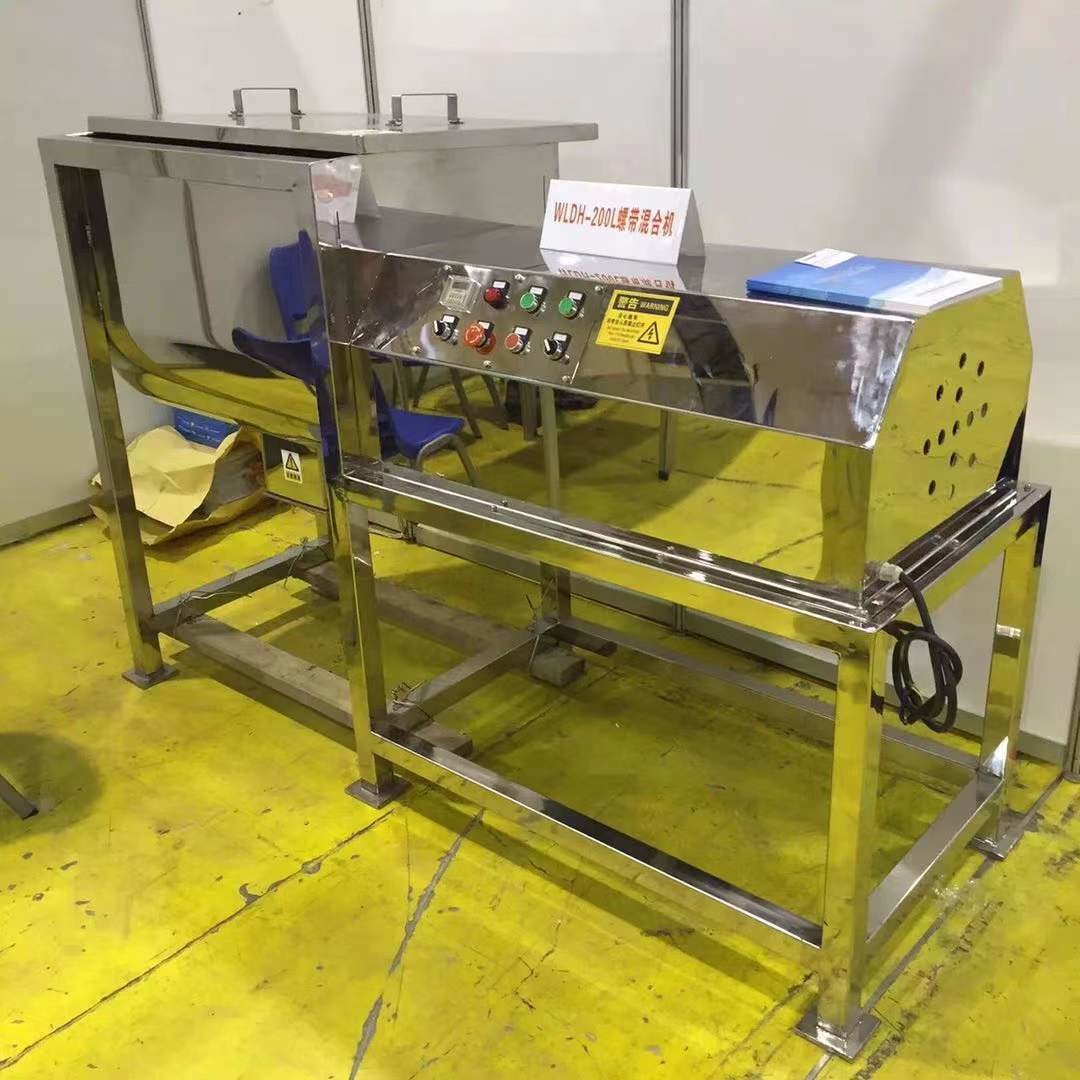

11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine

11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine
11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine
11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine 11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine 11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine 11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine

Large Image :  11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine

Product Details:
Place of Origin: China
Brand Name: WKS
Certification: CE
Model Number: WLDH-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: 10-30 Working Day
Payment Terms: T/T
Supply Ability: 10 Set per Month

11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine

Description
Name: Horizontal Ribbon Mixer Voltage: Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V
Volume: 1000L Mixer Type: Ribbon,double Ribbon Blender
Application: Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine Product Type: Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic
Dimension: 270*100*150cm Power: 11KW
High Light:

Stainless Steel Double Ribbon Blender

,

11KW double ribbon blender

,

1000L Horizontal Mixer Machine

Horizontal Stainless Steel Double Ribbon Blender Mixer Machine



Horizontal Ribbon Mixer



General Introduction

Horizontal Ribbon mixer is a brand-new mixer. It is characterized in high efficiency, high degree of homogeneity, high load coefficient, low energy consumption, low pollution, little destruction to frangible material. It is suitable for mixing a wide range of materials such as powder-powder, power-liquid, especially for paste, thick materials.
Horizontal Ribbon mixer is composed of container, screw stirring paddles and transitional parts: the screw paddle are generally made into 2 layers or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing of powder which needs to add liquid, and paste material.



Technical Parameters



Model WLDH-0.5 WLDH-1 WLDH-2 WLDH-3 WLDH-4 WLDH-6
Capacity (kg/batch) 250 500 1000 1500 2000 3000
Volume
(L)
500 1000 2000 3000 4000 6000
Rotating
(rpm)
≤42 ≤42 ≤42 ≤42 ≤42 ≤42
Power
(kW)
5.5 11 18.5 22 30 37
Dimension
(cm)
230*80*130 270*100*150 340*120*175 350*140*205 420*145*210 480*165*235
Weight
(kg)
1000 1500 2300 3200 4100 5200


11KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine 011KW Stainless Steel Double Ribbon Blender 1000L Horizontal Mixer Machine 1

Working principle

The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention.The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.





Main Features

1) Horizontal tank body, need small space but more capacity.
2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3) Gear box drive the auger shaft , low noise and low malfunction, long using life.
4) U-Shape tank bottom, better for material discharge and cleaning.
5) Pneumatic cylinder to control the discharge exit.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
6) Heating,cooling function can be realized.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
7) Customized ribbon blender available. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating.



Specifications Configuration



1. Optional Stirrer

a. Ribbon is suitable for powder and material with closing density, and needs more force during mixing.

b. Paddle suits granule like rice, nuts, beans etc. It’s also used to mix powder with big difference in density.



2. Material

Material options SS304 and SS316L. The surface treatment of stainless steel, including coated teflon, wire drawing, polishing and mirror polishing, can be used in different ribbon blender parts.



3. Discharge Type

The ribbon blender discharge valve can be driven manually or pneumatically. Optional valves: cylinder valve, butterfly valve etc.



4. Selectable Function

Ribbon blender sometimes needs to be equipped additional functions because of customer requirements, like jacket system for heating and cooling, weighing system, dust removal system, spray system and so on.



5. Optional

a. Adjustable speed: Powder ribbon blender machine can be customized into speed adjustable by installing a frequency converter.

b. Loading system: In order to make the operation of industrial ribbon blender machine more convenient, stairs for small model mixer, working platform with steps for larger model mixer, or screw feeder for automatic loading are all available.

c. Production line: Double ribbon blender can works with screw conveyor, hopper and auger filler to form production lines.





FAQ



Q: Are you real factory or trading company?

A: Yes ! We are real and most reliable factory here. Welcome you visit us anytime!



Q: What machine your company have? Can customized machine upon my needs?

A: Yes, we also produce crusher, grinder, mixer, dryer, packaging, vibrating sifter, conveyor, etc. We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.



Q: Can you give me guide on other machine? To full my production line.

A: Yes ! Our company have build more than 10 years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!


Q: What's your before & after service?

1) Professional advice and rich experience help to choose machine.

2) Longtime maintainance and considerate technical support

3) Technicians can be sent to abroad to install.

5) ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).

4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.

5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.



Q: What's your shipping item process?

A: We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need , we can help you do custom clearance .



Q: Packaging Details:

1) Outside package: Standard export wooden packaging.
2) Inner package: Stretch film.



Q: Delivery Details:

A: Machine will be finished in about 25 workdays after payment.



Q: How about your payment term?

A: Normally we can work on T/T , 50% down payment is required in advanced. And 50% balance shall be settled before shipment.
