Product Details:
|
| Name: | Horizontal Ribbon Mixer | Voltage: | Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V |
|---|---|---|---|
| Material: | SUS304 316 | Mixer Type: | Ribbon,double Ribbon Blender |
| Application: | Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine | Product Type: | Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic |
| Rotating: | 42rpm | Power: | 22KW |
| High Light: | 316 Ribbon Blender Mixer Machine,SUS304 Ribbon Blender Mixer Machine,Protein ribbon blender powder mixer |
||
Protein Powder Ribbon Mixer SUS304/316 Blender Mixing Machine

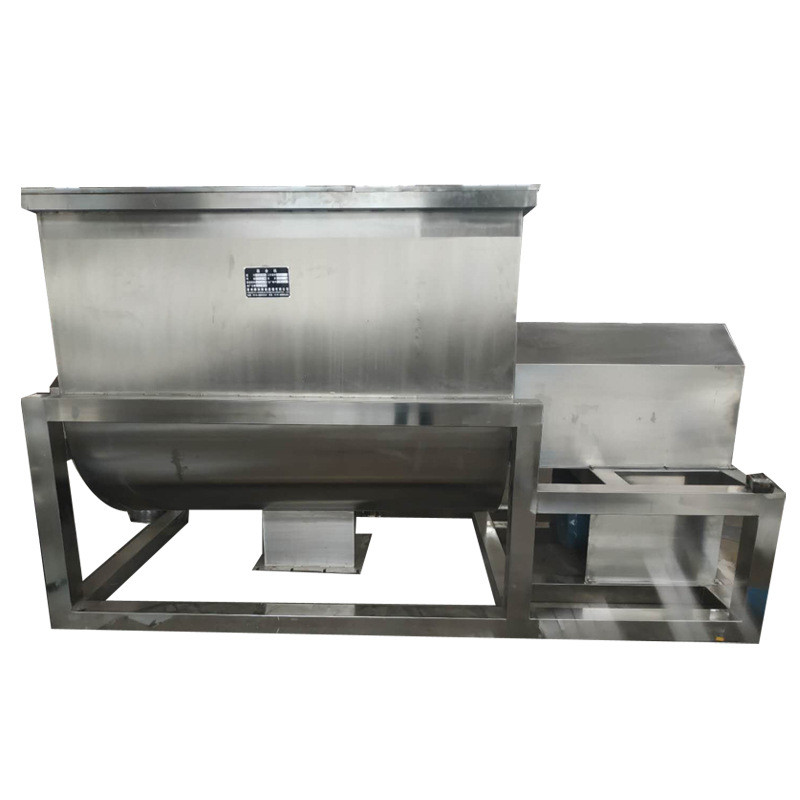

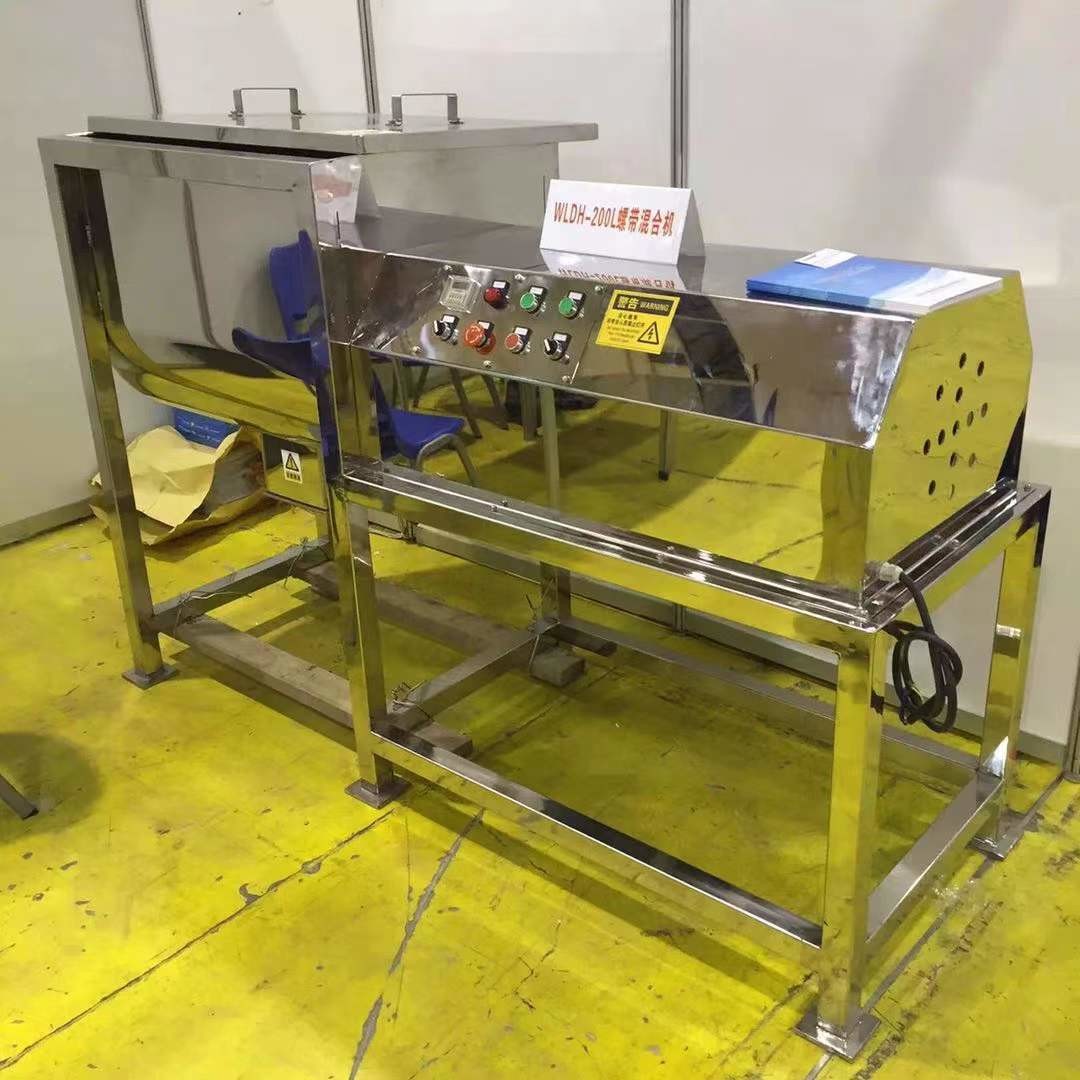

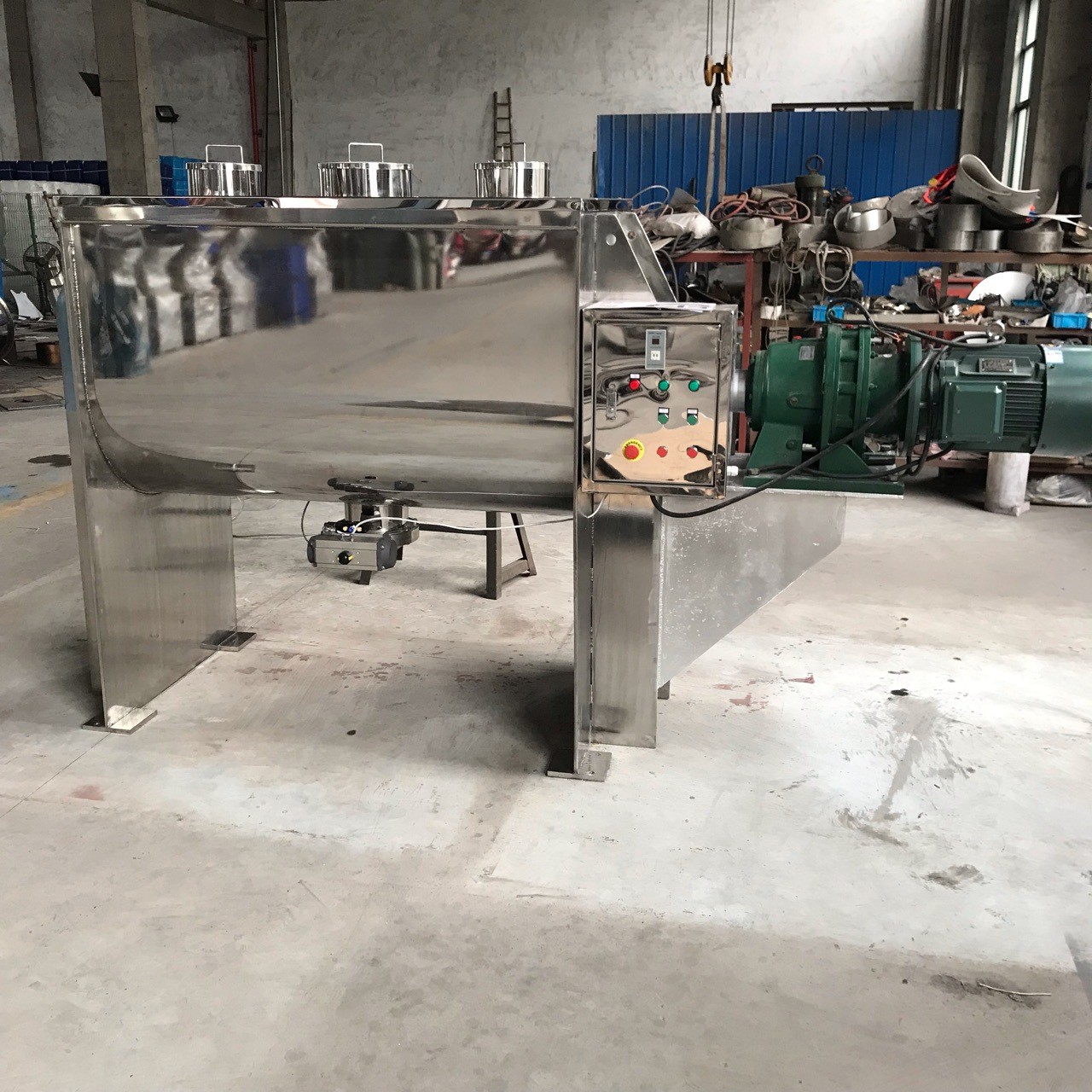

Horizontal Ribbon Mixer
Introduction
Horizontal ribbon mixer consists of transmission parts, double ribbon agitators and U-shape chamber. It's a multifunctional mixing equipment of stable operation, reliable quality, low noise, long life, easy installation and maintenance.
Application
This machine mainly applies to food, daily chemical, seasoning, pesticides and other industries.Such as milk power, corn powder, soybean milk powder, herbs, cereals, condiments, spices, food additives, salt, chilli power, coffee, milk tea, flour and etc.
Working Principle
The horizontal ribbon mixer is under the action of the internal and external ribbons on the stirring shaft to turn the materials within the scope of the barrel. The inner spiral belt pushes the material from the middle to the sides of the cylinder, and the outer spiral belt pushes the material from the sides of the cylinder to the center. Convection circulation. Due to the agitation of the above movement, the materials are quickly and evenly mixed in a short time, so it is a high-efficiency mixing device with wide application, strong adaptability and good effect.
Technical Parameters
| Model | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 |
| Capacity (kg/batch) | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
| Volume (L) |
500 | 1000 | 2000 | 3000 | 4000 | 6000 |
| Rotating (rpm) |
≤42 | ≤42 | ≤42 | ≤42 | ≤42 | ≤42 |
| Power (kW) |
5.5 | 11 | 18.5 | 22 | 30 | 37 |
| Dimension (cm) |
230*80*130 | 270*100*150 | 340*120*175 | 350*140*205 | 420*145*210 | 480*165*235 |
| Weight (kg) |
1000 | 1500 | 2300 | 3200 | 4100 | 5200 |
Specifications Configuration
1.Optional Stirrer
a.Ribbon is suitable for powder and material with closing density, and needs more force during mixing.
b.Paddle suits granule like rice, nuts, beans etc. It’s also used to mix powder with big difference in density.
2.Material
Material options SS304 and SS316L. The surface treatment of stainless steel, including coated teflon, wire drawing, polishing and mirror polishing, can be used in different ribbon blender parts.
3.Discharge Type
The ribbon blender discharge valve can be driven manually or pneumatically. Optional valves: cylinder valve, butterfly valve etc.
4.Selectable Function
Ribbon blender sometimes needs to be equipped additional functions because of customer requirements, like jacket system for heating and cooling, weighing system, dust removal system, spray system and so on.
5.Optional
a.Adjustable speed: Powder ribbon blender machine can be customized into speed adjustable by installing a frequency converter.
b. Loading system: In order to make the operation of industrial ribbon blender machine more convenient, stairs for small model mixer, working platform with steps for larger model mixer, or screw feeder for automatic loading are all available.
c. Production line: Double ribbon blender can works with screw conveyor, hopper and auger filler to form production lines.
