CE Glucose Vibrating Fluid Bed Dryer 120-140kg/H Salt Drying Machine
Product Details
CE Glucose Vibrating Fluid Bed Dryer
,vibrating fluid bed dryer 120kg/H
,Glucose 140kg/H Salt Drying Machine
CE certified Salt Drying Machine Glucose Vibrating Fluid Bed Dryer

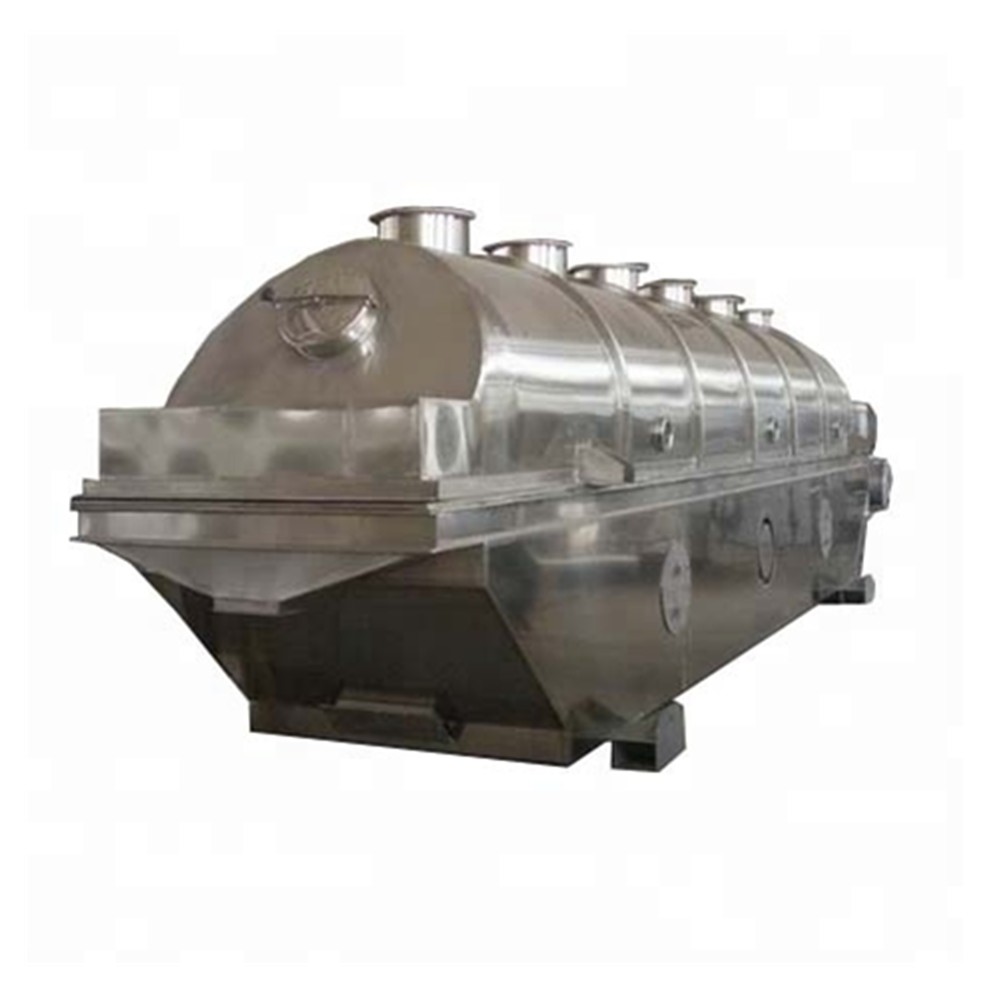

Vibrating Fluidized Bed Dryer

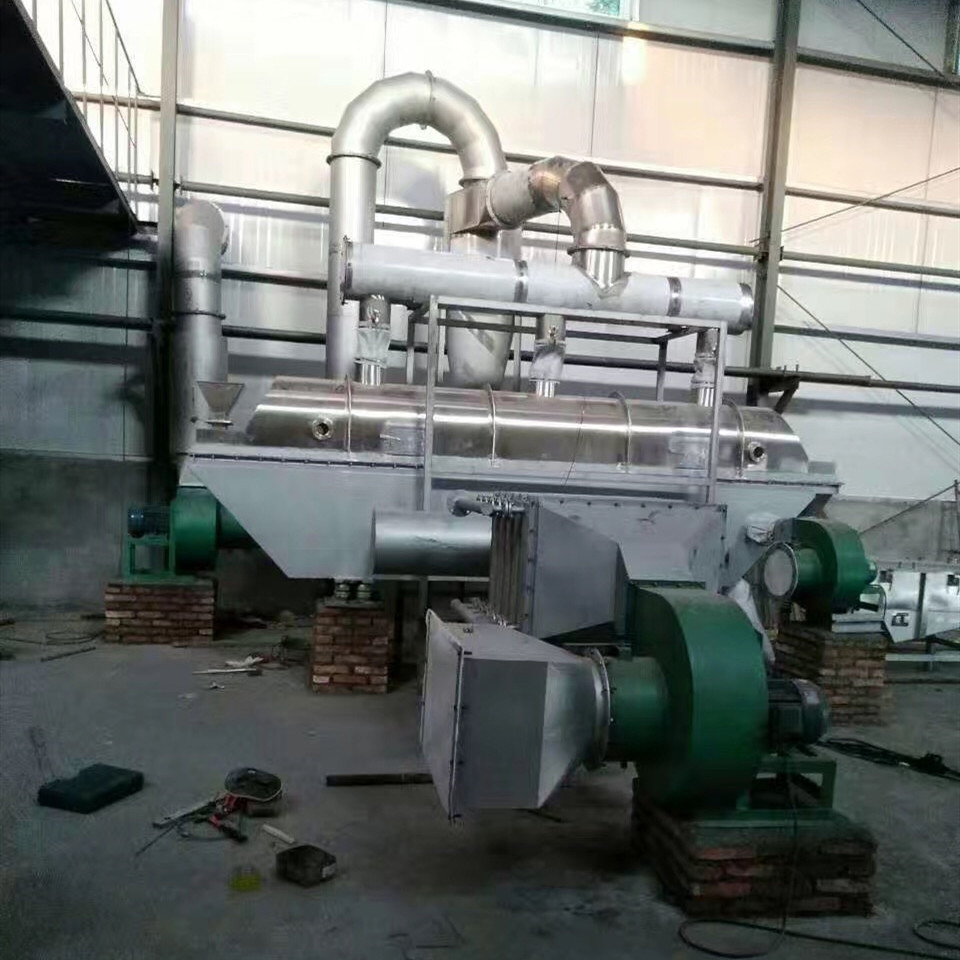

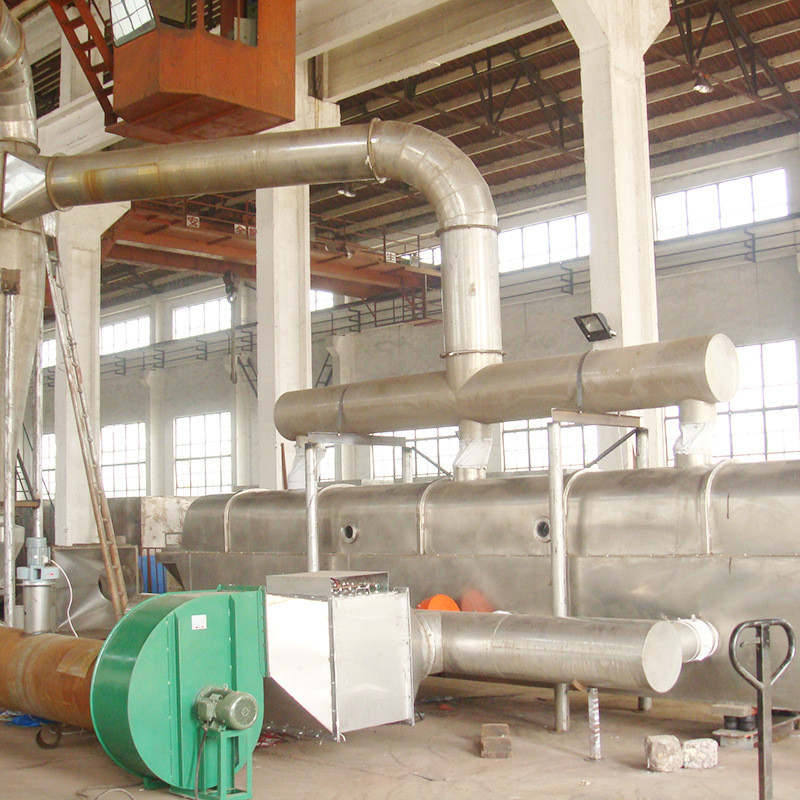

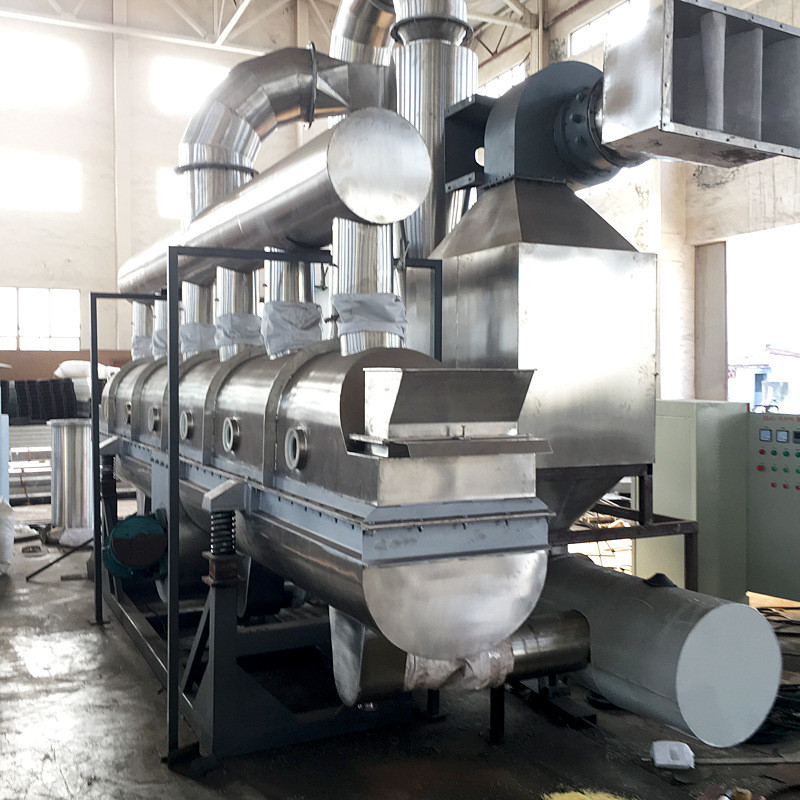

ZLG vibrating fluidized bed dryer is widely used in chemical industry, light industry, medicine, food, plastic, grain, oil, slag, salt, sugar and other industries of powder granule material drying, cooling, humidification and other operations. The material enters the machine from the feed port. Under the action of vibration force, the material is thrown along the horizontal direction and moves forward continuously. After the hot air passes through the fluidized bed upward and exchanges heat with the wet material, the wet air is discharged through the exhaust outlet after being dedusted by the cyclone separator, and the dry material is discharged from the discharge port.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
Main Features
Vibration source is driven by vibration motor, stable operation, easy maintenance, low noise, long life, easy maintenance.
High thermal efficiency, compared with the general drying equipment can save energy more than 30%.The temperature distribution of the bed is uniform, without local overheating, fluidization symmetry and dead Angle.
Good adjustability, wide adaptability; the thickness of material layer, internal moving speed and full amplitude can be changed uniformly, which can realize stepless adjustment.
It has little damage to material surface and can be used for drying fragile materials.The work effect is not affected when the particle size is irregular.
The fully enclosed structure can effectively prevent the empty fork between material and air from infecting the clean working environment.
When it is used in mass production of high moisture materials, multiple sets can be connected in series to meet the requirements of users (typical materials: polyacrylamide, etc.).
Application
Industrial vibration fluidized bed dryer applicable to chemical, pharmaceutical, food, dehydrated vegetables, food, minerals and other industries powder, granular materials, dry, cooling and other operations.
Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, radish l, silk, soybean meal, lees, seeds, slag, sugar.
-
