Product Details:
|
Name: | Vibrating Fluidized Bed Dryer | Capacity: | 100-130kg/h Water Evaporation |
---|---|---|---|
Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
Warranty: | 1 Year | Condition: | New |
Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
High Light: | 450v Vibrating Fluid Bed Dryer,220v Vibrating Fluid Bed Dryer,vibrating fluid bed dryer 130kg/h |
Hydroquinone Lactose Soybean Powder Vibrating Fluid Bed Dryer

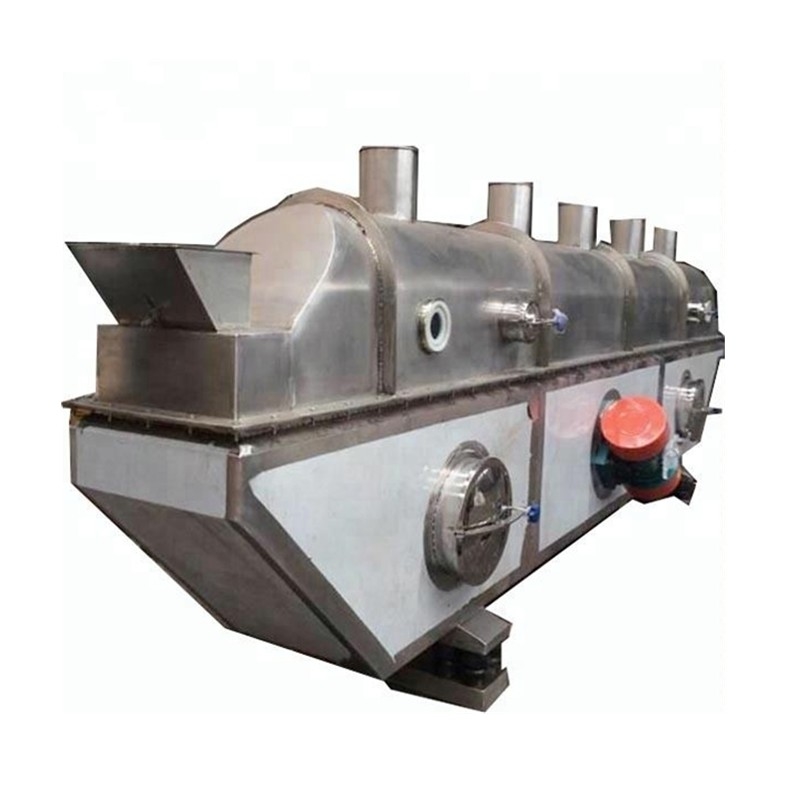

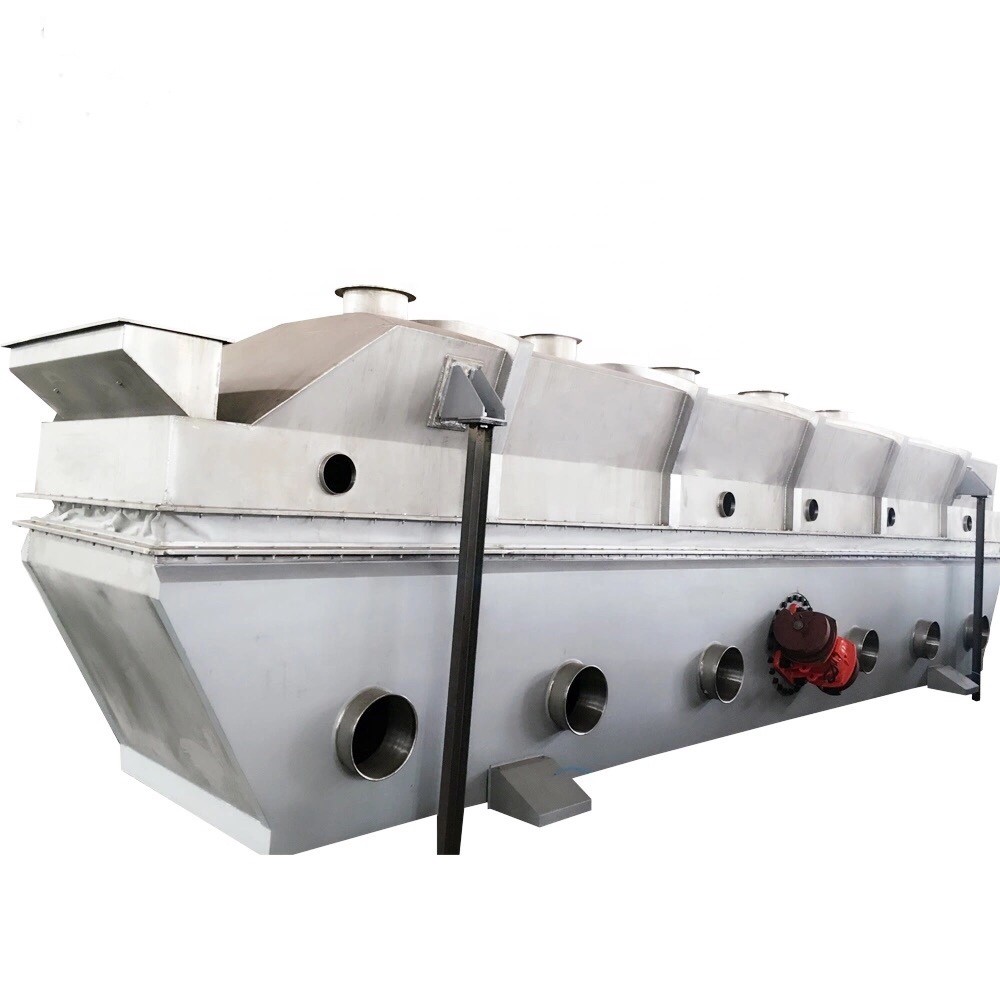

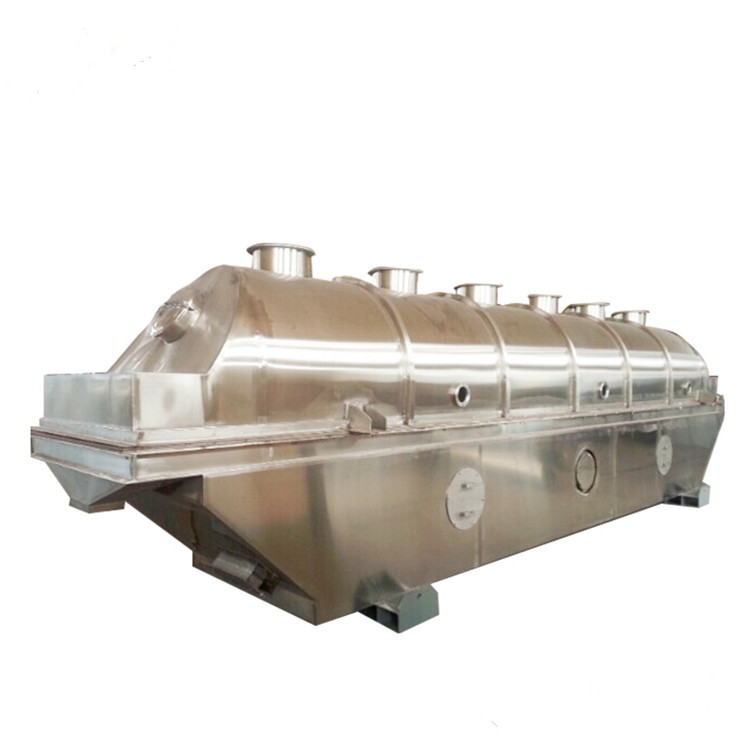

Vibrating Fluidized Bed Dryer
Vibrating fluidized bed dryers are widely used in the drying, cooling, and humidification of powders in the chemical, light industry, medicine, food, plastic, grain and oil, slag, salt, sugar and other industries.
Principle:

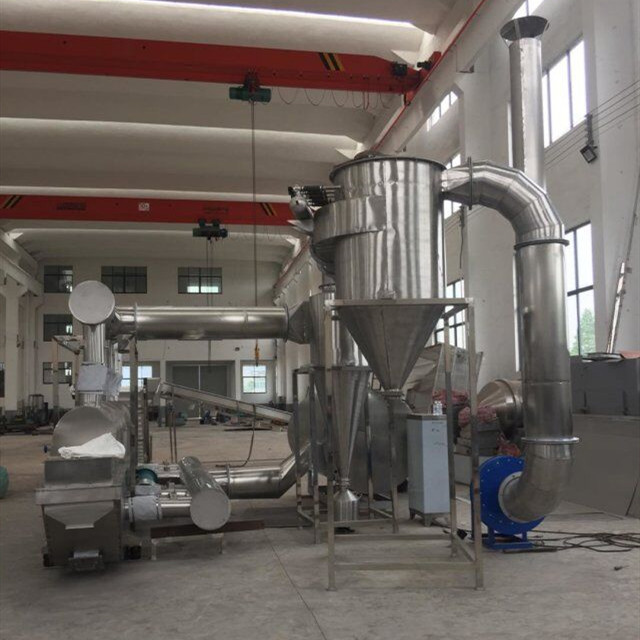

The material enters the machine from the feed port. Under the action of the vibration force, the material is thrown forward continuously in the horizontal direction. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator and is discharged from the exhaust port. ; Dry materials are discharged from the discharge port.
Technical parameters
Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Features:
Driven by a vibrating motor; stable operation, low noise, long life, and convenient maintenance. High thermal efficiency; it can save more than 30% energy compared with general drying devices. The bed temperature distribution is uniform; there is no local overheating phenomenon; the fluidization is uniform; there is no dead angle phenomenon; the thickness of the material layer and the moving speed and amplitude of the machine can be adjusted within the design range; the adjustability is good; the application area is wide. It has little damage to the surface of the material; it can be used for drying fragile materials; it can also be used when the material particles are irregular without affecting the effect. Adopt a fully enclosed structure; effectively prevent cross-contamination of materials with the outside world;
The environment is clean; continuous operation is possible. When high-moisture materials are used for mass production; multiple units can be connected in series to meet the requirements.
Advantages:
Heat source: biomass, electricity,steam,gas,coal(Option)
1. the equipment drying time is short, the general effective ingredients will not be destroyed.
2. adjustable weir plate is set at the discharge port, by adjusting the height of the weir plate, you can control stayed drying time of the material so as to make sure that final water content of materials meets the requirements.
3. perforated plate adopts back pressure process to ensure flatness of perforated plate, to avoid the deadline in the process of material running.
4. there are multiple wind inlet to the lower bed, so that the hot air through the material layer is more uniform.
5. the whole electric heating treatment is applied to the lower bed after its completion of production, eliminating the welding gravity, improving the strength of the bed, thick-walled seamless tube is applied to the internal to strengthen the evenly vibration force.
Brief drawing
