Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 160-210kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Power: | 3.0*2KW | OEM: | Yes |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | Corn Germ continuous fluid bed dryer,7.5*0.9M continuous fluid bed dryer,fluid bed dryer in pharmaceutical industry |
||

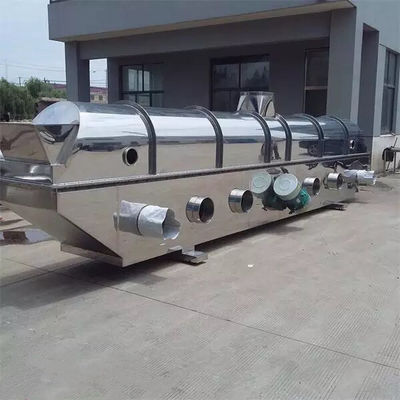

High Output Corn Germ Vibrating Fluidized Bed Dryer Continuous Drying Machine

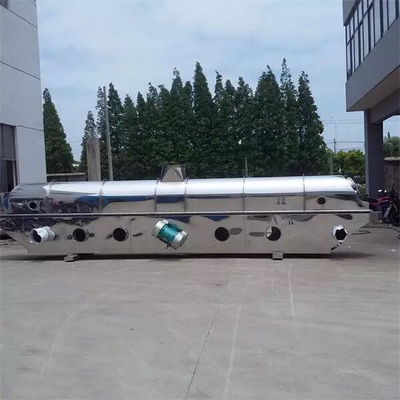

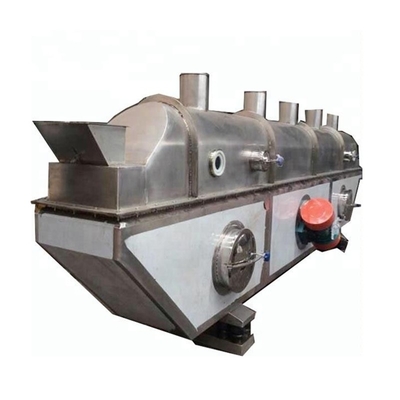

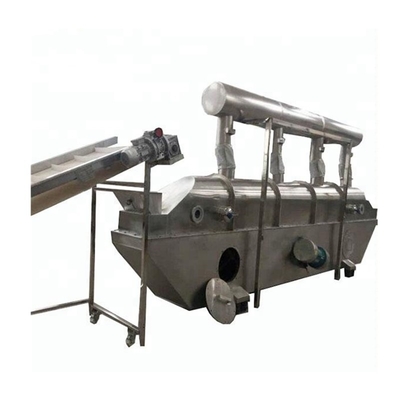

Vibrating Fluidized Bed Dryer
Product Application
A fluidized bed is a device that suspends a large number of solid particles in a moving fluid so that particles have some apparent characteristics of the fluid. This fluid-solid contact state is called solid fluidization. This device is called a fluidized bed. Fluidized beds are widely used in salt drying and cooling. Fluidized beds are usually divided into fixed fluidized beds, internal heating fluidized beds and vibrating fluidized beds. Uniform fluidization greatly reduces energy consumption, wear between particles and dust entrainment; uniform distribution of material residence time can be considered as "piston flow", and residence time is easy to adjust and control, so very ideal moisture content of products can be obtained.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
Main Features
Crushed washing refined salt equipment line include: stainless steel elevator, mixer, conveyor, crusher, salt washing machine, iodize machine, centrifuge and drying machine, dust remover, packing machine and etc.
For the capacity of the production line, we can produce based on customers' requirement. The capacity is 1-10ton/hour.
Advantage of our equipment line:
1. The high quality refined salt product has high purity, shiny appearance, good free liquidity and stable iodine content.
2. Low loss, the loss of NaCl is under 10%.
3. Low energy consumption and investment.
4. Equipment has long service life, easy to operate and maintain.
Working principle
Vibrating fluidized bed means applying mechanical vibration to the fluidized bed. Adjust the vibration parameters so that the normal fluidized bed with severe backmixing can obtain ideal plug flow in continuous operation. At the same time, due to the introduction of vibration.

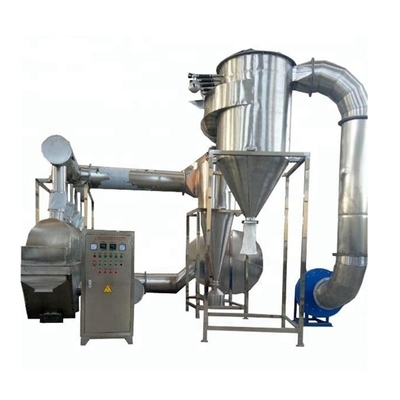

The material enters the machine from the vibrating and fluidized feed port. Under the action of the vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. The hot air passes through the screen plate upward from the lower box and exchanges heat with the wet material. , the wet air is discharged from the exhaust port after being dedusted by the cyclone separator, and the dry material is discharged from the discharge port.
Scope of application
This series of dryers are drying equipment designed by the principle of vibration flow Taihua. They are suitable for drying various loose powder and granular materials, and are widely used in food, chemical, pharmaceutical, building materials and other industries.
