Product Details:
|
| Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
|---|---|---|---|
| Product Name: | Hot Air Drying Oven | Type: | Drying Oven |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Material: | Stainless Steel | Color: | Silver |
| High Light: | Hot Air Circulation Tray Dryer,Pumpkin Seed Hot Air Oven Dryer,Automatic Hot Air Tray Dryer |
||
Low price Automatic Pumpkin Seed Hemp Flower Hot Air Circulation Tray Dryer

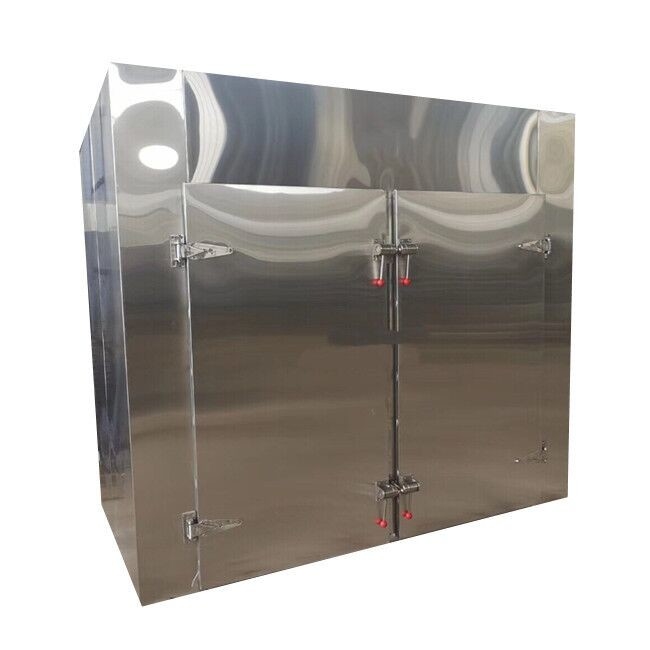

Hot Air Oven Dryer
Internal structure

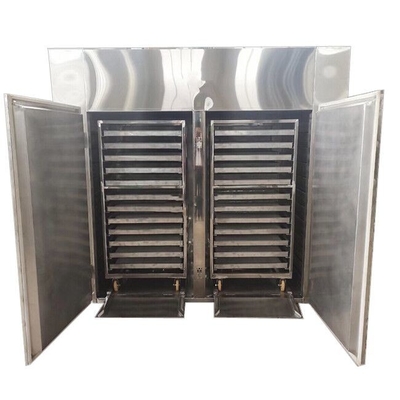

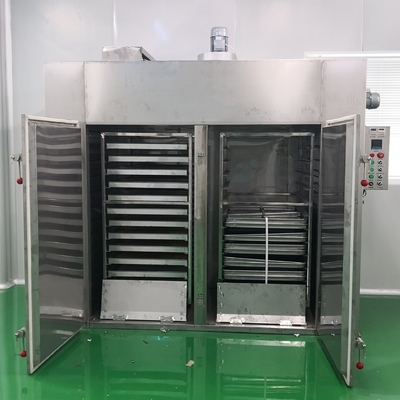

CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are placed on top of each other in trolleys.
In drying process, fresh cold air is sucked into the drying chamber by the circulation fan and flows through the steam radiator or electrical heating tubes installed at the top to get required temperature. With the help of air distributor, the hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to the circulation fan for next drying circulation while part of the damp air is exhausted for energy saving. The drying process is batch type. When the drying is finished, open the chamber door and pull out the trolleys for unload the dried product.
Main features
1. For drying or heating slurry, paste, cake, powder, granule or sliced materials in various kinds of industries
2. Drying temperature: RT-300 degree C (adjustable)
3. Tray quantity: 12-192 trays
4. GMP design is available
5. Heat source can be steam, electricity, hot water, hot oil or gas/oil/coal/boimass fired hot air generator
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |

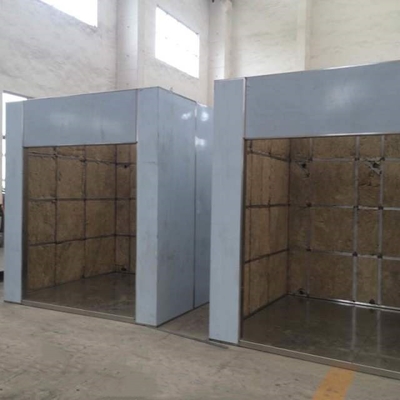

1. The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.
2. Due to the specially designed air distributor, the hot air flow in each layer of trays is very uniform. The temperature difference inside the drying chamber is less than ±2 ℃.
3. Most of the hot air circulates inside the well insulated drying chamber and only part of it is exhausted via the exhaust valve. The amount of exhaust air is adjustable according to different drying conditions.
4. The heat source can be steam, hot water, electricity, thermal oil, oil/gas/coal/biomass fired hot air generator to match with different working conditions.

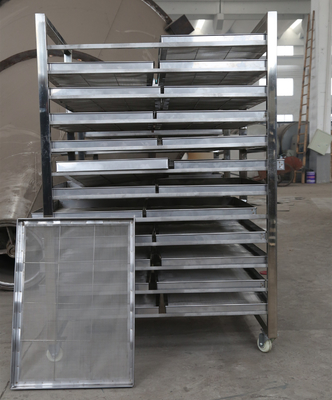

5. Standard sized (640x460x45mm) but different types of trays are available for different kinds of wet materials.

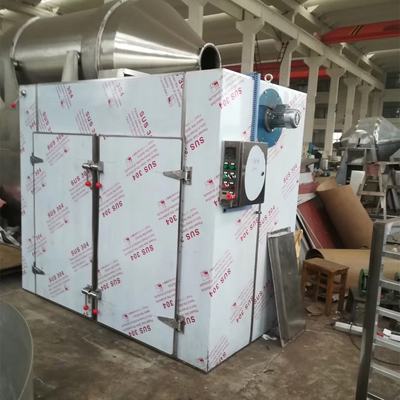

6. Control cabinet is installed on drying chamber which can accurately control and set drying temperature and hot air flow rate.
7. The drying chamber is fully welded, mirror polished without dead corners for cleaning to meet GMP standard.
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our tray dryer can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to dry
2) Moisture content before drying
3) Target moisture content in dried product
4) Process capacity in kg/batch
5) What heat source you plan to use
Q: How the dryer will be delivered ?
A: The dryer is packed in plywood box for shipping
