Product Details:
|
| Name: | Hot Air Oven Dryer | Voltage: | 220v/380v |
|---|---|---|---|
| Warranty: | 1 Year | Type: | Drying Oven |
| Material: | Stainless Steel | Color: | Silver |
| Condition: | New | Usage: | Reduce Material's Moisture |
| High Light: | 140C Silver tray drying oven,hot air circulating oven 3kW/H,5kW/H Electric Tray Dryer |
||

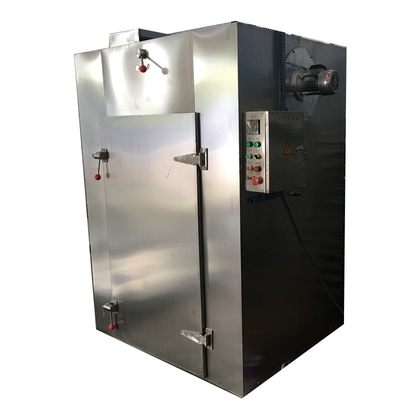

Sliver Hot Air Circulating Tray Drying Oven with High Efficiency Energy Consumption
Hot Air Oven Dryer
Machine Parts

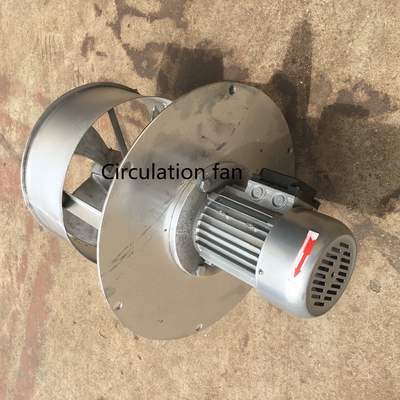

Name: High performance circulation fan
Brand: Others
Original: China
Domestic famous brands, strong driving force, large capacity air volume, low fuel consumption, high economic benefits
Power: 0.45kW
Name: stainless steel control panel
Brand: Others
Original: China
Intelligent control box, made of 304 stainless steel, manual control, high performance.
Temperature, time, heating, fan settings are integrated here.
All electrical parts are either Siemens or Chint or Schneider brand.

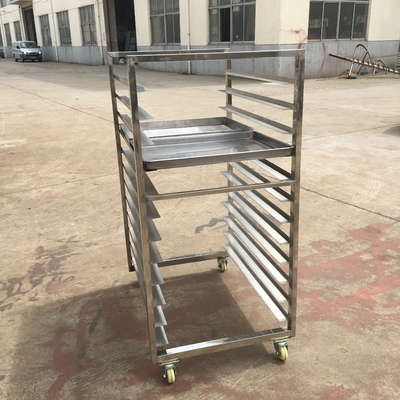

Name: Rack or trolley with universal wheels
Material: stainless steel
Original: China
Strong rack made of 304 stainless steel with best universal bearings of high bearing capacity.

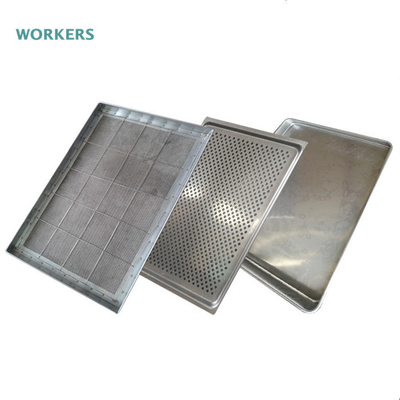

Name: Tray
Material: 304 or 316L stainless steel
Original: China
We have many types of tray for your option: solid flat tray, hand made net tray, perforated tray, and any other size to be tailored to your requirements;
Product Features
1. Options of heat source: steam, electricity, far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130°C, Max.140°C.
3. Machine use the automatic control system and computer control system
4. Automatic control system and computer control system are available for users to choose from.
5. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)
6. For CT-C-O, electric heated, rated power consumption:9kW, real consumption: 3-5kW/h.
7. For operation temperature of over 140°C or less than 60°C, please indicate when ordering.
8. The size of the baking trays of the factory's ovens is uniform, interchangeable, and supports non-standard customization.
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Packing detail
The normal package is plywood box.
If exported to countries which have strict requirements of packaging, like European countries or Australia , the wooden box will be fumigated.
If machine has to be loaded into container directly, we will use PE film for packing or pack it according to customers special request.
Why choose us
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences.Over ten years extensive experience in design and production;Innovative engineers, well trained technicians;A full-time after-sales service team;Guaranteed quality with competitive prices.
