Product Details:
|
Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
---|---|---|---|
Type: | Drying Oven | Condition: | New |
Voltage: | 220v/380v | Power(w): | 15kw |
Warranty: | 1 Year | Weight: | 1500kg |
High Light: | 380V 6 Rack Hot Air Oven Dryer,220V 6 Rack Hot Air Oven Dryer,Cassava Broccoli Dehydrator Dryer |
Hot Air Circulating Dryer for Broccoli Cauliflower Cassava Dehydrator with Energy Saving

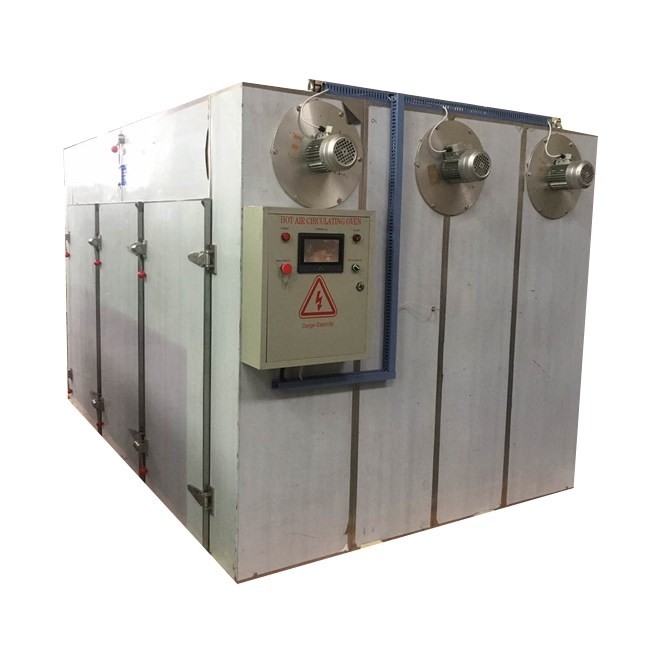

Hot Air Oven Dryer
Main Feature
1. Most of the hot air inside the loop, high thermal efficiency, energy conservation
2. The use of forced ventilation box with adjustable air divider plate, uniform drying, the heat source can be steam, oil, electricity, hot water, far infrared and so on
3. Small machine noise, running balance, the temperature automatically controlled, easy installation and maintenance
4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment
The hot air circulation drying oven is mainly composed of heat pump dryer and drying chamber with 360-degree plane air supply structure.It can be used for drying agricultural products, including fruits, vegetables, condiments, Chinese medicinal materials, drinks, etc. Typical Raw Materials : Fruit: wolf berry,red jujube,grape,lemon Vegetable: red chili,potato,konjac,garlic
Beverages:rose,honeysuckle,chrysanthemum Condiments:pepper,anise
The above raw materials are just the regular materials with good comments from customers that we had applied to dry and this dryer also can be used in other fileds such as pharmacy chemical etc.
Technical parameters
MODEL |
ELECTRIC POWER |
FAN POWER |

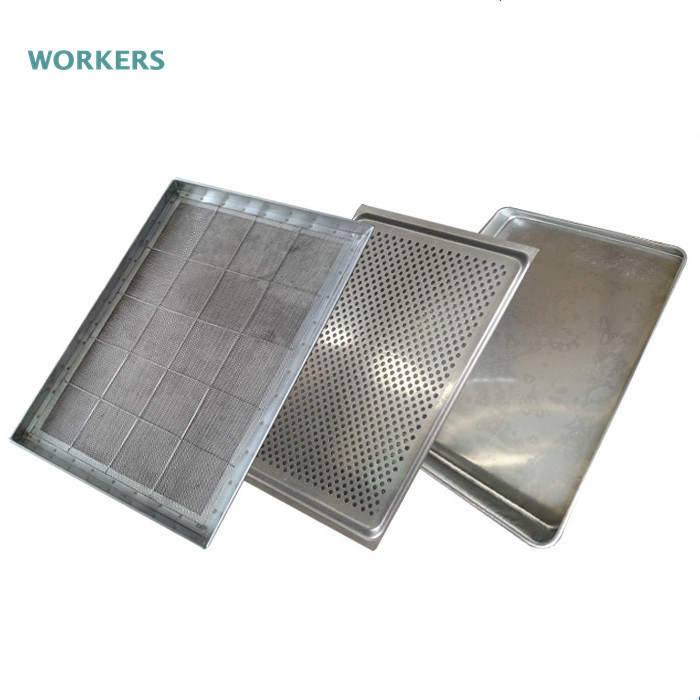

TRAY |
TRAY AND RACK |

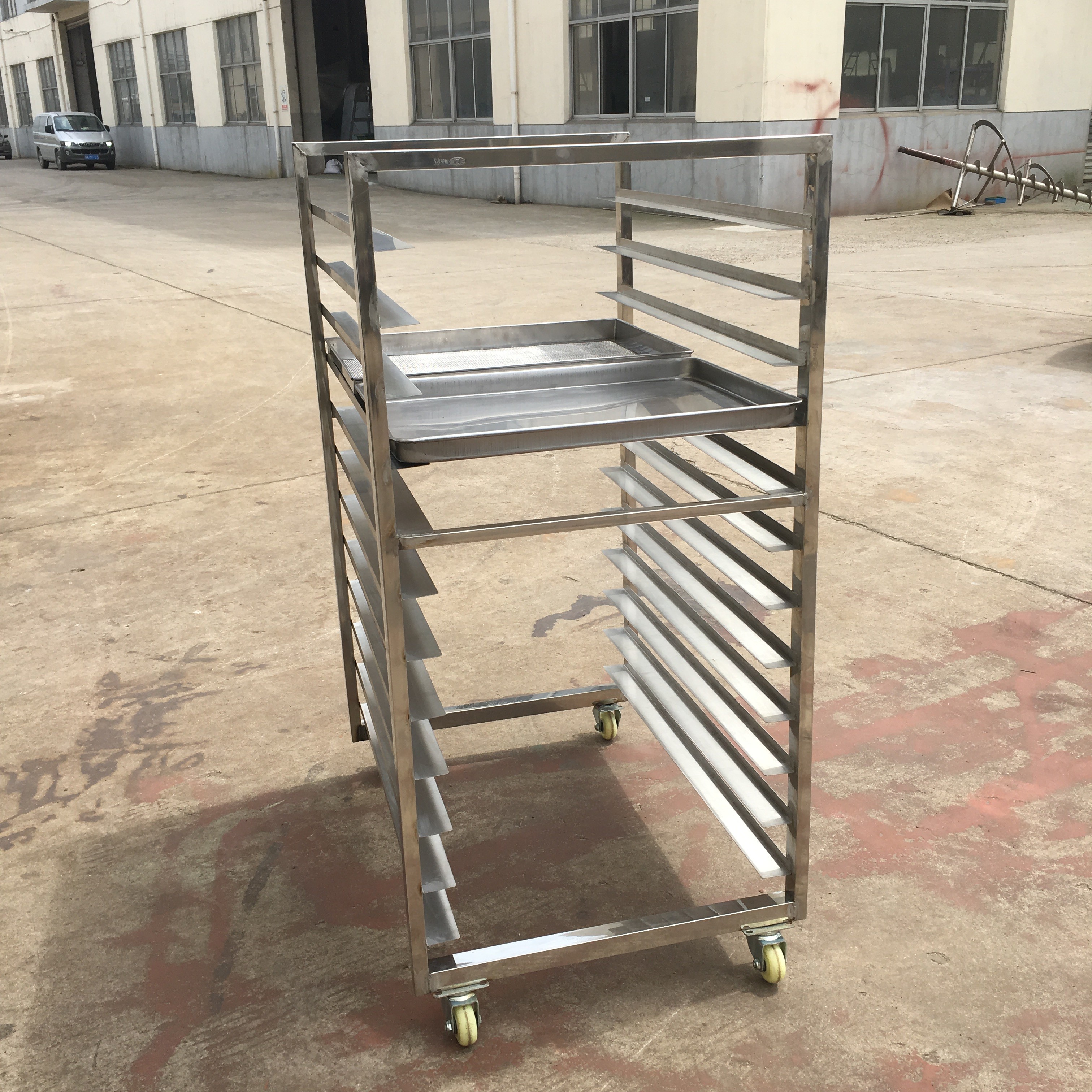

RACK |
DIMENSION |
WEIGHT |
MATERIAL |
WKS-1 |
6~9 |
0.45 |
24 |
640*460*45 |
1 |
1400*1200*2000 |
400 |
304 stainless steel |
WKS-2 |
9~15 |
0.45 |
48 |
2 |
2300*1200*2000 |
600 |
||
WKS-3 |
15~30 |
0.9 |
96 |
4 |
2300*2200*2000 |
900 |
||
WKS-4 |
15~45 |
1.35 |
144 |
6 |
3660*2300*2000 |
1500 |
||
WKS-5 |
15~60 |
1.8 |
192 |
8 |
5000*2250*2100 |
2000 |
||
The heat source can be electricity, gas, steam, thermal oil, etc. |
