192 Tray Black Pepper Drying Equipment Chrysanthemum Flower Bud Drying Machine
Product Details
192 Tray Black Pepper Drying Equipment
,2100mm Black Pepper Drying Equipment
,Chrysanthemum Flower Bud Drying Machine
Hot Air Circulating Chrysanthemum Dryer for Flower Bud Black Pepper Drying Equipment

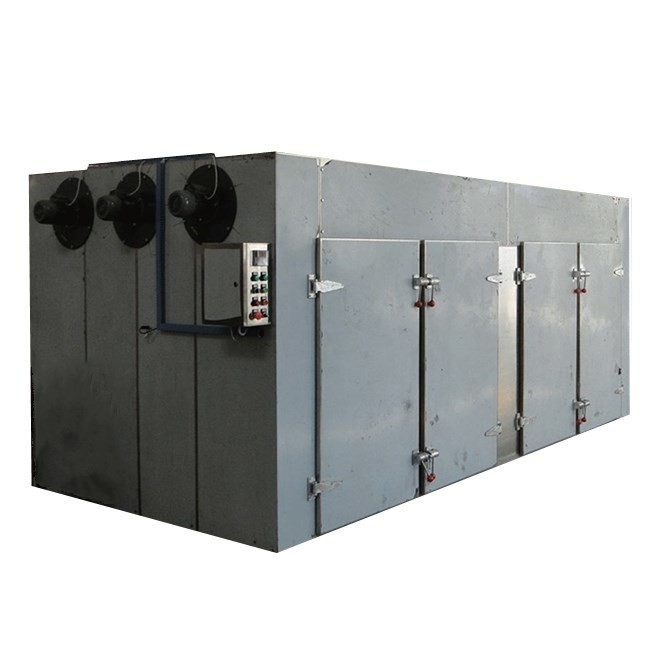

Hot Air Oven Dryer
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and it is a common drying equipment.
Main Feature
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 ℃ , Max.140 ℃ .
3. Electricity and far infrared:50-300 ℃ .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8 Mpa(2-8 bar).
5. For CT-C-I, electric heated, rated power consumption:15 Kw, real consumption : 5-8 Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 ℃ or less than 60 ℃ , please indicate when order.

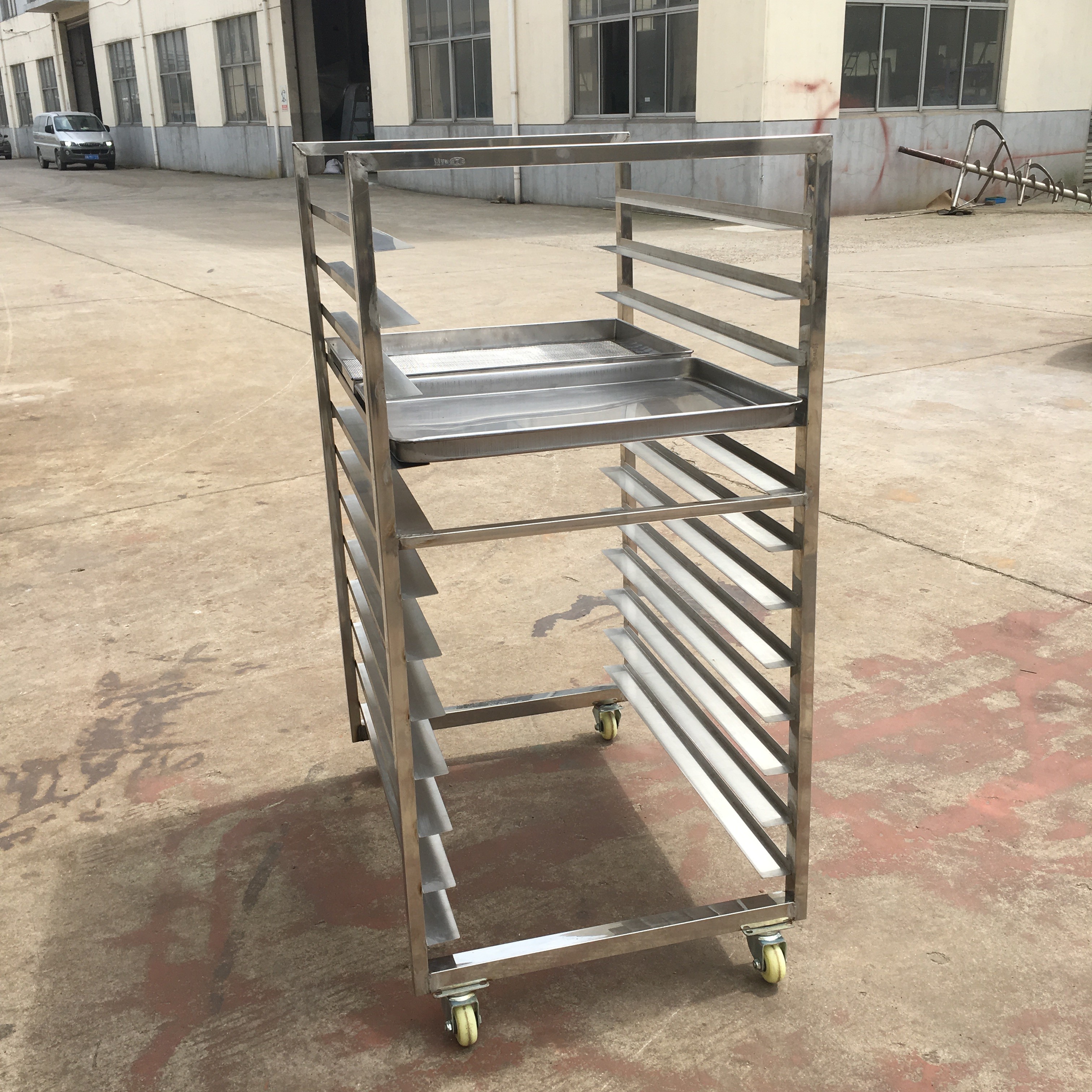

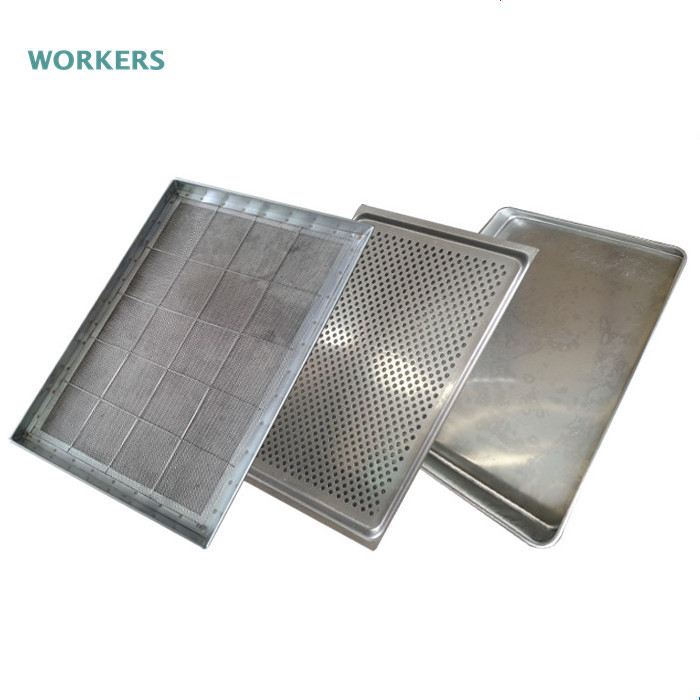

9. The trolleys and trays of each dryer model made by our factory are uniform in dimensions
Technical parameters
|
MODEL |
ELECTRIC POWER |
FAN POWER |
TRAY |
TRAY AND RACK |
RACK |
DIMENSION |
WEIGHT |
MATERIAL |
|
WKS-1 |
6~9 |
0.45 |
24 |
640*460*45 |
1 |
1400*1200*2000 |
400 |
304 stainless steel |
|
WKS-2 |
9~15 |
0.45 |
48 |
2 |
2300*1200*2000 |
600 |
||
|
WKS-3 |
15~30 |
0.9 |
96 |
4 |
2300*2200*2000 |
900 |
||
|
WKS-4 |
15~45 |
1.35 |
144 |
6 |
3660*2300*2000 |
1500 |
||
|
WKS-5 |
15~60 |
1.8 |
192 |
8 |
5000*2250*2100 |
2000 |
||
|
The heat source can be electricity, gas, steam, thermal oil, etc. |
||||||||
Q&A
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4)Heating source(electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE ISO etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through
video conference.
5. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
6. How long is the construction period?
It's about 10 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
7. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
-
