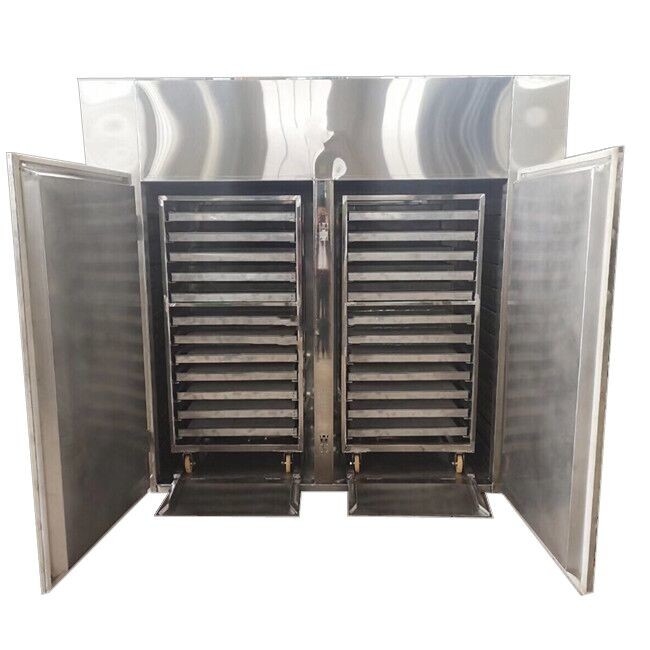

9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine

9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine
9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine
9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine

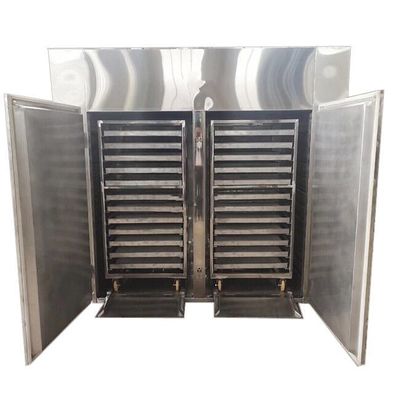

Large Image :  9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine

Product Details:
Place of Origin: China
Brand Name: WKS
Certification: CE
Model Number: WKS-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: 10-30 working days
Payment Terms: T/T
Supply Ability: 10 sets/month

9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine

Description
Name: Hot Air Oven Dryer Usage: Reduce Material's Moisture
Installation: Under Technician's Guidance Material: Stainless Steel
Application: Medicine Processing Product Name: Hot Air Drying Oven
Type: Drying Oven Condition: New
High Light:

15KW Chemical Hot Air Tray Dryer

,

9KW Chemical Hot Air Tray Dryer

,

304SS Industrial Fruit Dehydrator Machine

Hot Air Circulation Dryer Industrial food Fruit Chemical Dehydrator Machine Tray Dryer



Hot Air Oven Dryer



Introduction:

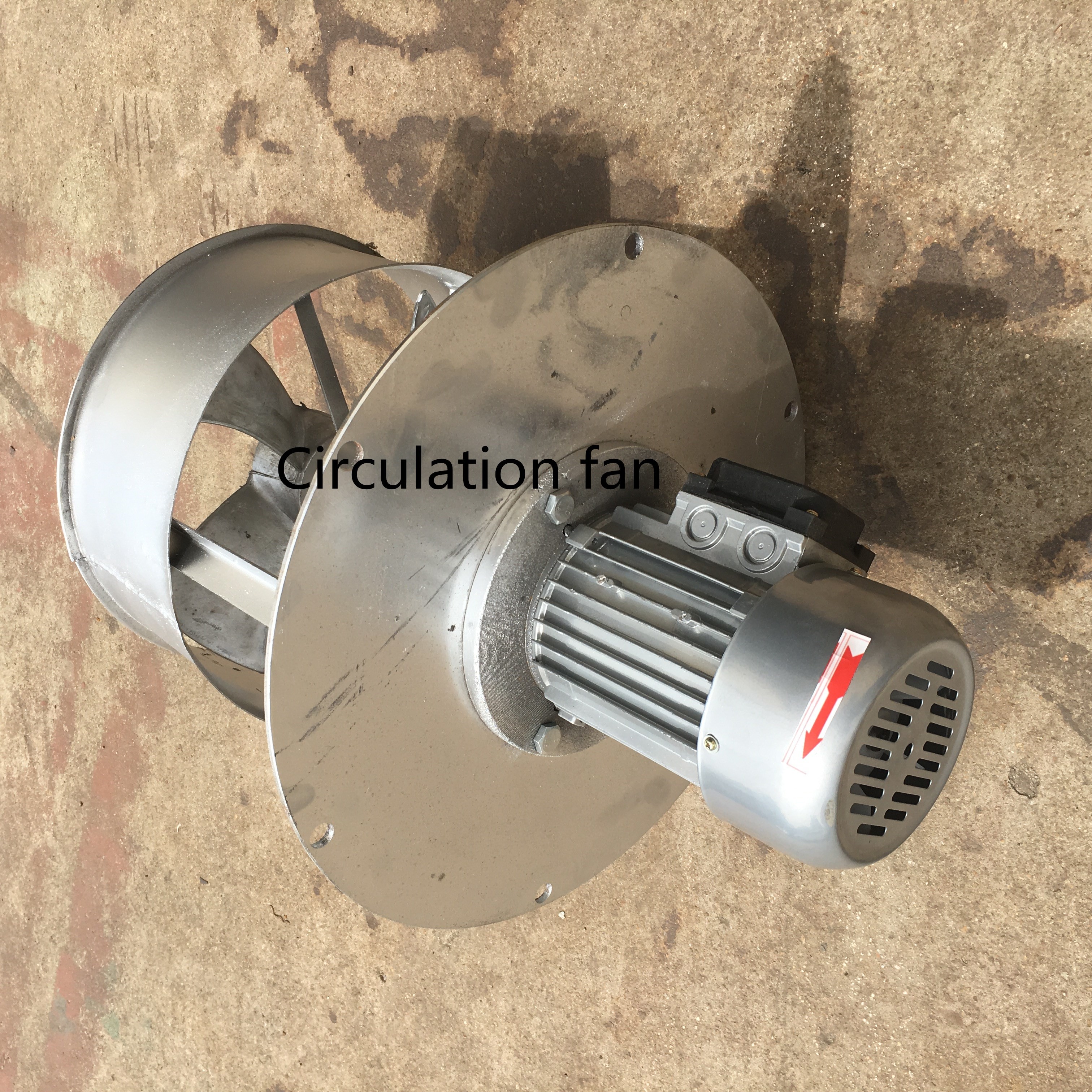

Nearly all hot air cycle in oven high heating efficiency, energy saving.Utilizing forced heat air cycle in oven, without air separating plate, material can be dried uniformly. vapor, heat water, powder, FRI all can be used as heating resources. Low noise, steady operation; temperature auto adjustment; easy access to temperature control, repair and maintenance. Various application; all kinds of materials drying; one of most common drying equipment.





Application

This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.





Packing detail

The normal package is plywood box.

If exported to countries which have strict requirements of packaging, like European countries or Australia , the wooden box will be fumigated.

If machine has to be loaded into container directly, we will use PE film for packing or pack it according to customers special request





Technical parameters

MODEL

ELECTRIC POWER
(kW)

FAN POWER
(kW)

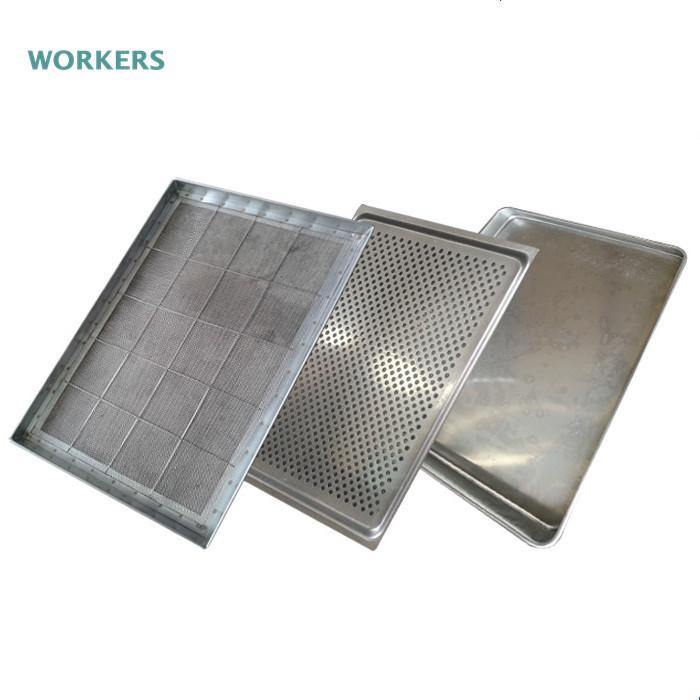

TRAY
QTY.

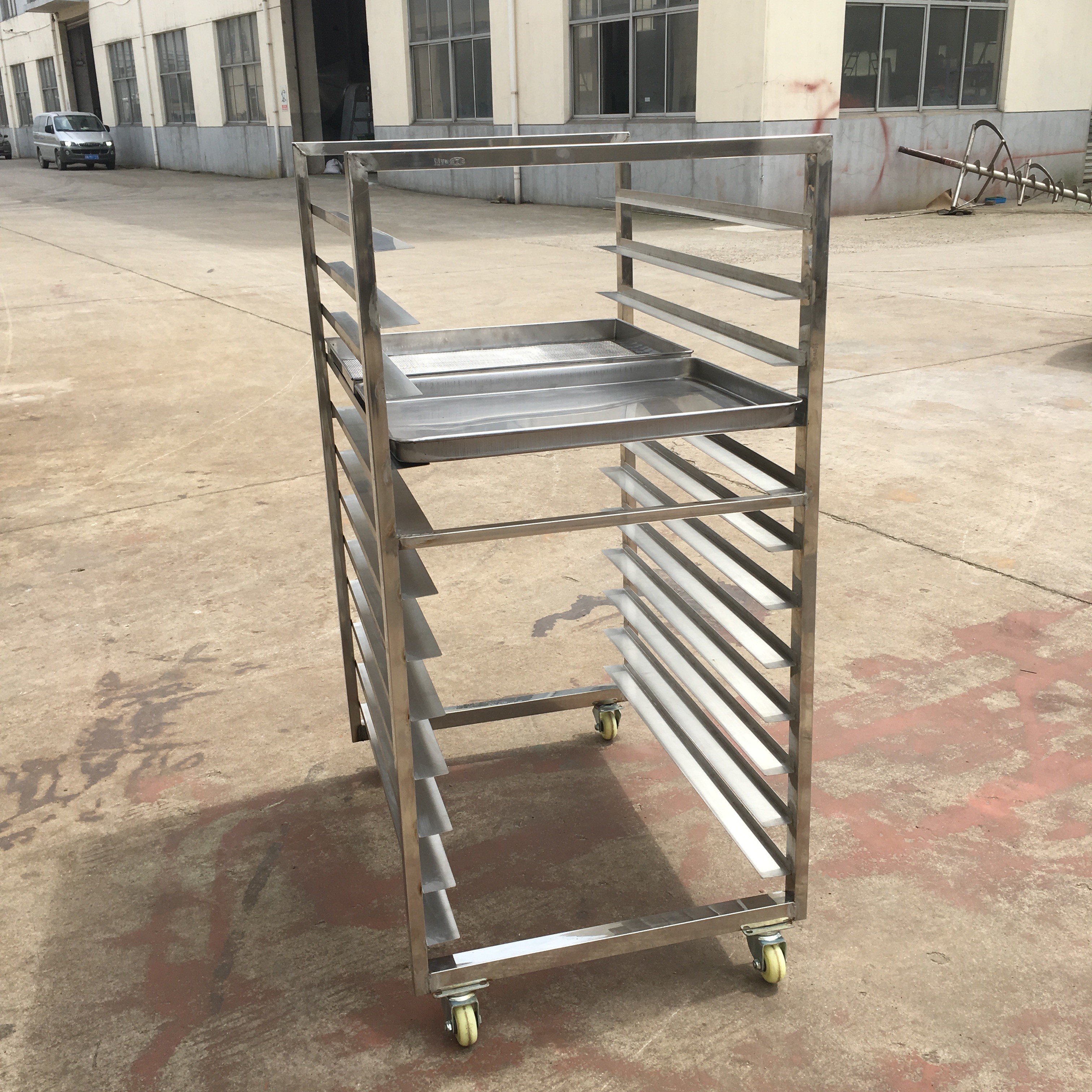

TRAY AND RACK
SIZE
(mm)

RACK
QTY.

DIMENSION
(mm)

WEIGHT
(kg)

MATERIAL

WKS-1

6~9

0.45

24

640*460*45
950*700*1300

1

1400*1200*2000

400

304 stainless steel

WKS-2

9~15

0.45

48

2

2300*1200*2000

600

WKS-3

15~30

0.9

96

4

2300*2200*2000

900

WKS-4

15~45

1.35

144

6

3660*2300*2000

1500

WKS-5

15~60

1.8

192

8

5000*2250*2100

2000

The heat source can be electricity, gas, steam, thermal oil, etc.











9-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 09-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 19-15KW Chemical Hot Air Tray Dryer 304SS Industrial Fruit Dehydrator Machine 2





Why choose us

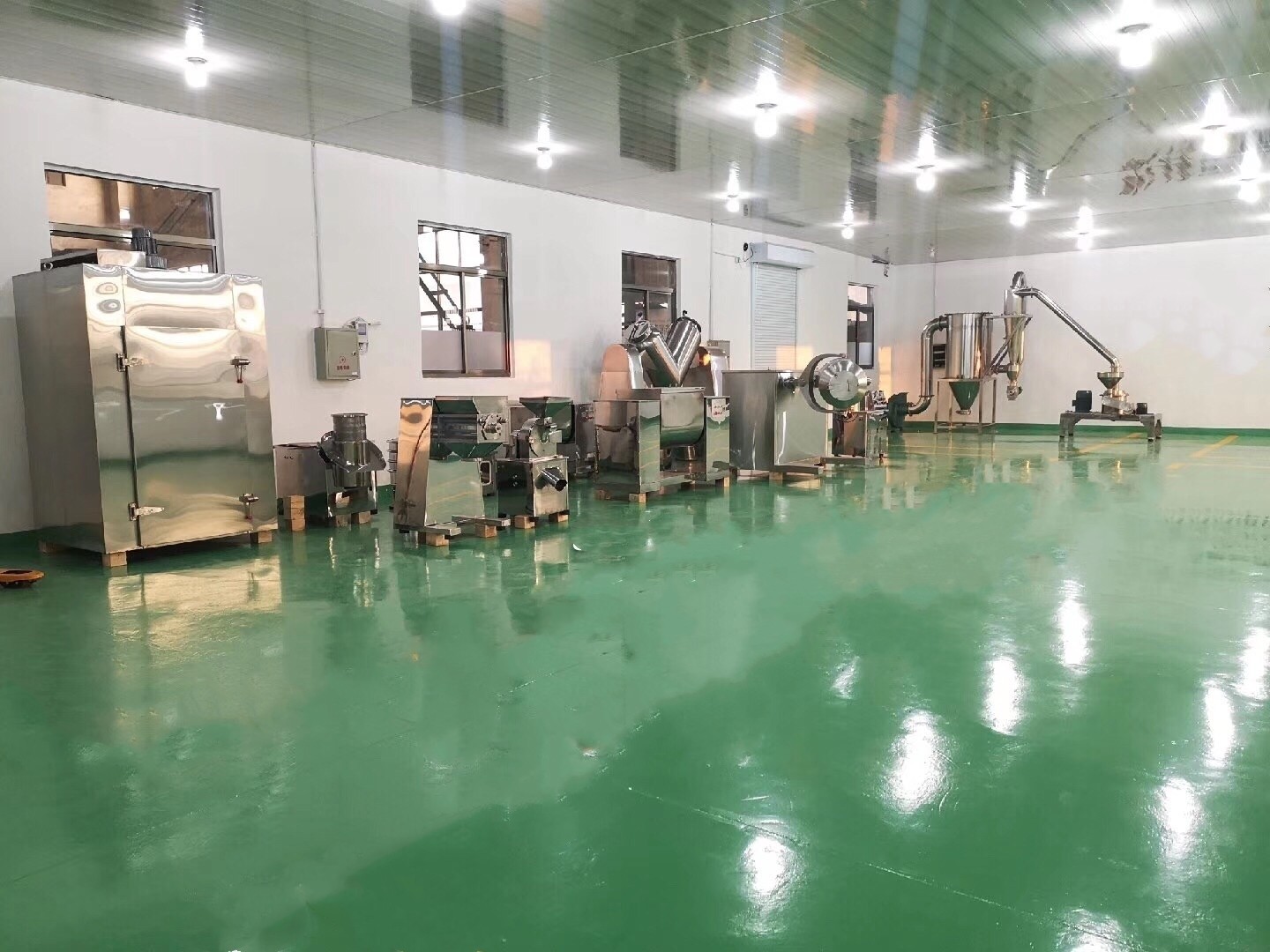

Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences.Over ten years extensive experience in design and production;Innovative engineers, well trained technicians;A full-time after-sales service team;Guaranteed quality with competitive prices.All of our products are made of high-quality stainless steel with mature product design and sophisticated production technology. Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc.WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services. Welcome to visit us to start the cooperation!
