Product Details:
|
| Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
|---|---|---|---|
| Type: | Drying Oven | Condition: | New |
| Voltage: | 220v/380v | Warranty: | 1 Year |
| Power(w): | 15-60 | Weight: | 2000kg |
| High Light: | GMP Turmeric Hot Air Oven Dryer,High Efficiency Hot Air Oven Dryer,350C Electric Fish Drying Machine |
||

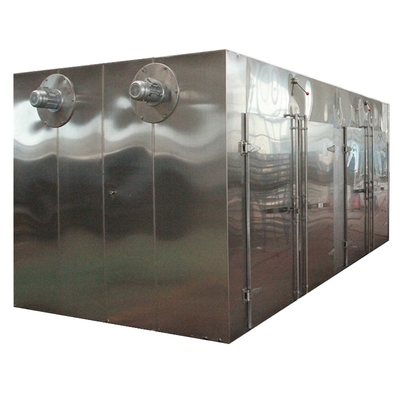

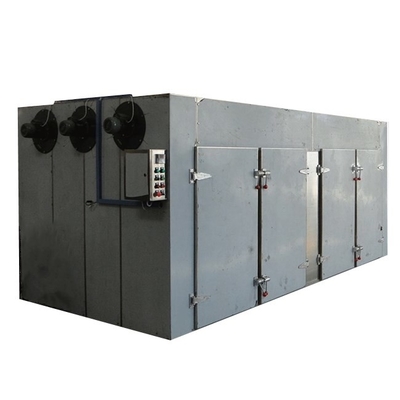

Hot Air Circulation High Efficiency Dryer for Turmeric Food Fruit Fish Drying Machine
Hot Air Oven Dryer
Main Feature
1. Heating source includes three modes steam, electricity and electrical steam.
2. Service temperature: steam heating 50-150℃; max 150℃; electrical heating 50-350℃.
3. The temperature is automatically controlled or setting by customer,
4. Inner wall of oven adopts full welding and arc transition, with no dead angle.
5. The whole machine has favorable sealing performance. The unique guide rail sealing
device guarantees fine sealing performance for the whole machine.
6. The air inlet port is providing the fresh air constanly; dehumidification port is automatically controlled or setting by customer
7. The two doors of double-door drying oven are mechanical interlocked.
8. Components and parts in the oven can be quickly dismantled and installed, which is
convenient for cleaning.
9. The control system has text display and touch screen for selection.
10. The whole machine is in accordance with GMP standard.
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Q&A
Q: How to choose suitable equipment?
A: Tell us your work flow and requirements, then we will recommend you suitable equipments.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
