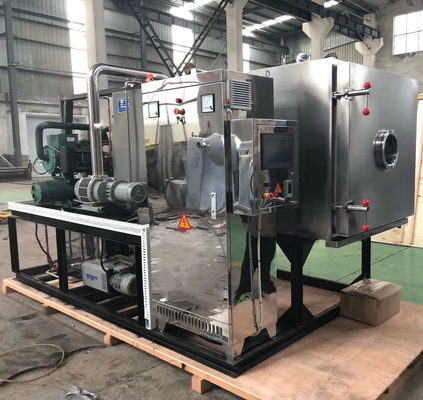

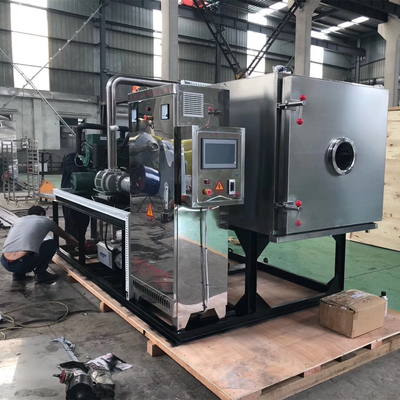

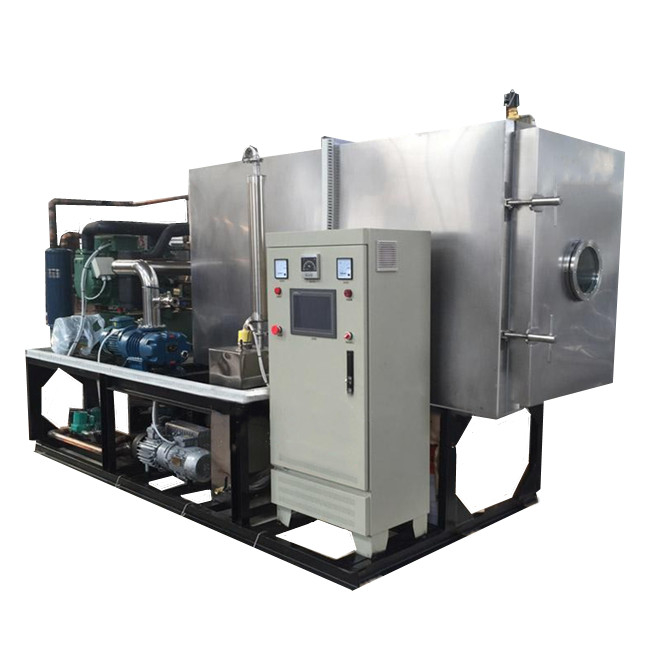

Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer

Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer
Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer
Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer

Large Image :  Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer

Product Details:
Place of Origin: CHINA
Brand Name: WKS
Certification: CE
Model Number: FD-10C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: about 50 working days
Payment Terms: T/T
Supply Ability: 5 SETS PER MONTH

Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer

Description
Name: Vacuum Freeze Dryer Voltage: Depends On Local Voltage
Condition: New Warranty: 1 Year
Type: Freeze Drying Equipment After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
Application: Food Processing,Medicine Processing,Chemicals Processing Material: Stainless Steel,SS304
High Light:

Medicine Vacuum Freeze Drying Machine

,

Herbal vacuum freeze drying machine

,

Fruit Sea Cucumber Dryer

Food Chinese Herbal Medicine Vacuum Freeze Dryer Fruit Sea Cucumber



Vacuum Freeze Dryer



Characteristics

1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing;



Technical parameters

Model FD-1C FD-5C FD-10C FD-20C FD-30C FD-50C
Control method PLC touch screen
Working methods quick freezing, lyophilization
Material SUS304
Drying area (sqm) 1 5 10 20 30 50
Loading capacity(kg) 10 50 100 200 300 500
Tray size (mm) 400*500*25 600*1000*25 800*1000*25 600*1000*25 800*500*20 600*1000*20
Tray pcs 5 9 13 34 76 80
Tray form SUS304, perforated or solid tray
Shelf 8 13 18 38 40 86
Shelf temperature(°C) -55~120
Shelf medium low temperature silicone oil
Vacuum pump Rotary vane pump two-level pump combined pump
Working vacuum(pa) ≦130
Ultimate vacuum(pa) <10
Defrosting method hot water spray hot water soaking
Compressor Copeland
Power custom
Working environment temperature(°C) ≦ 40
Rated power(kW) 6 16 28 56 70 110
Size (mm) 2000*700*1700 3000*1500*1800 3200*1600*2100 5000*2200*2500 6000*2600*2900 9000*3800*3500



Herbal Medicine Vacuum Freeze Drying Machine Fruit Sea Cucumber Dryer 0



This lyophilizer is widely used for pharma and food industry

All the parts contacting the products are made of AISL316L stainless steel,The surface roughness reaches Ra≤0.5um

The Inner circle of the Chamber has a smooth transition without dead corner ,no objects accumulated consider for user ,the structure is easy to clean

Option for steam sterilization or chemical sterilization

Except for the above ,it can also provide automatic running CIP and SIP to ensure high quality of cleaning and the sterilization of the equipment



SIP

121℃ Pure steam

Equipped with cooling water jacket,after sterilizing it can fast reduce the temparature of the chest.

Optional pneumatic door lock ,it locks automatically

Adopting imported sterilization filter to ensure the absolutely sterilized air coming into the equipment

The Chamber and various kinds of container and tube are all wrapped with imported insulating layer to efficiently avoid from heat transmission

Can carry out constant humidity control to the refrigeration humidity

Equipped with water circulation pump capable to eliminate residual water in sterilization layer



CIP

The high-pressure clean water thoroughly wash inner surface of the chamber and condenser

Equipped with large flow rate CIP pump

Fixed with CIP tubing that automatically drains the residual water

Use rotary and fixed nozzle with 360-degree spray

The hydraulic system uses isolated retractable corrugated tube



The freeze drier has a proper layout and enough space for maintenance and operation of the equipment

Square or round shape chamber (User may choose one of them)

Horizontal or vertical condenser

Integral design can make each component independent,easy to operate and maintain.

Working temperature scope of condenser:-80℃(when it is dry) to +121℃(when in steam sterilizing).

The Max vacuum level is ≤1Pa.

Adopting industrial pressure container standard:GH/T3163-3164

GMP and relevant regulations

Standard of international Electro technical Commission (IEC)

China Electric Equipment Standard(GB)

The chamber ,shelves,and condenser is make of AISI316l stainless steel

TIG welding avoids leakage and gap which can be not cleaned

The Welding point of the tube is photographed with X-ray,with inspection record and certificate of qualification

The roughness of inner surfaced reaches Ra≤0.5um,mirror polished

Leakage rate of the system≤0.025Pa.m3/s to ensure normal and reliable running .

There is no dead corner in the chamber ,the connection of the tube is simple and reasonable ,easy to clean.



Refrigeration System



The freeze drier uses the best refrigeration system to freeze the product and condensate the steam produced during freeze-drying procedure.Freeze-drying technology requires the refrigeration system to keep a low temperature status for a long period of time ,there fore ,the requirements to the refrigeration system are very high.but the freeze drier of Shanghai Marya can be easily help you to reach your goal.

Uses world famous brand,for example:Frascold,Danfoss,Copeland ,Castel,Edwards,and etc.

The system uses double stage half sealed piston compressor to reach first class temperature reducing speed rate and the lowest temperature in China.

The system power equipped is much greater than needed to efficiently ensure the refrigeration performance.

Digital and module design has a high protection to ensure the system to run normally and stably.

The Powerful refrigeration system ,liquid spray cooling system and other protection installations keep to the best working temperature and high system reliability

The sensitive transducing system can provide alarm and protection in time against abnormal running situation

Uses refrigerant conforming to the world environment protection requirement,such as HCFCR22 and HFCRA for choice

Special synthetic lubricating oil can eliminate various kinds of problem due to high temperature of normal mineral Oil.



Vacuum System

The Vacuum system of the freeze drier provides a necessary pressure environment to freeze drying procedure .cooperating with condenser ,it can reach the vacuum level required by the freeze-drying procedure. To make the system run stably under high vacuum situation ,the key point is the performance of the vacuum pump,and the valve ,seal and instrument that cooperate with the pump.

The Vacuum system of Shanghai marya freeze drier has the following characteristics

Standard Configuration ,Uses UK Edward and Japan Ulvac double stage oil sealing revolving plate pump.

Option:UK Edwards,Ulvac Pump.

Equipped with two vacuum probes ,for measuring the vacuum level of freeze drying chamber and pump respectively

Option:Condenser type vacuum meter

There are two methods for dying chamber vacuum level control:

Drying chamber vacuum level controls the opening and closing of the air inlet valve ,introduce the sterilized air from sterilized room

Drying chamber vacuum level controls the opening degree of the big butterfly valve to reach the purpose of controlling the vacuum level.
