Product Details:
|
| Name: | Vacuum Freeze Dryer | Voltage: | Depends On Local Voltage |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Type: | Freeze Drying Equipment | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Application: | Food Processing,Medicine Processing,Chemicals Processing | Material: | Stainless Steel,SS304 |
| High Light: | 500kg Load Vacuum Freeze Dryer,10kg Load Vacuum Freeze Dryer,Pharmaceutical Tray Dehydrator |
||
Pharmaceutical Vacuum Freeze Dryer Tray Dehydrator Drying Equipment Liophilizer

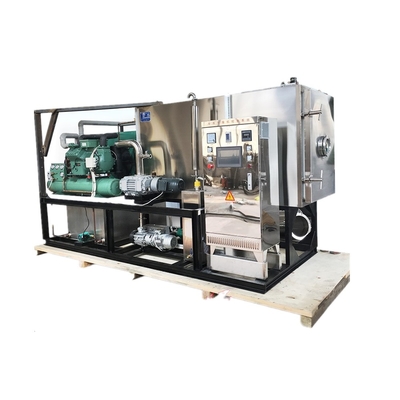

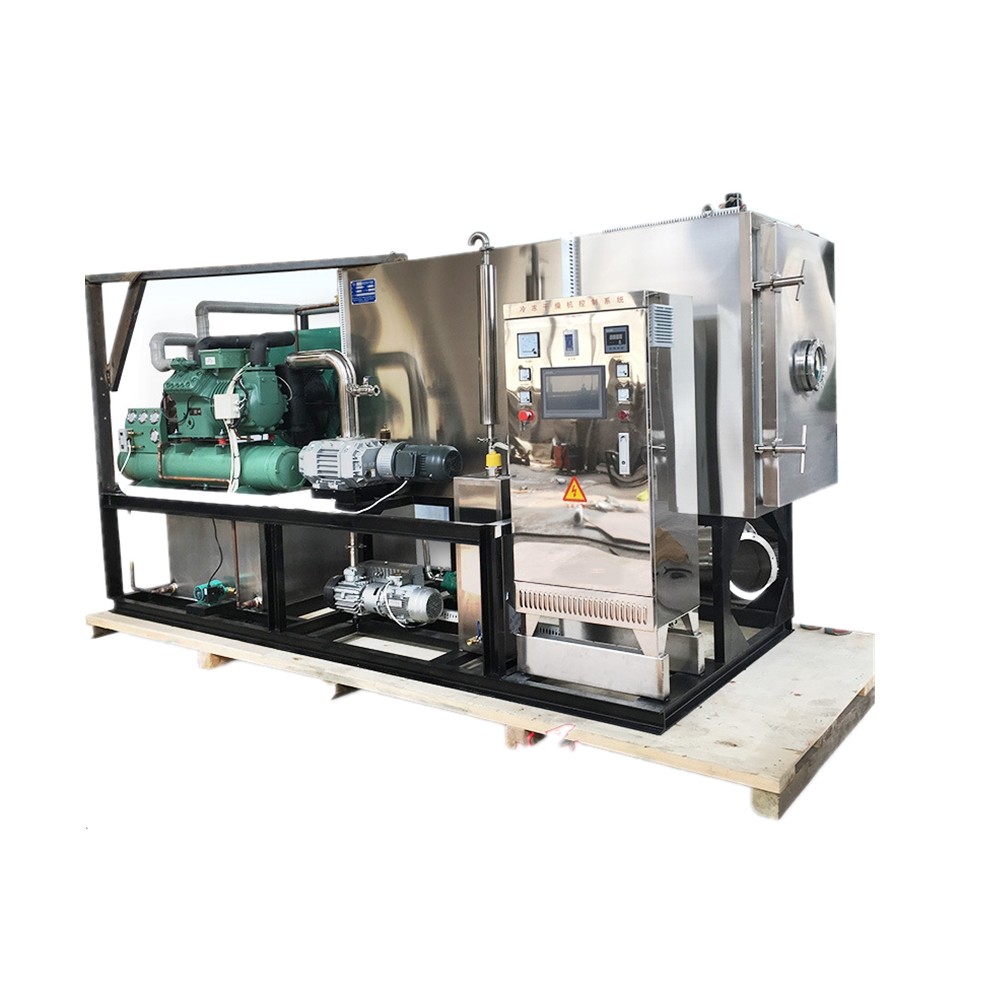

Vacuum Freeze Dryer
1. Compressor
The Refrigerating System of vacuum freeze dryer adopts the weni-closed compressor imported from USA. The key components such as the medium refrigerator, solenoid valve, expansion valve and oil distributor are also purchased from world-famous companies. Therefore, an ideal refrigerating temperature can be ensured and the reliability product in china.
2. Ammonia System
Ammonia separator system is a unique part of TJL series plants.It consists of ammonia separator,ammonia pumps,vapor trap vessel,pipes and vavles etc.Low temperature ammonia in the separator can keep the vacuum of the cabin for 3 to 5 minutes when temporary trouble occurs.
3. Heating System
Heat supply system-made up of water heating tank,plate exchanger,pneumatic control valves,pumps and pipes, liquid-level indicator, temperature sensors and assembly heating plates,is a forced circulation under the auto-control pressure of gas nitrogen.
4. PLC Control System
MCGS,Delta PLC Show working status, curve,temp.pressure Weighing function and curve Alarm and setting directly Able to exchange different language.
Technical parameters
| Model | FD-1C | FD-5C | FD-10C | FD-20C | FD-30C | FD-50C |
| Control method | PLC touch screen | |||||
| Working methods | quick freezing, lyophilization | |||||
| Material | SUS304 | |||||
| Drying area (sqm) | 1 | 5 | 10 | 20 | 30 | 50 |
| Loading capacity(kg) | 10 | 50 | 100 | 200 | 300 | 500 |
| Tray size (mm) | 400*500*25 | 600*1000*25 | 800*1000*25 | 600*1000*25 | 800*500*20 | 600*1000*20 |
| Tray pcs | 5 | 9 | 13 | 34 | 76 | 80 |
| Tray form | SUS304, perforated or solid tray | |||||
| Shelf | 8 | 13 | 18 | 38 | 40 | 86 |
| Shelf temperature(°C) | -55~120 | |||||
| Shelf medium | low temperature silicone oil | |||||
| Vacuum pump | Rotary vane pump | two-level pump | combined pump | |||
| Working vacuum(pa) | ≦130 | |||||
| Ultimate vacuum(pa) | <10 | |||||
| Defrosting method | hot water spray | hot water soaking | ||||
| Compressor | Copeland | |||||
| Power | custom | |||||
| Working environment temperature(°C) | ≦ 40 | |||||
| Rated power(kW) | 6 | 16 | 28 | 56 | 70 | 110 |
| Size (mm) | 2000*700*1700 | 3000*1500*1800 | 3200*1600*2100 | 5000*2200*2500 | 6000*2600*2900 | 9000*3800*3500 |
Characteristics
1. Perfect appearance, compact size;
2. Touch screen operation, one key to start, and automatic freeze drying process, easy and convenient;
3. Key components with imported brands, small noise, large capacity, high quality and high performance;
4. Advanced system, with low operating current and low energy consumption;
5. 304 stainless steel food tray and inside liner, safety and easy clean;
6. Transparent organic glass door, the direct observation of food processing;
