Product Details:
|
| Name: | Hot Air Oven Dryer | Voltage: | 220v/380v |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Type: | Drying Oven | Application: | Food Processing |
| Material: | Stainless Steel | Color: | Silver |
| High Light: | ODM Hot Air Circulating Drying Oven,OEM Hot Air Circulating Drying Oven,Steam Heating Dried Fruit Maker |
||
Electric Gas Steam Heating Hot Air circulating Drying Ovens Food Fruit Dryer Machine
Hot Air Oven Dryer
Product introduction
CT-C series hot air circulation blast drying oven adopts noise elimination, thermal stable axial flow fan, and automatic temperature control system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can reach 50%. The successful design of the CT-C hot air circulation drying oven makes that the blast drying oven in our country catches the advanced level both at home and abroad.
CT-C hot air blast drying oven features are energy-saving, increasing economic benefit, low noise, and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials.
Technical parameters
| MODEL | ELECTRIC POWER (kW) |
FAN POWER (kW) |
TRAY QTY. |
TRAY AND RACK SIZE (mm) |
RACK QTY. |
DIMENSION (mm) |
WEIGHT (kg) |
MATERIAL |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 | 304 stainless steel |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | ||
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | ||
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | ||
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 | ||
| The heat source can be electricity, gas, steam, thermal oil, etc. | ||||||||
Main features
1. Most of the hot air inside the loop, high thermal efficiency, energy conservation
2. The use of forced ventilation box with adjustable air divider plate, uniform drying, the heat source can be steam, oil, electricity, hot water, far infrared and so on
3. Small machine noise, running balance, the temperature automatically controlled, easy installation and maintenance
4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment
Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Structure

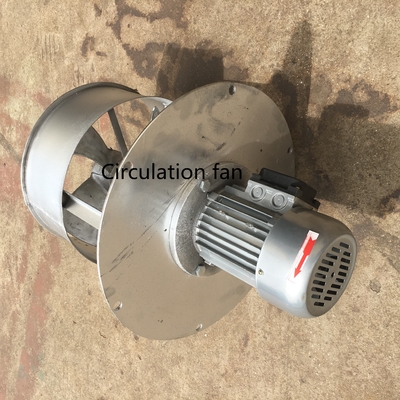

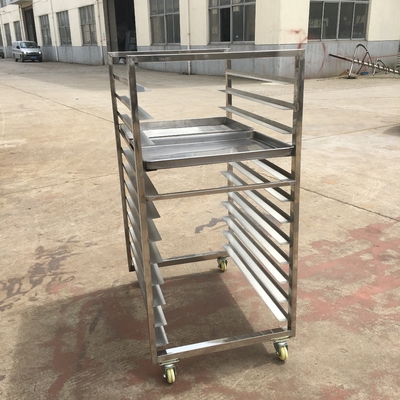

This machine is mainly composed of box circulation, fan, air distribution board, drying car, intelligent automatic humidity control of drying pan, and automatic dehumidification at regular intervals. The axial flow fan circulates the hot air in the box, and the heat source is heated by electricity and distributed by the air distribution board into the drying box through the air duct to heat the material. The wet fan (the dehumidification time is appropriately set by the user according to the material) is discharged out of the box, so that the material can be dried.
