304 Stainless Steel Commercial Fruit Dryer CT-C Series Rose Grapes Drying Machine
Product Details
304 Stainless Steel Commercial Fruit Dryer
,Commercial Fruit Dryer CTC Series
,CTC Series Rose Grapes Drying Machine
Dried Rose Dehydrator Dryer High Efficiency Food Drier Hot Air Circulating Drying Oven
Hot Air Oven Dryer

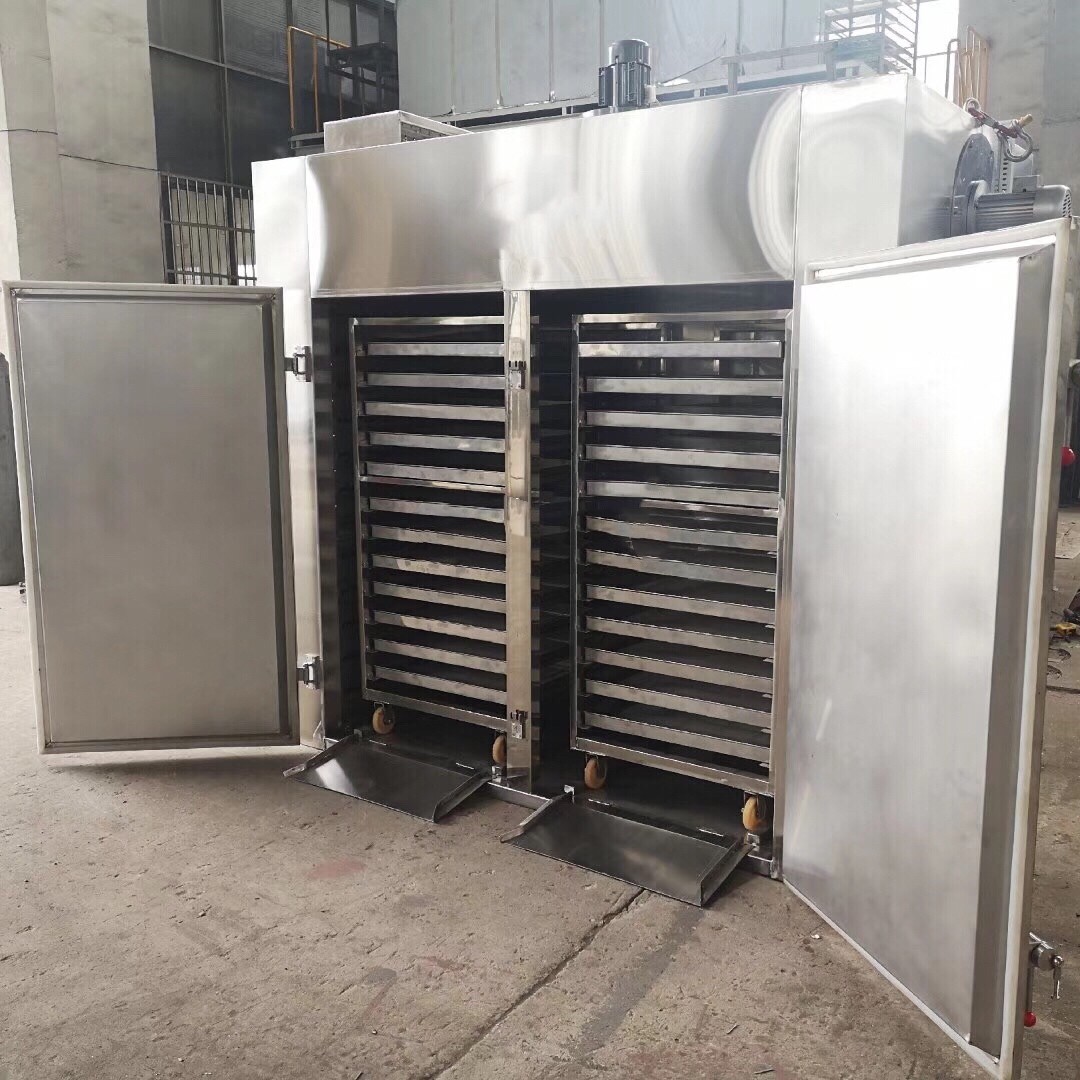

Introduction

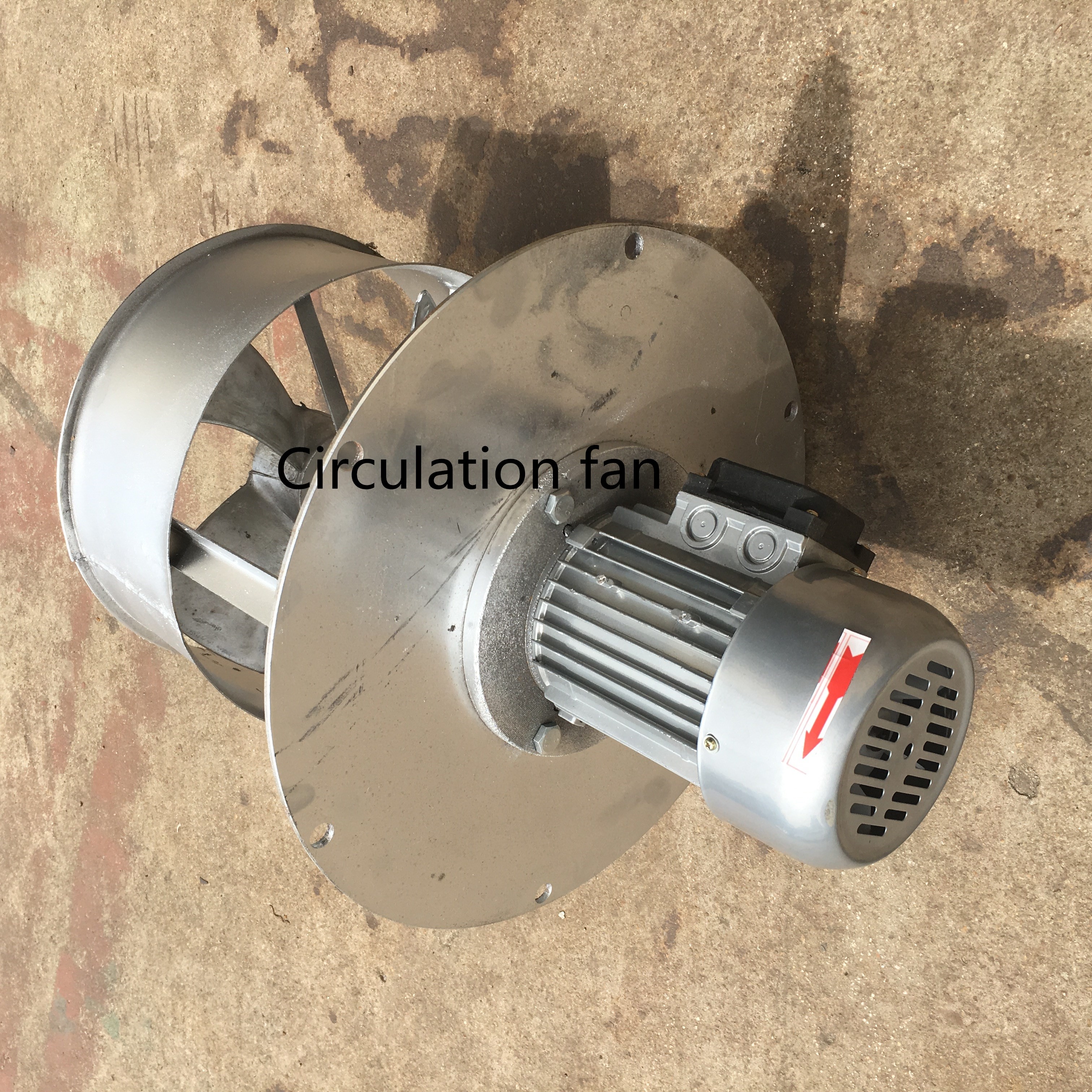

CT-C series hot air circulation blast drying oven adopts noise elimination, thermal stable axial flow fan, and automatic temperature control system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can reach 50%. The successful design of the CT-C hot air circulation drying oven makes that the blast drying oven in our country catches the advanced level both at home and abroad.
CT-C hot air blast drying oven features are energy-saving, increasing economic benefit, low noise, and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials.
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Q&A
1. Business Type
-- Company located in Zhengzhou, Henan, CN
-- Employees, over 20 people
2. What are your main products?
-- Dryer
-- Grinder
-- Blender
-- Granulator
-- Packaging Machine
-- Food Machine
3. How to make an order?
-- Communicate with our salesman
-- Items would be PDF/JPF/Video format offer free design service for all clients
-- Order to us after samples approved
-- All workmates try best to produce sample
-- Arrange shipment when your balance arrives
-- Supply related accessories
-- Welcome your furthermore orders in future
-
