Less Electricity Hot Air Circulating Tray Dryer for Tea Leaves Fruits Drying Machine

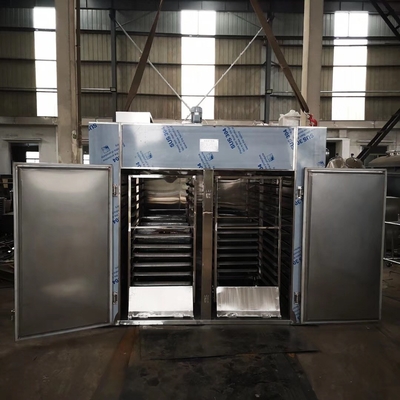

Hot Air Oven Dryer
Introduction:
Nearly all hot air cycle in oven high heating efficiency, energy saving. Utilizing forced heat air cycle in oven, without air separating plate, material can be dried uniformly. vapor, heat water, powder, FRI all can be used as heating resources. Low noise, steady operation; temperature auto adjustment; easy access to temperature control, repair and maintenance. Various application; all kinds of materials drying; one of most common drying equipment.
Important parts about Oven dryer WKS-2

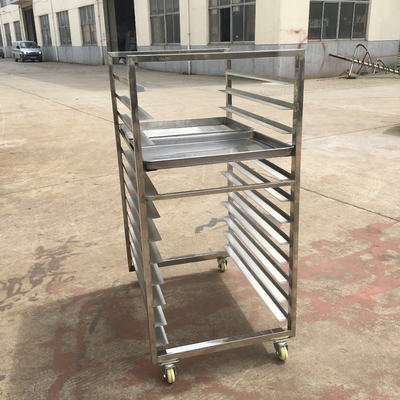

2*Trolleys

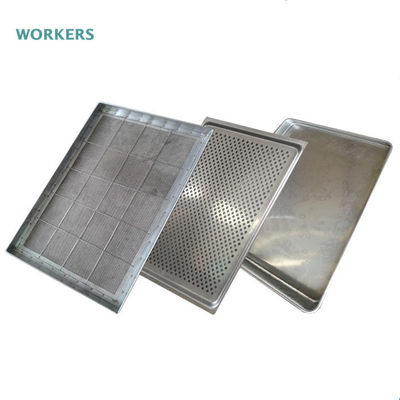

48*Trays
Dimension 2300*1200*2000
Standard power distribution auxiliary heat(9-15kw)

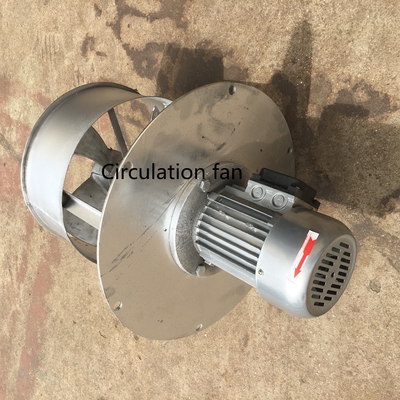

1*Circulating hot air blower
1*Moisture release outlet
1*fresh air inlet
1*control panel
Technical parameters
| Model |
Heater
(kW) |
Fan
(kW) |
Tray
Qty. |
Tray & Trolley
(mm) |
Trolley
Qty. |
Dimensions
(mm) |
Weight
(kg) |
| WKS-1 |
6~9 |
0.45 |
24 |
640*460*45
950*700*1300 |
1 |
1400*1200*2000 |
400 |
| WKS-2 |
9~15 |
0.45 |
48 |
2 |
2300*1200*2000 |
600 |
| WKS-3 |
15~30 |
0.9 |
96 |
4 |
2300*2200*2000 |
900 |
| WKS-4 |
15~45 |
1.35 |
144 |
6 |
3660*2300*2000 |
1500 |
| WKS-5 |
15~60 |
1.8 |
192 |
8 |
5000*2250*2100 |
2000 |
Why choose us
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences.Over ten years extensive experience in design and production;Innovative engineers, well trained technicians;A full-time after-sales service team;Guaranteed quality with competitive prices.
Q&A
Business Type
-- Company located in Zhengzhou, Henan, CN
-- Employees, over 20 people
What are your main products?
-- Dryer
-- Grinder
-- Blender
-- Granulator
-- Packaging Machine
-- Food Machine
Packing detail
The normal package is plywood box.
If exported to countries which have strict requirements of packaging, like European countries or Australia , the wooden box will be fumigated.
If machine has to be loaded into container directly, we will use PE film for packing or pack it according to customers special request.
