Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Product Details
Customized Hot Air Oven Dryer
,Hot Air Oven Dryer 2.2m
,Chinese Medicine Herbs Drying Machine 2.3m
Customized Hot Air Circulation Dryer Oven for Chinese Medicine Herbs Drying Machine

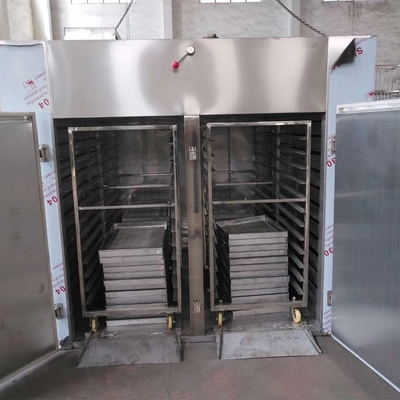

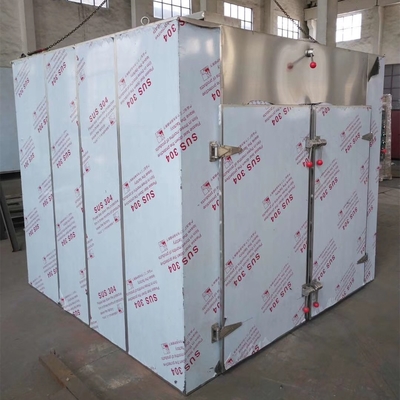

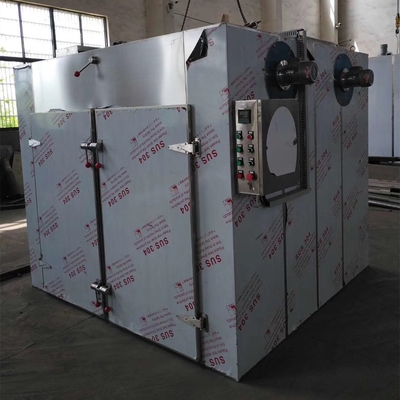

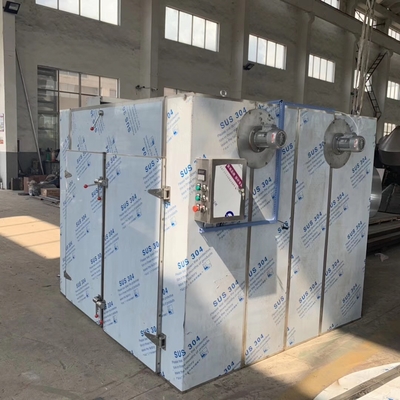

Hot Air Oven Dryer
Important parts about Oven dryer WKS-3

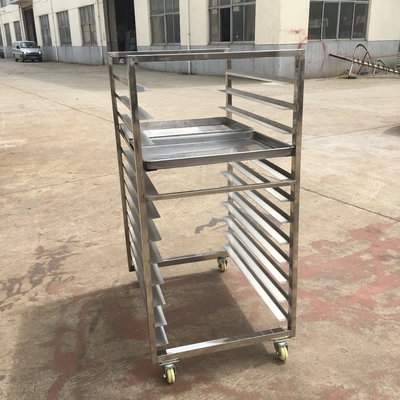

4*Trolleys
96*Trays
Dimension 2300*2200*2000
Standard power distribution auxiliary heat(15-30kw)
2*Circulating hot air blower
1*Moisture release outlet
1*fresh air inlet
1*control panel
Axial Fan
- Power: 0.45kw
- Material: Aluminum alloy casting
- Speed: 2800r/min
- Air flow:3000m³/hour
- The fan has the feature of high temperature resistance, corrosion resistance, low noise, low power and large air flow.
Heater
The oven's default heat source is electricity, using a W-shaped stainless steel electric heating tube. Also according to customer requirements to use gas, LPG, oil, steam, coal, wood and other biomass particles as heat source..
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Our service
We provide complete Pre-service such as 24 Hours online service for your consult & Help choose right model & a series of service,person,advise. Middle service such as Give you best offer Provide discount for many sets order & Do customer's request & Choose payment term as you are convenient & Promptly production and delivery & inform you in time & Can provide invoice value as you like to decrease your tax. After sale like service 1 year warranty service & Technical Engineer are available for oversea training & Free change for some parts Remote control technical consult.
-
