Product Details:
|
| Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
|---|---|---|---|
| Type: | Drying Oven | Condition: | New |
| Power(w): | 15-60 | Weight: | 2000kg |
| Product Name: | High Quality Dehydration Application Hot Air Dryer | Color: | Silver |
| High Light: | 60KW Hot Air Oven Dryer,Yam Mango Dehydrator Machine,2000kg Mushroom Dehydrator Machine |
||
Stainless Steel Hot Air Circulation Dryer Dehydrator for Mango Mushroom Pepper Yam

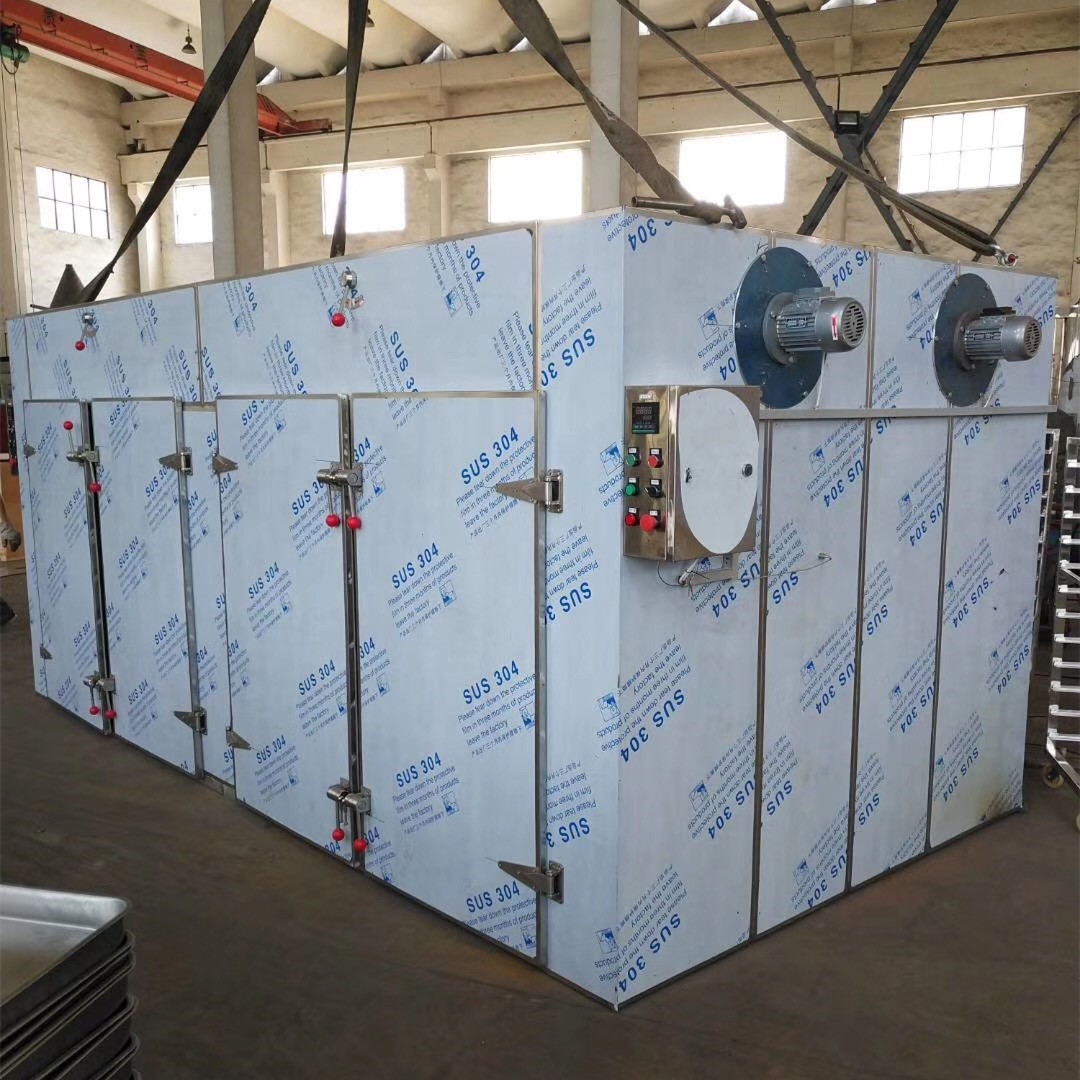

Hot Air Oven Dryer
Operating Procedure

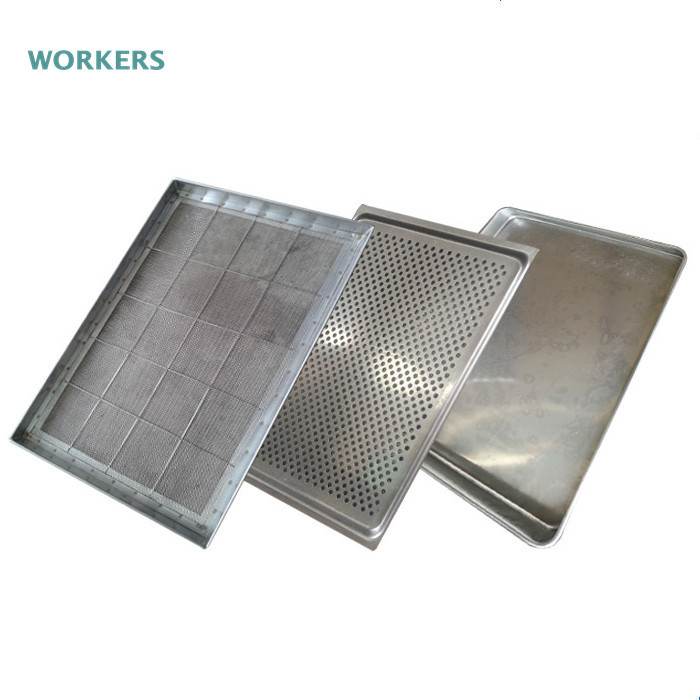

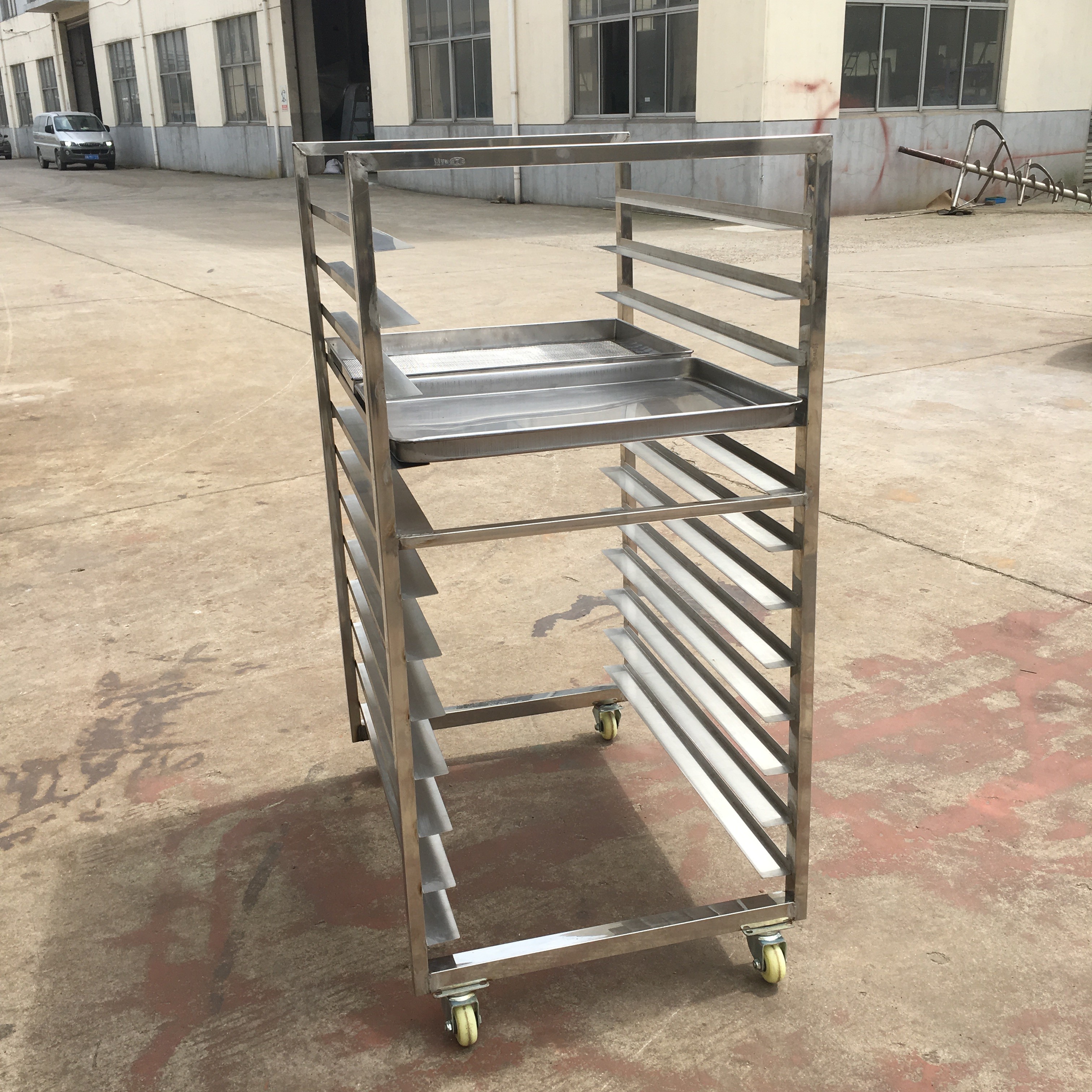

The drying material is distributed to the trays by the customer and put the trays on trolley one by one, then sending them into the oven . The size of stainless steel tray is 460*640*45.

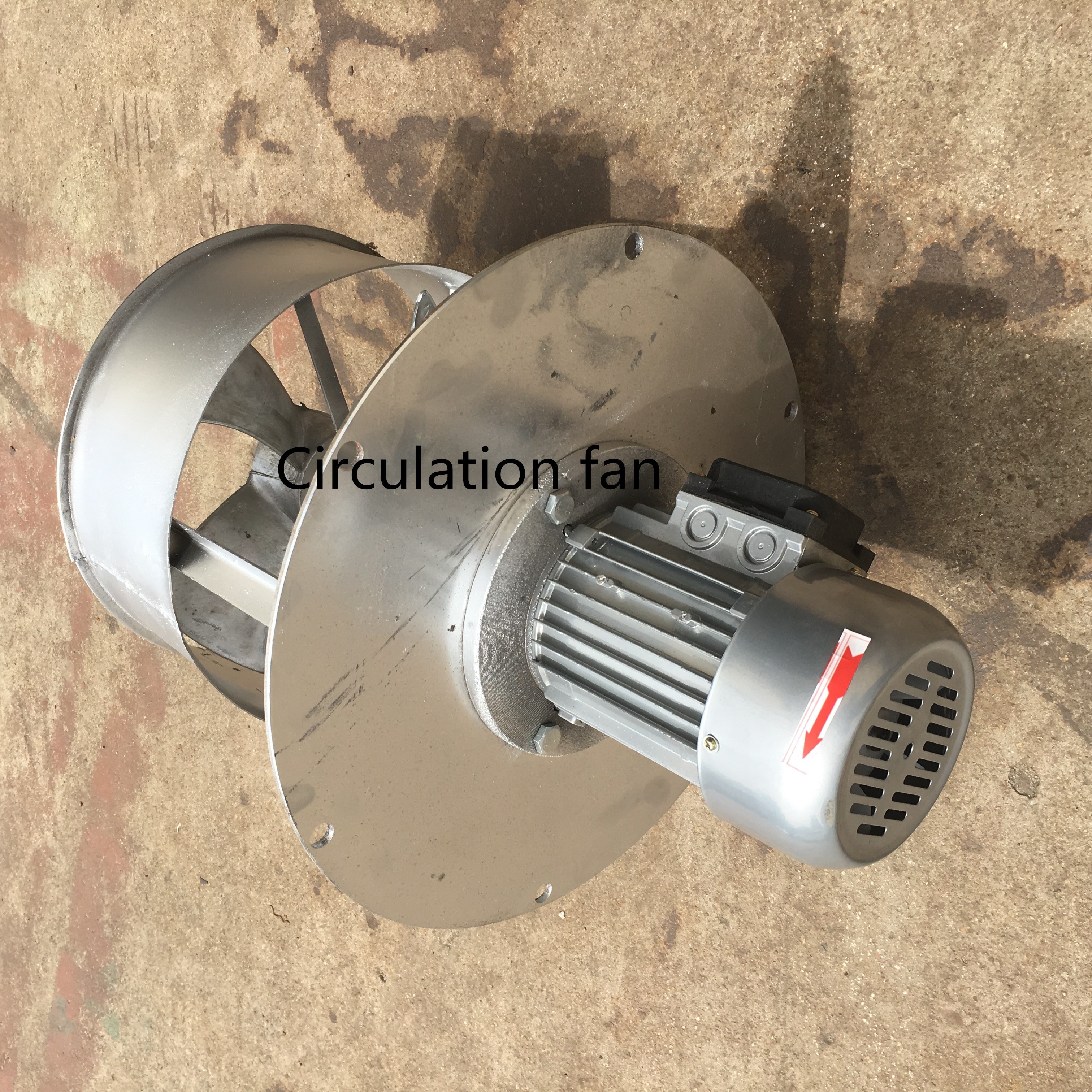

Next, find the control panel and turn on the circulating fan and heater, set the drying temperature and time, and the machine will start to work. Fresh air will continuously enter the oven, with the U-shaped heating pipe, most of the hot air is cycling in the fully enclosed oven, so as to achieve energy saving and high efficiency. During the drying process, a large amount of moisture will be generated, which requires the customer to open the top moisture outlet and set the moisture release time. The whole drying process is convenient, quick and easy to operate.
Technical parameters
|
MODEL |
ELECTRIC POWER |
FAN POWER |
TRAY |
TRAY AND RACK |
RACK |
DIMENSION |
WEIGHT |
MATERIAL |
|
WKS-1 |
6~9 |
0.45 |
24 |
640*460*45 |
1 |
1400*1200*2000 |
400 |
304 stainless steel |
|
WKS-2 |
9~15 |
0.45 |
48 |
2 |
2300*1200*2000 |
600 |
||
|
WKS-3 |
15~30 |
0.9 |
96 |
4 |
2300*2200*2000 |
900 |
||
|
WKS-4 |
15~45 |
1.35 |
144 |
6 |
3660*2300*2000 |
1500 |
||
|
WKS-5 |
15~60 |
1.8 |
192 |
8 |
5000*2250*2100 |
2000 |
||
|
The heat source can be electricity, gas, steam, thermal oil, etc. |
||||||||
Application
The hot air curculation dryer is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction industry,electronic industry and so on. This dryer is especially suitable for drying the materials that have a good breathability andshaped as pieces, strips, or granules. It is also applicable to dry the pasted materials such as filter cake after shaped by granulator or extruder.
Applicable Materials:
Dehydrated Vegetables, Granulated Feed, Monosodium Glutamate, Coconut, Organic Pigments, Synthetic Rubber, Acrylic Fiber, Medicines, Herbs, Wooden Products, Plastic Products, Electronic Elements (Aging and Curing) etc.
Q&A
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4)Heating source(electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE ISO etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through
video conference.
5. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
6. How long is the construction period?
It's about 10 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
7. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
