Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 100-130kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Warranty: | 1 Year | Condition: | New |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | 6.75m2 Vibrating Fluidized Bed Dryer,0.9m2 Vibrating Fluidized Bed Dryer,Chrysanthemum Rose Fluidized Bed Dryer |
||
Golden jasmine chrysanthemum rose vibrating fluidized bed dryer

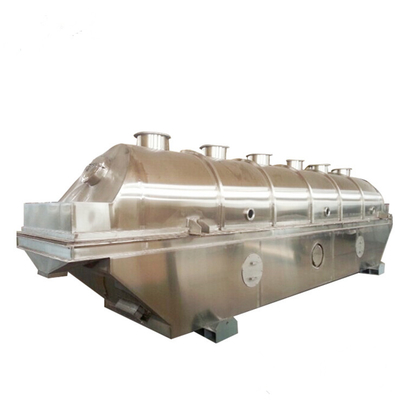

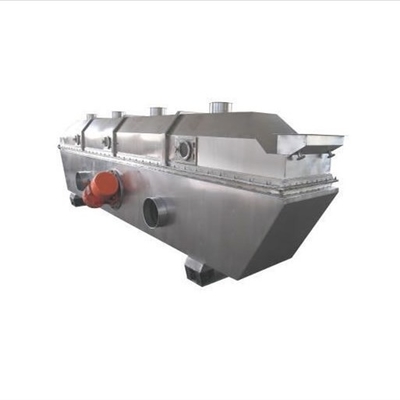

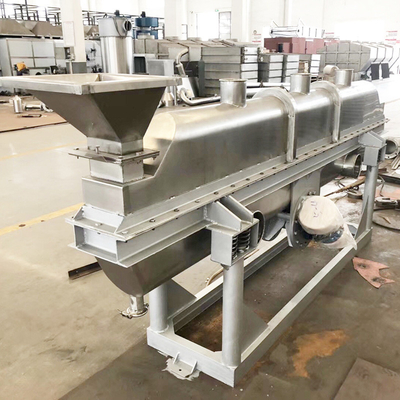

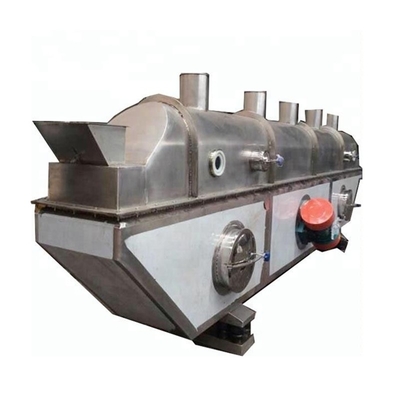

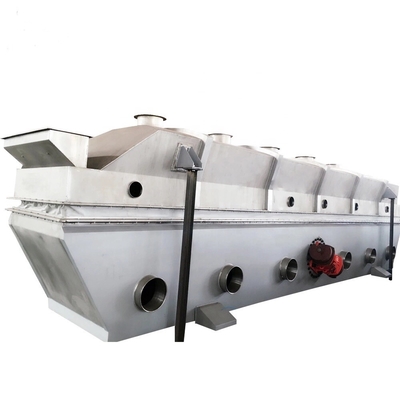

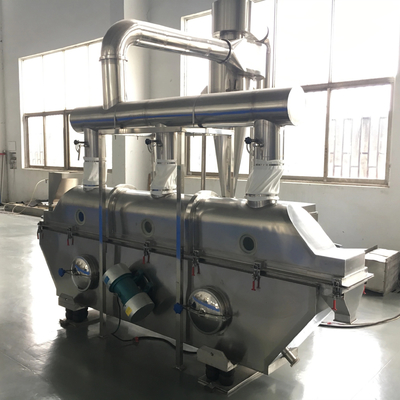

Vibrating Fluidized Bed Dryer
Equipment working principle
WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.

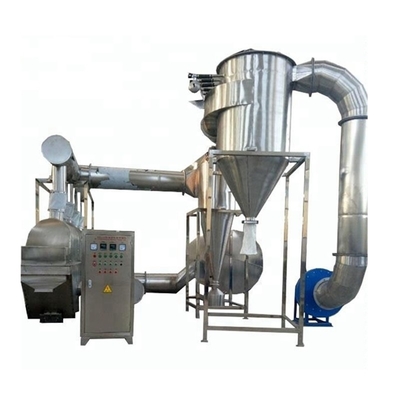

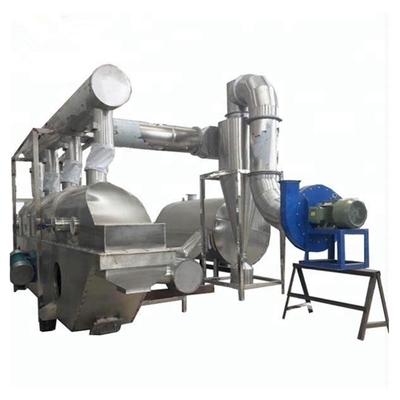

The material enters the machine from the feed inlet. Under the action of vibration force, the material is thrown along the horizontal fluidized bed and moves forward continuously. The hot air passes through the fluidized bed upward to exchange heat with the wet material. After the wet air is removed by the cyclone separator, the exhaust air is 1:3 discharged. The dry material is discharged from the discharge inlet.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
Adaptive materials
It is suitable for drying and cooling of powdery and granular materials in chemical industry, pharmaceutical industry, food industry, dehydrated vegetable industry, grain industry and mineral industry. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, lol, silk, soybean meal, distiller's grains, seeds, slag, sugar, etc.
Performance characteristics
The vibration source is driven by vibration motor, with stable operation, convenient maintenance, low noise and long service life.
Uniform fluidization, no dead space and blow through phenomenon, can obtain uniform drying and cooling products.
It is easy to be adjusted. The thickness of material layer, moving speed in the machine and the change of full amplitude can be adjusted steplessly.
Equipment characteristics
1, the equipment drying time is short, only takes about 6 minutes for the whole drying process, the general effective ingredients will not be destroyed.
2, adjustable weir plate is set at the discharge port, by adjusting the height of the weir plate, you can control stayed drying time of the material so as to make sure that final water content of materials meets the requirements.
3, perforated plate adopts back pressure process to ensure flatness of perforated plate, to avoid the deadline in the process of material running.
4, there are multiple wind inlet to the lower bed, so that the hot air through the material layer is more uniform.
5, the whole electric heating treatment is applied to the lower bed after its completion of production, eliminating the welding gravity, improving the strength of the bed, thick-walled seamless tube is applied to the internal to strengthen the evenly vibration force.
6, the center tube which is equipped with vibration motor is welded with reinforcement plate according to the angle of vibration radiation, effectively passing vibration force evenly to the various parts of the bed, so that the material is uniformly fluidized, while equipped with removable weight, to avoid resonance phenomenon.
