Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 150-180kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Temperature Of Inlet Air: | 70-140℃ | Condition: | New |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | 180kg/H Fluidized Bed Drying Machine,150kg/H Fluidized Bed Drying Machine,2.2*2KW Fertilizer Drying Machine |
||
Fluidized Bed Drying Machine for Calcium Magnesium Phosphate Fertilizer

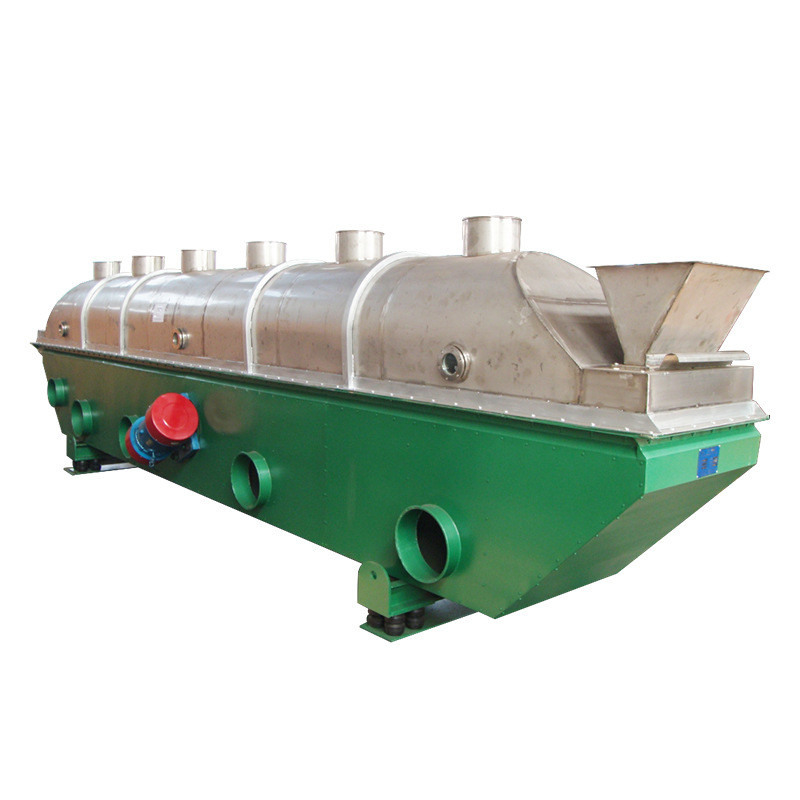

Vibrating Fluidized Bed Dryer
1. The principle of work
The material feeding port into the machines, in the air flow and vibration of the dual role, materials for continuous casting along the fluidized bed forward movement. Hot air upward through the fluidized bed and wet materials back out heat, dust removal by the cyclone separator after discharge, dry material by the material mouth eduction.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
2. Features
. Raw material is heated evenly, heat exchange is fully, and large intensity of drying
. Use vibration motor as vibration source. It is smooth in running and convenient in maintenance. The noise is low and the life is long.
. The state of fluidization is uniform and no dead gaps and broken phenomenon. Therefore the dried, cool can be got.
. It is good in adjustment and width in field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration breadth can be realized through steeples.
. It is small to damage the surface of raw material, so it can be used for raw materials that are easy broken. If the granule is not normal, the effect of process can not be effected.
. Because of adapting the structure of fully seat, it is effective to prevent from the cross pollution of raw materials and the working environment is clean.
. Basically the drying time is on average, the staying time is short, and the thickness of fluidized bed is also very short, 2-5cm.
Brief drawing
3. Applications
. Inorganic: sulfate, fine bleaching pink, sodium metasilicate, silica sand, boric acid sodium, activated carbon, sulfate, sodium chlorate, borax, boric acid, XiuHuaJia, brominated sodium
. Organic matter: benzene 2 phenol, oxalic acid, hydroquinone, fumarate, cologne acid, catechol, between the benzene 2 phenol, coke powder, tartaric acid, dichloroisocyanurate, G salt, R salt.
. Food and feed additive: soybean protein isolated, glutamic acid, caramel pigment, yeast powder, citric acid, citric acid sodium, glucose, lactose, sugar.
. Pesticide: willy aldehyde in spirit of rotor granules.
. Chemical agents: sodium percarbonate
. The high polymer: PE, PAM
4. Applicable scope
Can be used in dry or cooling process, applicable to the particle bulky or particles and not easy flow of irregular of products, or because to make particles less demanding and keep complete fluidization velocity of products and easy to bond, sensitive to temperature drying and contain materials gesso product surface water removal from.
