Product Details:
|
| Name: | Vibrating Fluidized Bed Dryer | Capacity: | 100-130kg/h Water Evaporation |
|---|---|---|---|
| Heat Source: | Gas Or Electric Or Steam Heating | Application: | Chemical, Pharmaceutical, Food, Dehydrated Vegetables, Food, Minerals And Other Industries Powder, Granular Materials, Dry, Cooling And Other Operations |
| Warranty: | 1 Year | Condition: | New |
| Voltage: | 220v-450v | Type: | Fluid Bed Drying Equipment |
| High Light: | 220V Vibrating Fluidized Bed Dryer,6*0.6m Vibrating Fluidized Bed Dryer,Sodium Glutamate Tunnel Drying Machine |
||

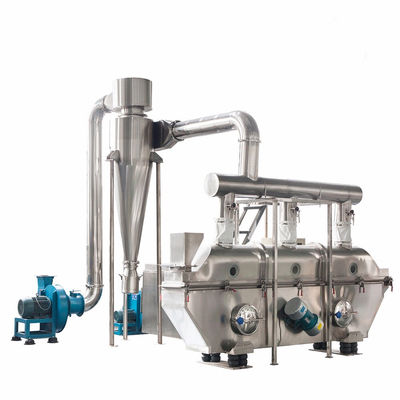

Energy saving sodium glutamate vibrating fluidized bed dryer tunnel drying machine

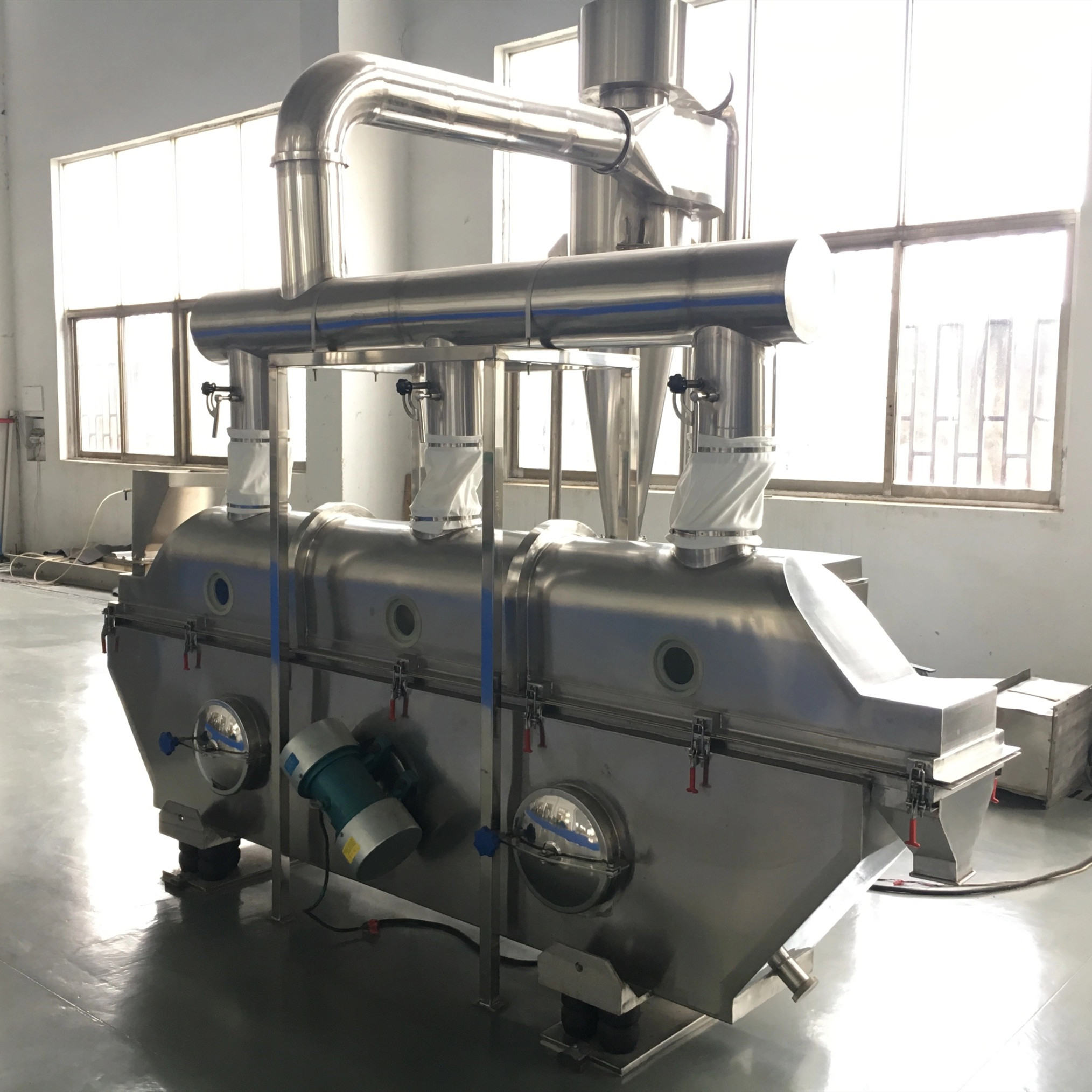

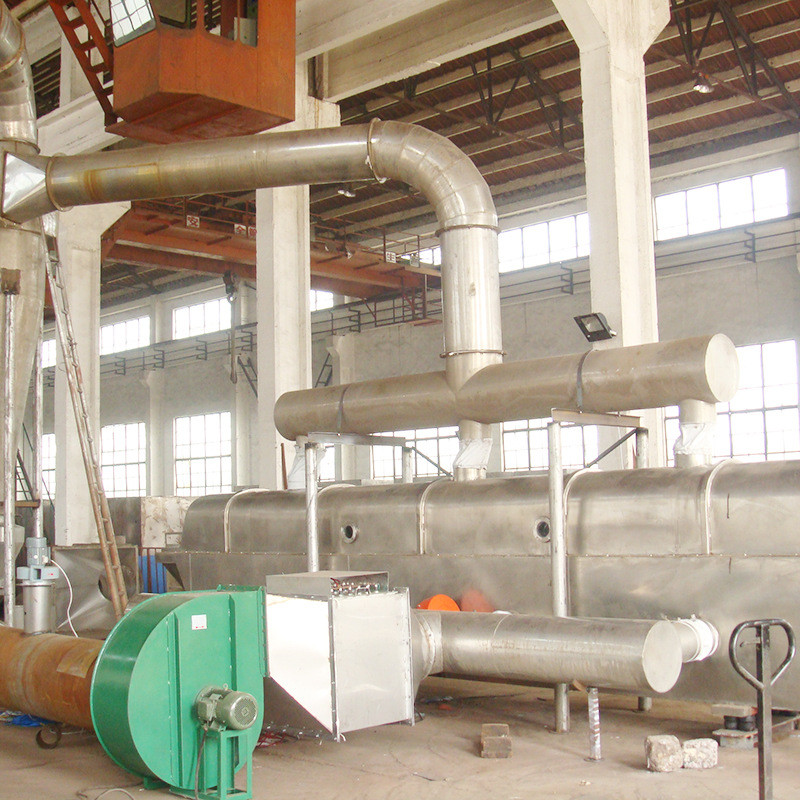

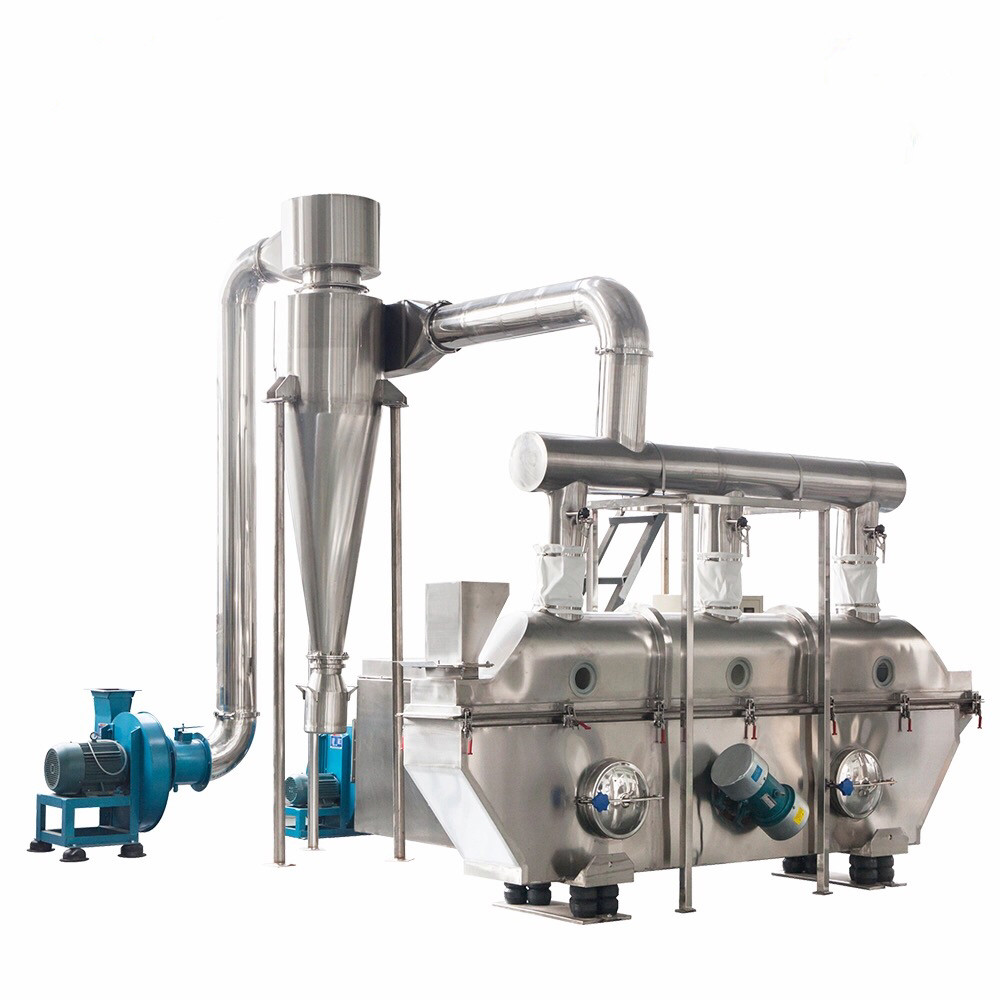

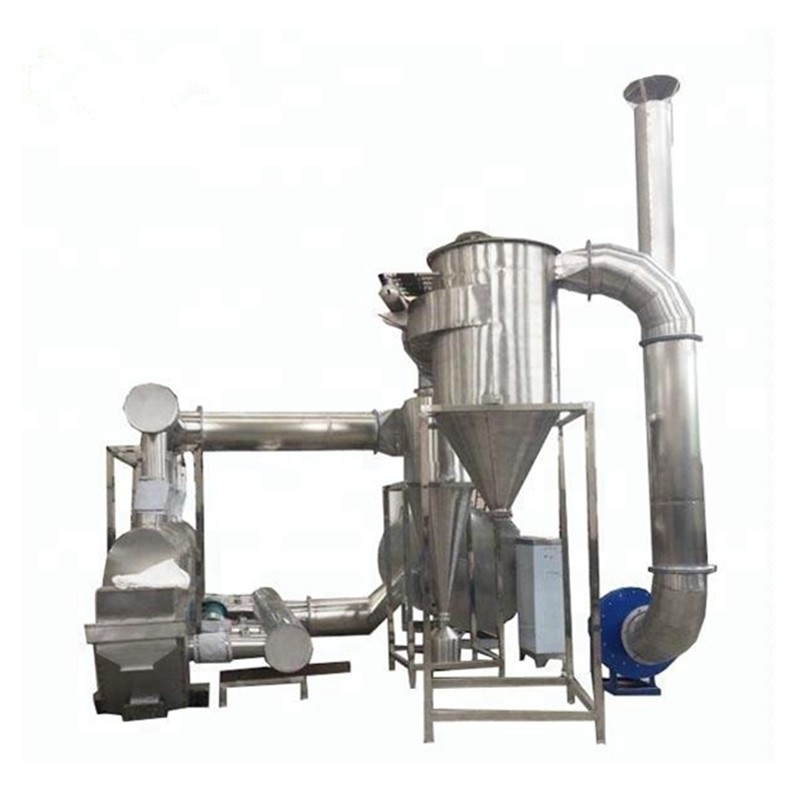

Vibrating Fluidized Bed Dryer
Product Description
The drier is suitablity in chemical industry,light industry, pharmaceutical, food, plastic, oil, slang, salt, sugarand so on, for drying, cooling and weting.
Advantages
The vibration is created by motorl is stable in operation and convenient in maintenance, low noise and long life.
1.High effection,raw material is heates evenly and heated evenly and heat exdhange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
2.It is good in regulation and wide in suitablity. Tje thickness of raw material layer and movable speed inside the maching and the amolitude can be adjusted through continous variable speed.
3. It is small for danaging the are surface of raw material. Theequipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have anomaly shape.
4. A fully enclosed structure, effectively prevent the material and the air space between the cross infection of the working environment clean.
5. You can string multi-srt to raseed capacity of raw materials, such as polyacrylamide.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
Features
1. The material is heated evenly, the heat exchange is sufficient, the drying intensity is high, and the energy saving is about 30% compared with the ordinary dryer.
2. The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long service life.
3. The fluidization is stable, and there is no dead angle and blow-through phenomenon.
4. Good adjustability, adaptable to face width.
5. It has little damage to the surface of the material, and can be used for drying of fragile materials. It does not affect the working effect when the material particles are irregular.
6. The fully enclosed structure effectively prevents cross-contamination between materials and air, and the working environment is clean.
