Product Details:
|
Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
---|---|---|---|
Product Name: | Hot Air Drying Oven | Type: | Drying Oven |
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Material: | Stainless Steel | Color: | Silver |
High Light: | Large Capacity Hot Air Circulation Oven,Hot Air Peach Herb Circulation Oven,Tomato Cardamom Hot Air Circulation Oven |

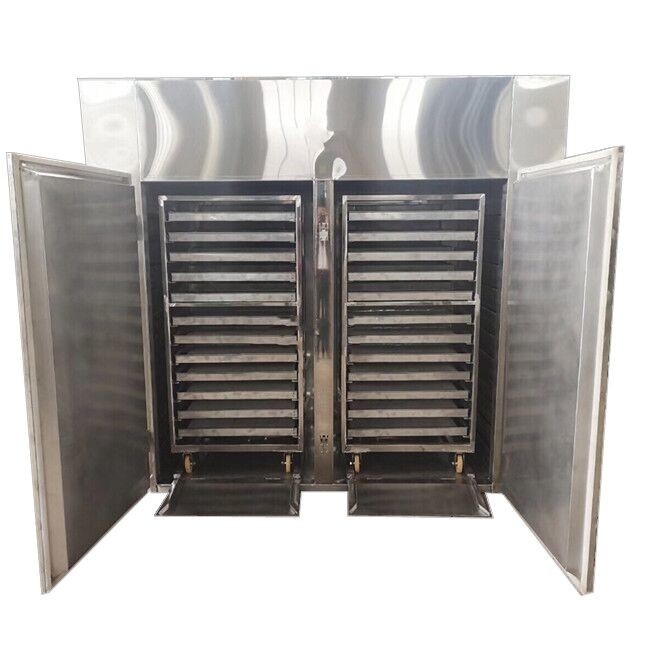

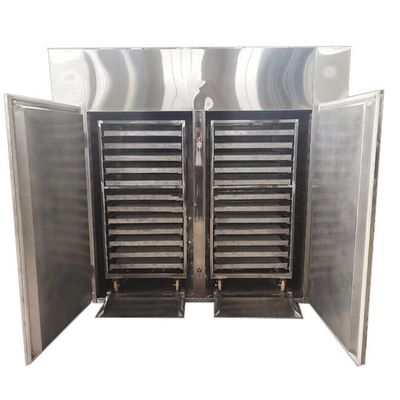

New Design Customized Large Capacity Peach Herb Tomato Cardamom Hot Air Circulation Oven
Hot Air Oven Dryer
Internal structure

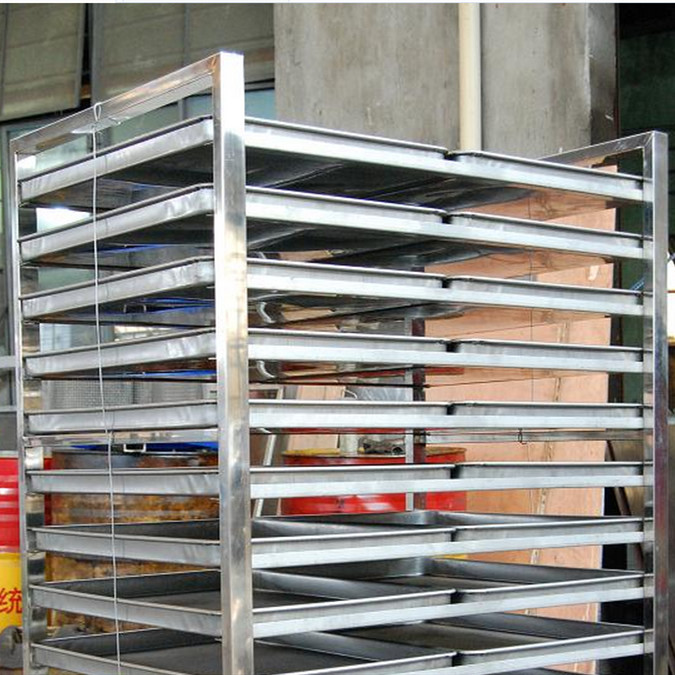

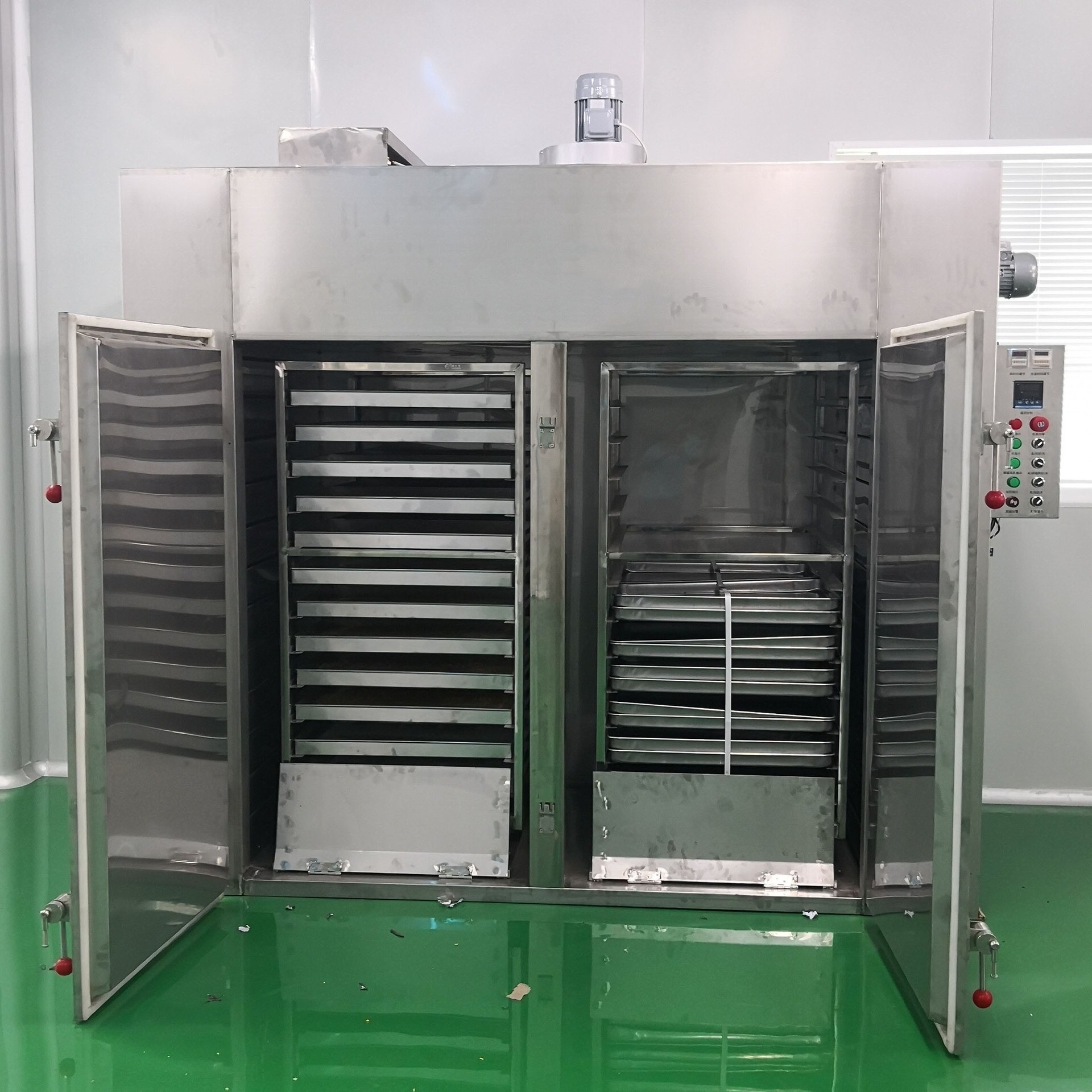

CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are placed on top of each other in trolleys.
In drying process, fresh cold air is sucked into the drying chamber by the circulation fan and flows through the steam radiator or electrical heating tubes installed at the top to get required temperature. With the help of air distributor, the hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to the circulation fan for next drying circulation while part of the damp air is exhausted for energy saving. The drying process is batch type. When the drying is finished, open the chamber door and pull out the trolleys for unload the dried product.
Technical parameters
Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Machine introduction:
1.The heat source includes steam, heat transfer oil, electric heating tube, far infrared tube, etc., for customers to choose.
2.Temperature range: steam heating 50-100℃, electric heating normal temperature to 100℃ (over 100℃ is non-standard
High temperature oven needs to be customized, far infrared heating 50-350℃.
3.Automatic control system and computer control system are available for users to choose.
4.The usual steam pressure is 0.02-0.8Mpa.
5. Equipped with electric heating, 12kw calculated according to type I, practical 5-8kw per hour.
6. Please contact customer service before placing an order. Special requirements must be stated when ordering.
7.The price of non-standard oven is negotiable.
8.The operating temperature is greater than 100°C or less than 60°C, please specify when ordering.
9.The size of the baking trays of the factory's ovens is uniform, interchangeable, and supports non-standard customization.
10.Baking tray size: 460*640*45 mm, there are many styles to choose from.
The WKS hot air circulation oven is specially designed for industrialized mass production. The pharmaceutical industry is widely used in the drying of raw materials, Chinese herbal medicines, extracts, powders, granules, granules, water pills, packaging bottles and other materials. It is also suitable for drying in many industries such as dehydrated vegetables, feed, MSG seasoning, chemical pigments, rubber, fiber, electronic components, new materials, and food.
Packaging & Delivery
Packaging Details
Big capacity 40 trays Stainless steel Coffee beans drying machine, meat drying machine: Standard export polywood case package
Port
shanghai,qingdao,tianjin,guangzhou etc. any port in China
