Product Details:
|
| Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
|---|---|---|---|
| Product Name: | Hot Air Drying Oven | Type: | Drying Oven |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Material: | Stainless Steel | Color: | Silver |
| High Light: | PLC 4 Rack Pharmaceutical Drying Oven,30KW pharmaceutical drying oven,WKS Machine To Make Dried Fruit |
||

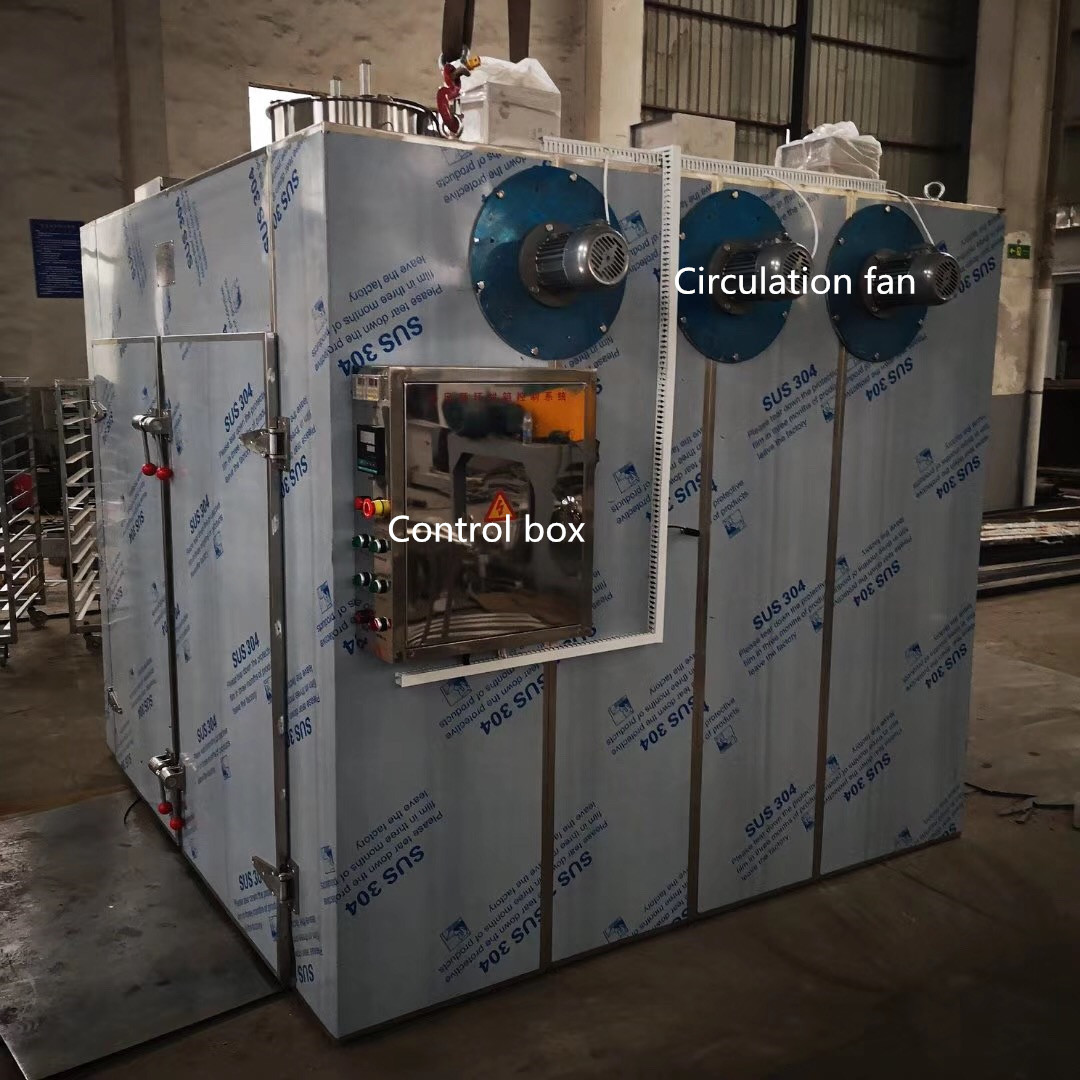

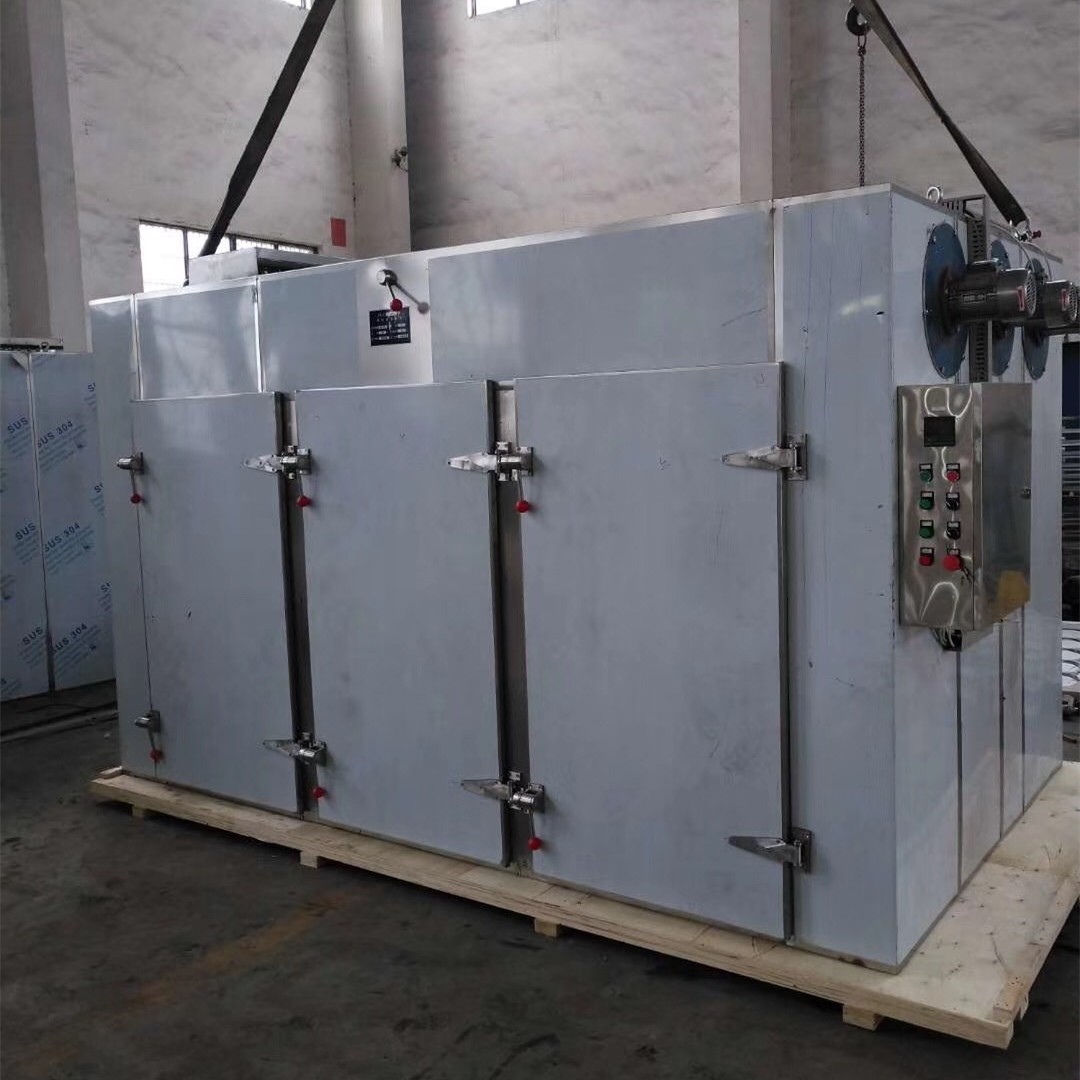

Hot Air Circulating Industrial Dryer for Light Heavy Industrial Material Drying Machine
Hot Air Oven Dryer
Product Introduction

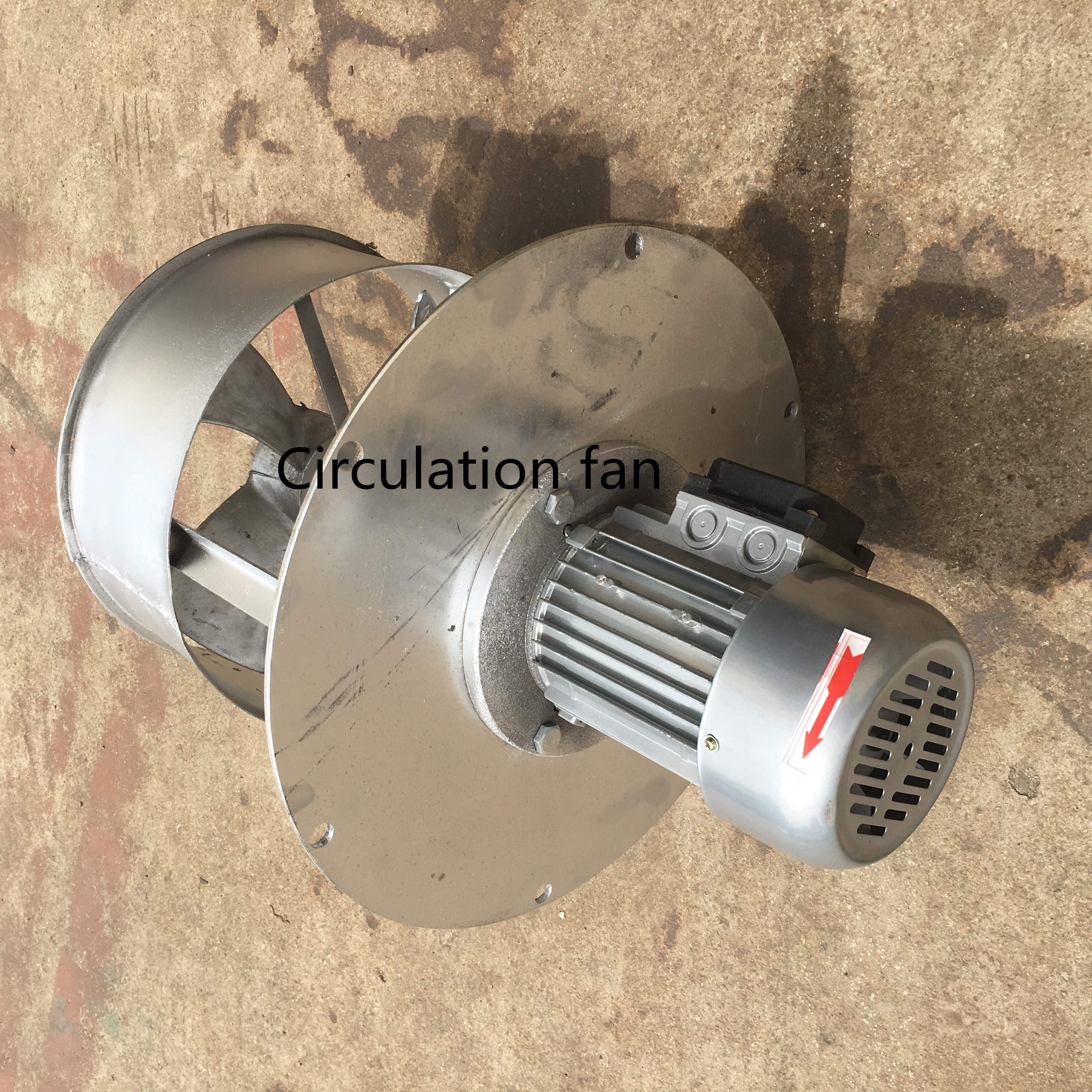

Hot air circulating drying oven applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one, the highest heat efficiency can reach 50%. WKS series special drying oven adopts the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as heating source and adopts convective heat transfer method to heat the air by axial flow fan and heat exchanger . Fresh air from the air inlet supplement, waste damp is out from the dehumidification system. Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.
Technical parameters
|
MODEL |
ELECTRIC POWER |
FAN POWER |

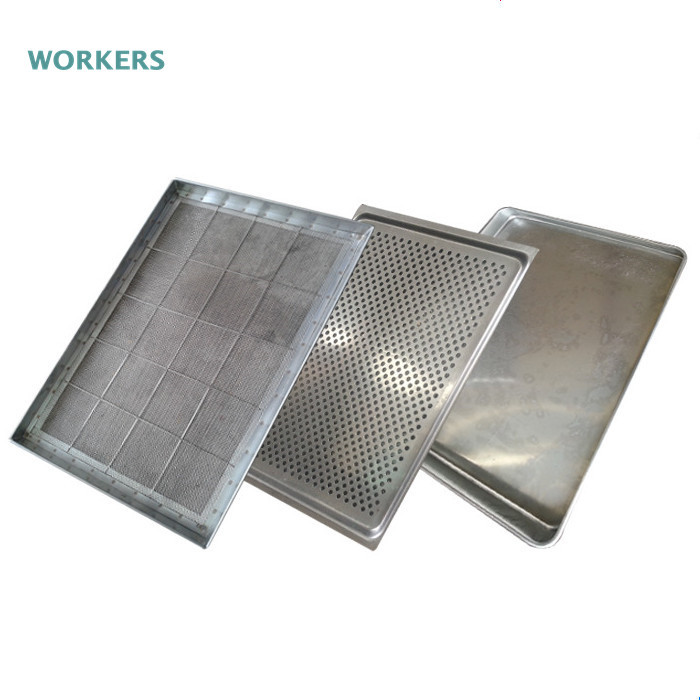

TRAY |
TRAY AND RACK |

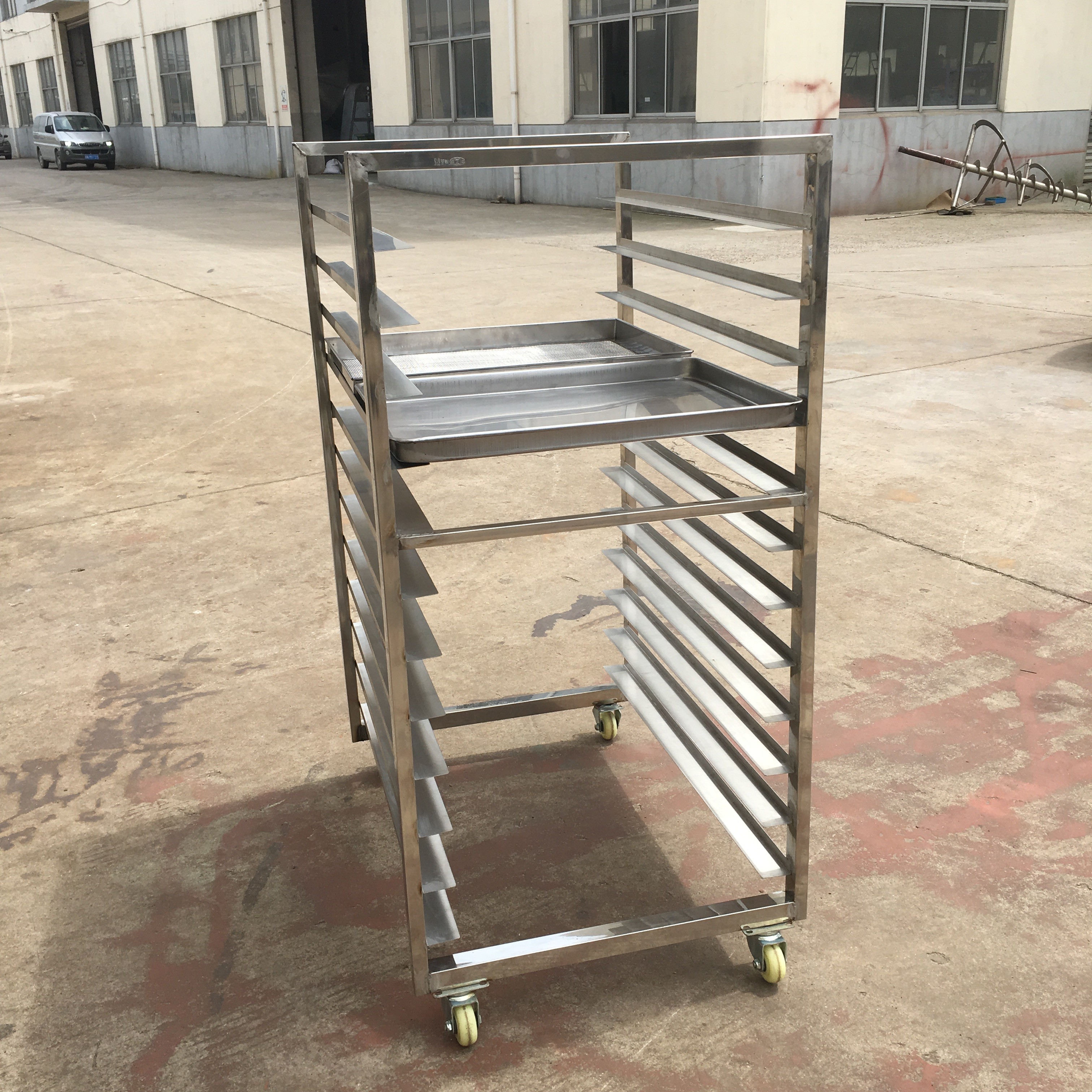

RACK |
DIMENSION |
WEIGHT |
MATERIAL |
|
WKS-1 |
6~9 |
0.45 |
24 |
640*460*45 |
1 |
1400*1200*2000 |
400 |
304 stainless steel |
|
WKS-2 |
9~15 |
0.45 |
48 |
2 |
2300*1200*2000 |
600 |
||
|
WKS-3 |
15~30 |
0.9 |
96 |
4 |
2300*2200*2000 |
900 |
||
|
WKS-4 |
15~45 |
1.35 |
144 |
6 |
3660*2300*2000 |
1500 |
||
|
WKS-5 |
15~60 |
1.8 |
192 |
8 |
5000*2250*2100 |
2000 |
||
|
The heat source can be electricity, gas, steam, thermal oil, etc. |
||||||||
Important parts of wks-3
Board
- Double-sided stainless steel plate
- Reinforced rib
- Insulation rock wool with thickness of 80mm
- Resistant to 150 ℃
- Closed cabinet
Control cabinet
- Push-button electric control cabinet -304 stainless steel control cabinet -CHINT Electric Components -Temperature Controller -Customizable control panel language
- PLC control system provided
Q&A
Q1. Are you a manufacturer or a distributor?
A: we are committed to the research, manufacturing, and sales of various industrial drying machines, a professional Dryer/Grinder/Blender/Granulator/Packaging Machine/Food Machine manufacturer , We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences.
Q2. Is the machine installation complicated?
A: The equipment is very easy to install, and we will provide instructions for installation and operation
Q3. What are the after-sales service?
A: We provide a 1-year warranty for the whole machine
and a 10-year warranty for the compressor.
Q4: How long does it take to ship?
A: For conventional equipment, the lead time is 3-7days.
Customized funds and delivery time need to be negotiated again.
