Product Details:
|
| Name: | Hot Air Oven Dryer | Usage: | Reduce Material's Moisture |
|---|---|---|---|
| Product Name: | Hot Air Drying Oven | Type: | Drying Oven |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Material: | Stainless Steel | Color: | Silver |
| High Light: | Ginger Pieces Hot Air Oven Dryer,30KW Hot Air Oven Dryer,15KW fruit and vegetable dryer machine |
||
High Effect Hot Air Circulation Drying Oven for Ginger Pieces Vegetables Tray Dryer

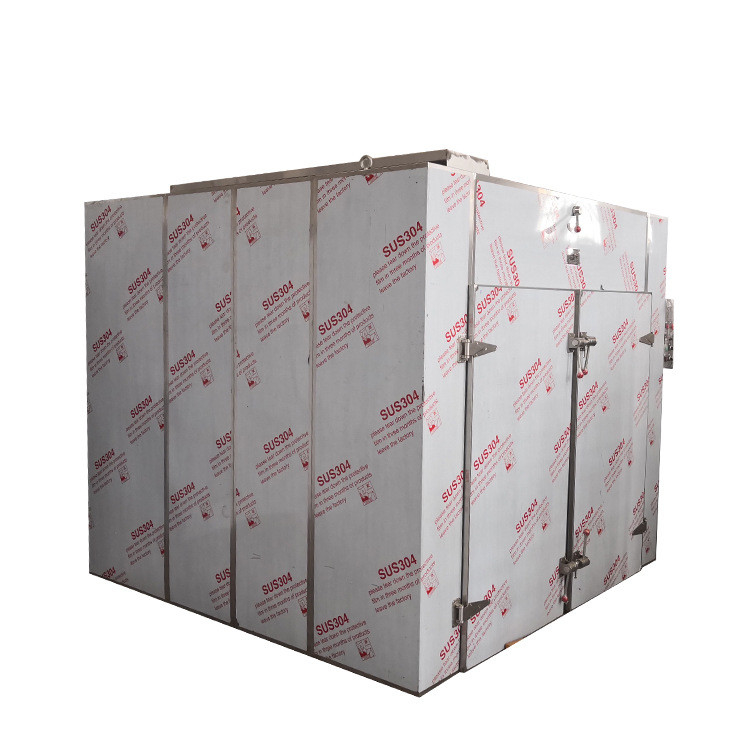

Hot Air Oven Dryer
Product Introduction

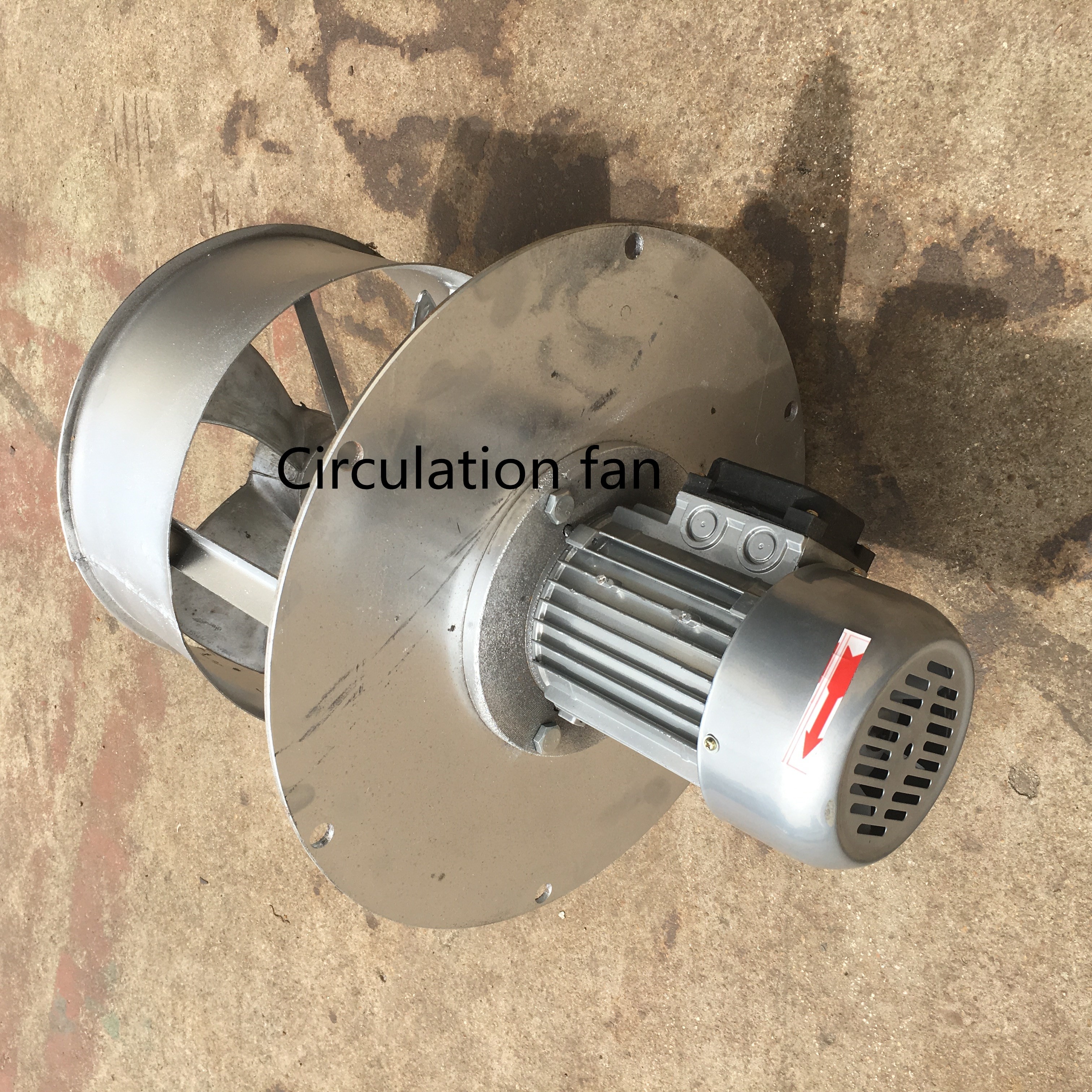

Hot air circulating drying oven applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one, the highest heat efficiency can reach 50%. WKS series special drying oven adopts the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as heating source and adopts convective heat transfer method to heat the air by axial flow fan and heat exchanger . Fresh air from the air inlet supplement, waste damp is out from the dehumidification system. Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Important Parts of WKS-3

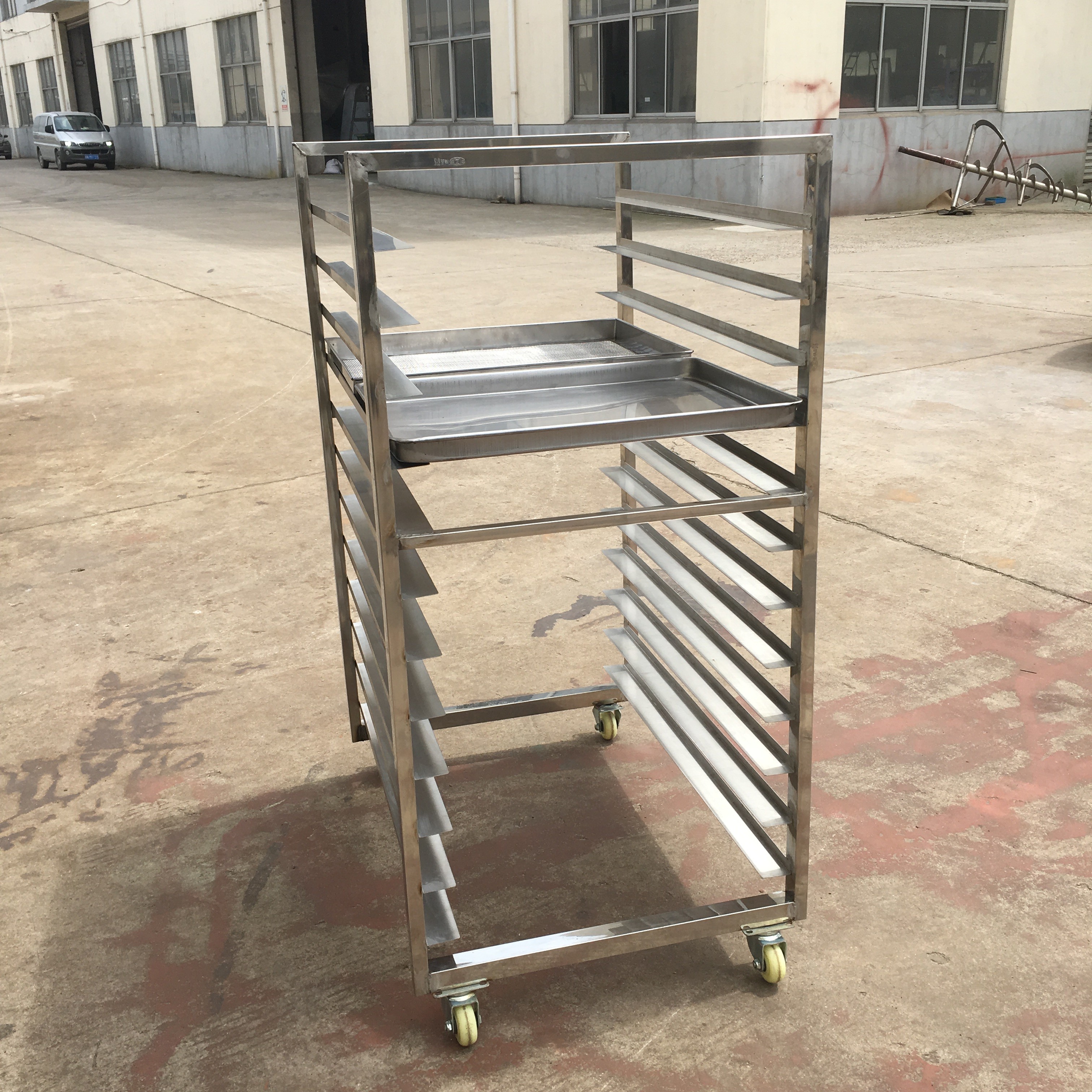

Trolley
- Made of 304 stainless steel
- Dimensions: 750*900*1300mmm
- Shelf number: 12 shelves
- Shelf spacing:100mm
- Customized

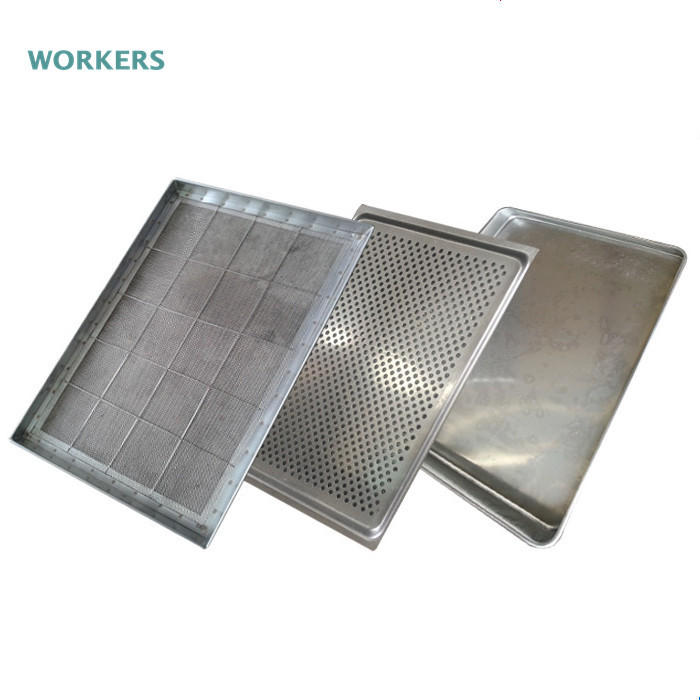

Tray
- Made of 304 stainless steel
- Dimensions: 460*640*45mm
- Loading capacity: 2-5kg/pcs
- Three specifications tray to choose from
- mesh tray
- solid flat tray
- perforated tray
Internal structure
In order to ensure uniform temperature in the oven, there are hot air circulation ducts of 300-500mm on the left and right sides and the top of the oven. The air ducts on the left and right sides are provided with adjustable air distribution plates, and the height of the hot air outlet can be manually adjusted to ensure that the hot air flows in parallel in the oven. There is a temperature detection head inside the oven and it is connected to the control system.
Q&A
Q: What information should be provided in order to get a proposal or quotation? A: Our drying oven can be customerized. Before we can provide you with detailed quotation, we have to know the following information: 1) What are you going to dry? 2) Moisture content of before drying and dried product 3) Process capacity in kg/batch 4) What heat source you plan to use?electric, gas or other? Q: How the dryer will be delivered ? A: The drying oven is packed in wood box for shipping
Packaging
wooden case (fumigation free) or as per customers' requirements Shipping: within 5 to 7 working days after receiving the balance payment
